1.6mm TIG Gas Lens Collet Body SUPER STUBBY KIT WP17|18|26
$43.99
Product Description
Make your TIG torch shorter and narrower for hard-to-reach positions with this Super Stubby Kit. Compatible with WP17|18|26 torches, it allows using shorter 9 and 20 series consumables (2/3 size of 17/18/26 series) for enhanced access. Great savings vs buying individual parts (over $110 value).
Key Specifications
| Torch Compatibility | WP17, WP18, WP26 |
| Collet Size | 1.6mm (10N23S) |
| Collet Body | 17CB20 (2 included) |
| Insulators | 18CG20 (2 included) |
| Cup Sizes | #4-#9 (2 each: 13N08-13N13) |
1.6mm TIG Gas Lens Collet Body SUPER STUBBY KIT – WP17|18|26: Reach Tight Spaces with Precision
Tired of struggling with bulky TIG torches in hard-to-reach welds? Our 1.6mm SUPER STUBBY KIT transforms your WP17, WP18, or WP26 torch into a compact powerhouse, letting you tackle narrow joints and tight angles with ease. Save over $30 compared to buying parts individually¡ªget professional-grade performance at unbeatable value.
Kit Components & Core Benefits
| Component | Description | CoreÂôµã |
|---|---|---|

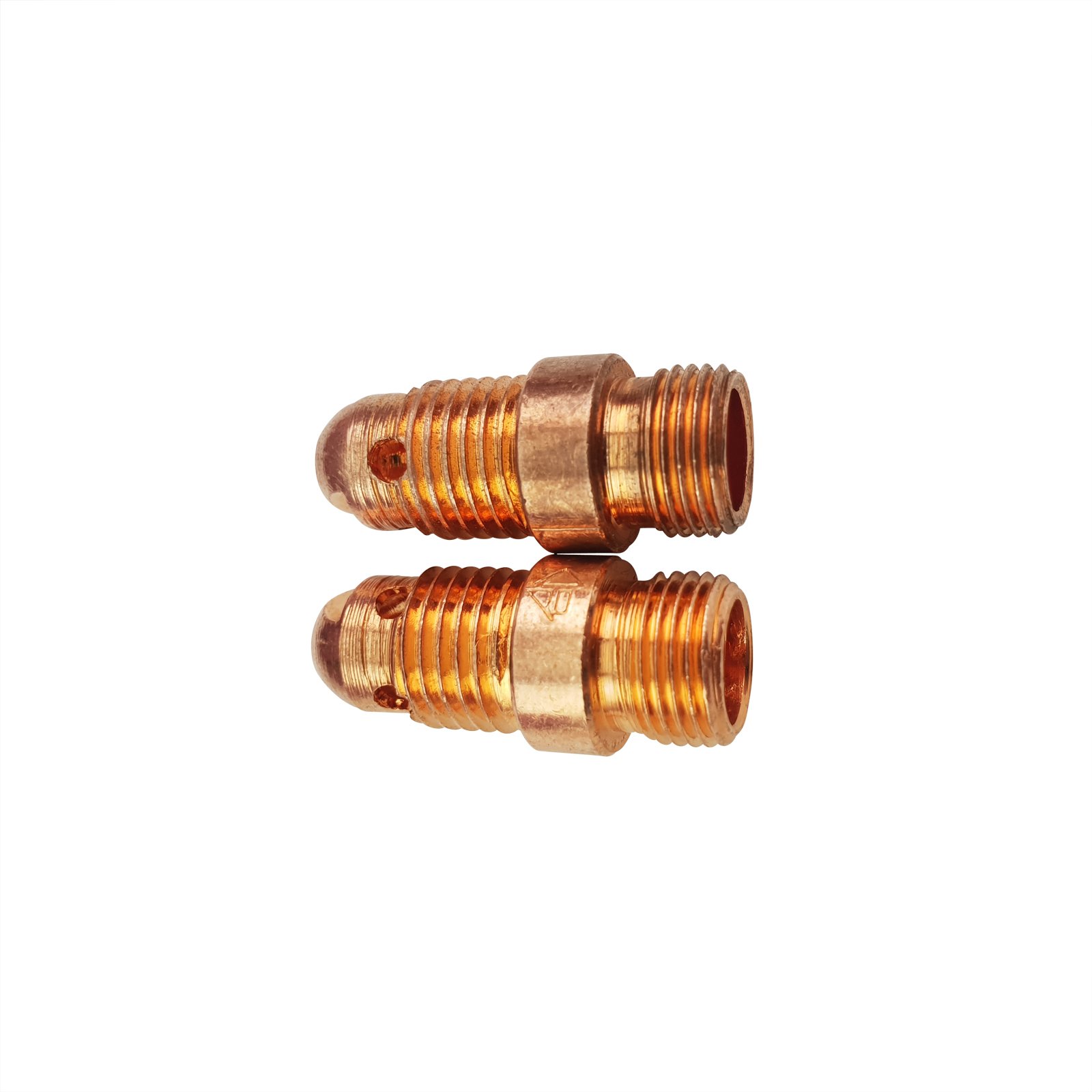

| 2 x 17CB20 Collet Body | Shortened design for torch compactness | Fits 9/20 series consumables (2/3 smaller than standard 17/18/26 series) |

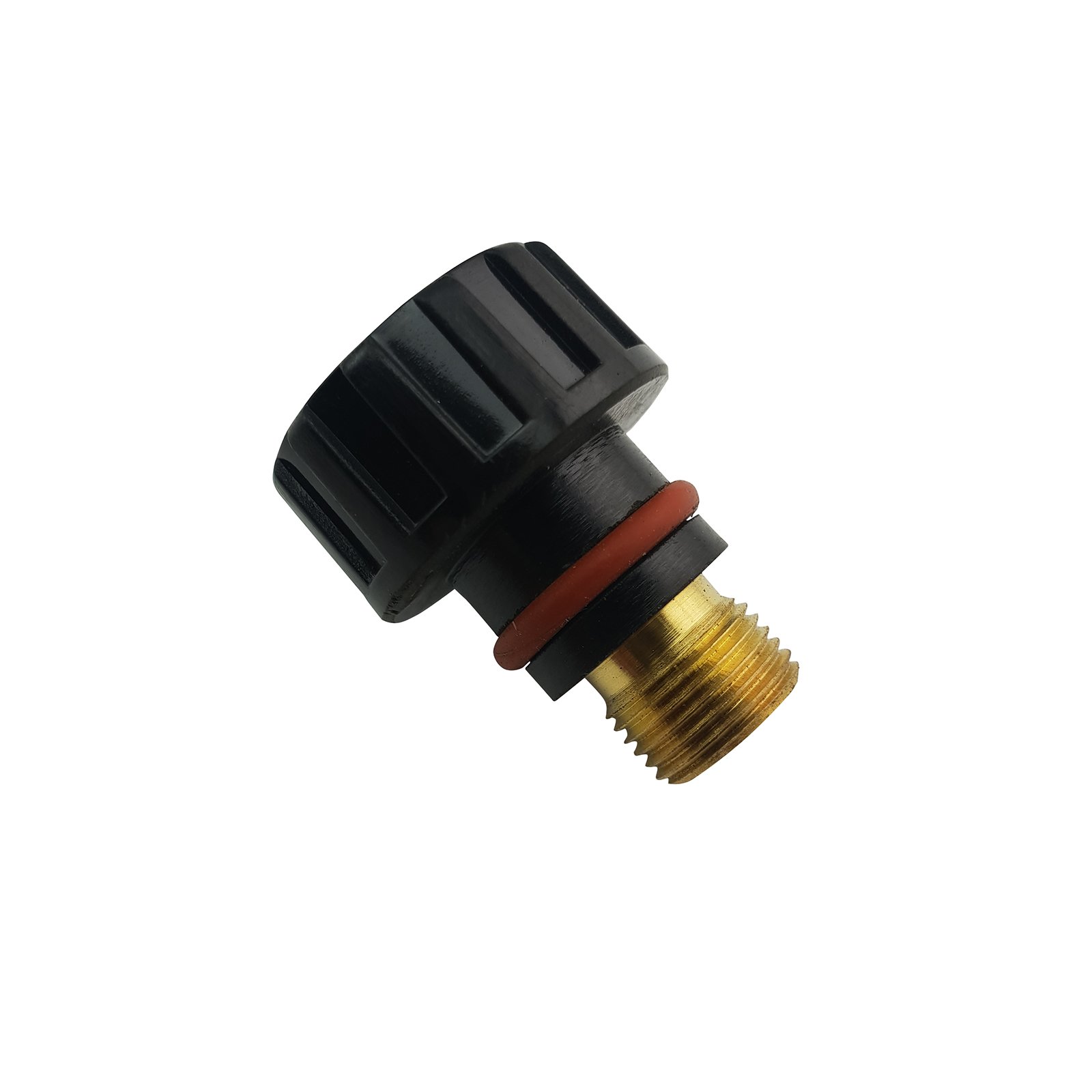

| 2 x 18CG20 Insulators | Heat-resistant torch insulation | Durable protection for extended use |

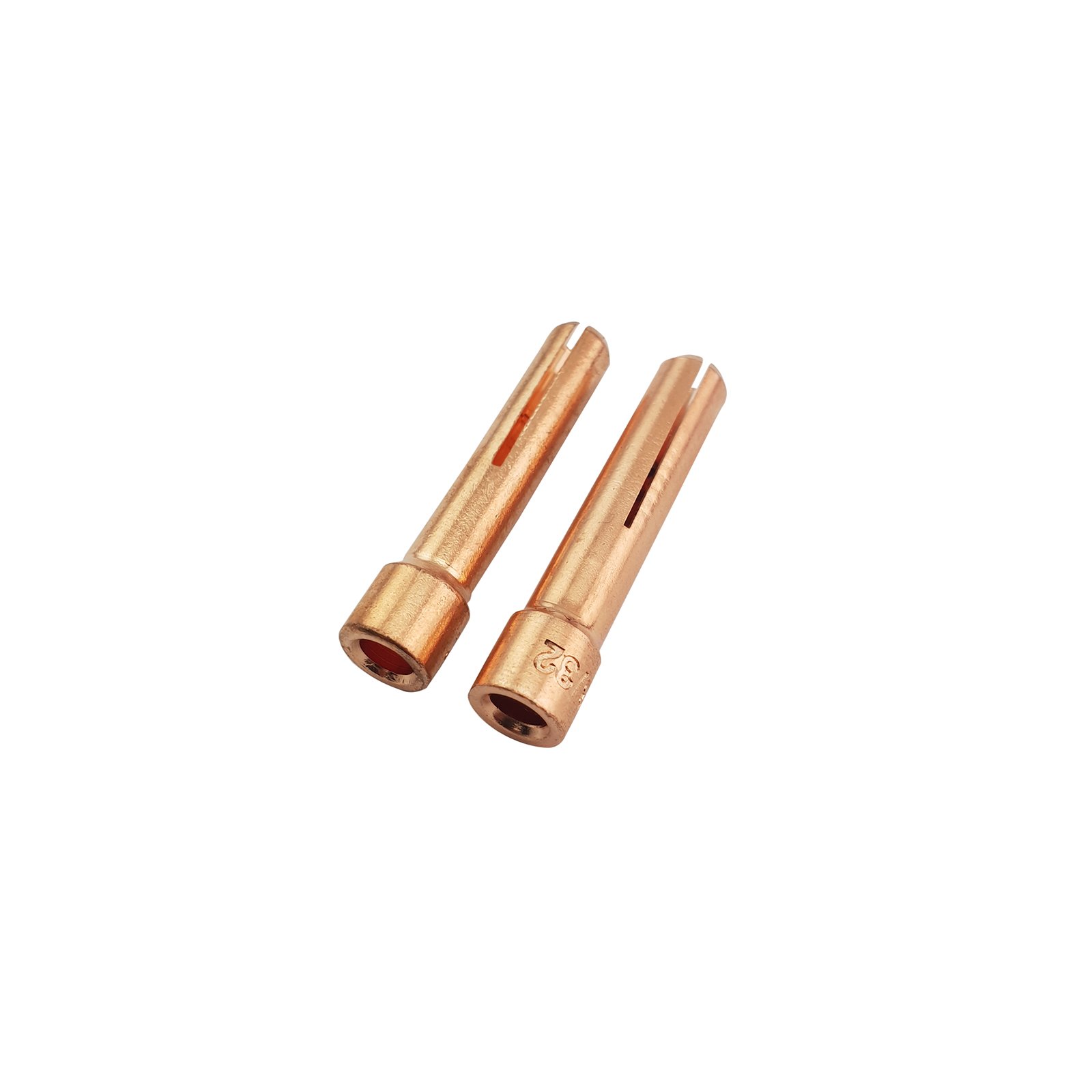

| 2 x 10N23S 1.6mm Collets | Precision 1.6mm tungsten gripping | Secure tungsten hold for stable arc performance |

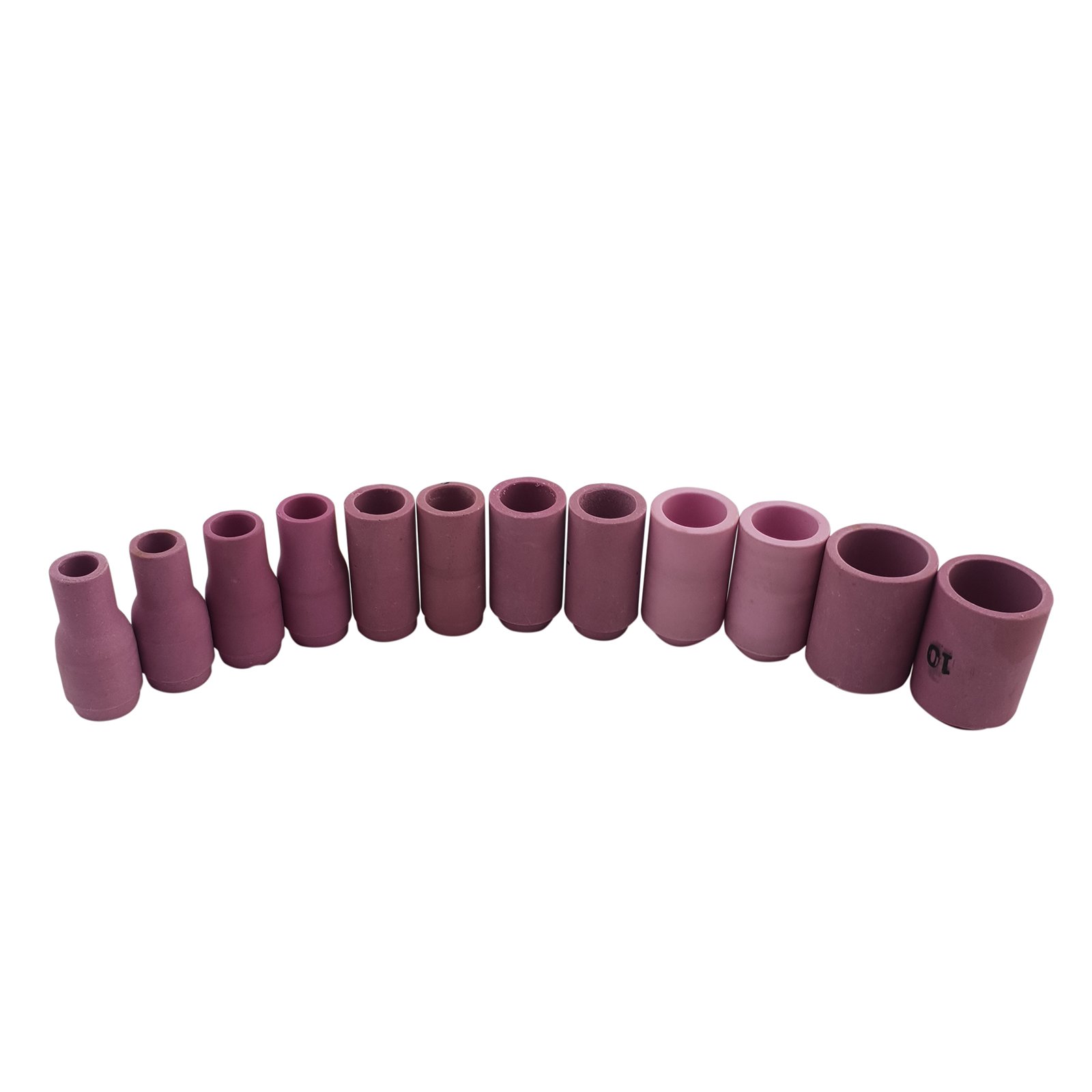

| 2 x 13N08 #4 Cups | Small-diameter gas cup | Ideal for tight access welding |
| 2 x 13N09 #5 Cups | Medium gas coverage | Balanced protection for general applications |
| 2 x 13N10 #6 Cups | Standard gas cup size | Versatile for most welding tasks |
| 2 x 13N11 #7 Cups | Enhanced gas shielding | Improved coverage for larger weld pools |
| 2 x 13N12 #8 Cups | Wide-diameter protection | Optimal for high-heat or outdoor welding |
| 2 x 13N13 #9 Cups | Maximum gas coverage | Superior shielding for critical welds |
Product Specifications
- Compatibility: WP17, WP18, WP26 TIG torches
- Collet Size: 1.6mm (0.063″)
- Consumable Series: 9 & 20 series (compatible with shorter, narrower parts)
- Kit Contents: 16 pieces (collet bodies, insulators, collets, cups #4-#9)
- Material: High-grade copper & heat-resistant ceramics
Applications & Performance
Perfect for automotive chassis, pipe fittings, aerospace components, and any project with confined spaces. The shortened torch design reduces fatigue while improving maneuverability. Experience stable arc starts, consistent gas shielding, and precise heat control¡ªeven in the trickiest positions.
Why Choose Our Stubby Kit?
- Cost-Effective: $30+ savings vs. individual parts
- Space-Saving: 33% smaller consumables than standard series
- Versatile: 6 cup sizes for diverse welding needs
- Durable: Industrial-grade materials for long service life
FAQ
Q: Will this fit my WP20 torch?
A: No, this kit is designed for WP17, WP18, and WP26 torches only.
Q: Can I use 2.4mm tungsten with this kit?
A: No, this kit includes 1.6mm collets; 2.4mm requires a different collet size.
Q: Are the cups compatible with gas lens systems?
A: Yes, all cups work with standard gas lens setups for optimal shielding.
Quality Assurance
As a leading Chinese manufacturer, we adhere to strict ISO standards. Each component undergoes rigorous testing to ensure dimensional accuracy and heat resistance. Trust in our 10-year industry experience for reliable TIG welding solutions.
Ready to upgrade your TIG torch for tight-space welding? Contact us today for bulk pricing, technical support, or custom kit options. Let¡¯s boost your welding efficiency¡ªsend your inquiry now!
