10m 70mm2 00 Gauge Welding Cable Australian Made
$320.00
Product Introduction

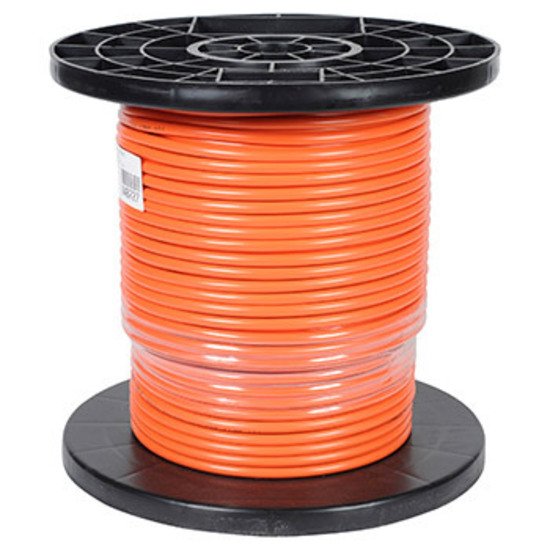

Australian made 10m welding cable with 70mm2 (00 Gauge) oxygen-free copper conductors. Double insulated NBR/NBR to V90HT, soft, flexible, compliant to AS1995:2003, ideal for welding applications.
Specifications
| Length | 10m |
| Cross-Section | 70mm2 (00 Gauge AWG/B&S) |
| Max Current | 655 Amp (30% Duty Cycle) |
| Material | 100% Oxygen Free Copper |
| Insulation | Double Insulated NBR/NBR (90oC rated) |
10m Welding Cable – 70mm2 – 00 Gauge – Australian Made for Superior Welding Performance
Core Specifications
| Description | 10m double-insulated welding cable with 70mm2 cross-section |
| AWG/B&S Gauge | 00 Gauge |
| Max Current (30% Duty Cycle) | 655 Amp |
| Conductor Material | 100% Oxygen-Free Copper |
| Insulation | Double NBR/NBR, V90HT (90oC rated) |
| Flexibility | Extra fine copper strands for enhanced flexibility |
| Compliance | AS1995:2003 standard |
| Origin | Australian Made |
| Color | Orange |
| Length | 10m (supplied as single continuous length) |
Why Choose This Welding Cable?
Engineered for professionals, this Australian-made welding cable delivers unmatched performance in demanding environments. The high-purity oxygen-free copper conductors ensure minimal voltage drop, while the double NBR insulation provides superior heat and abrasion resistance. Its exceptional flexibility allows easy maneuvering around workspaces, reducing operator fatigue during extended use.
Applications
Ideal for MIG, TIG, and arc welding applications in automotive repair, industrial manufacturing, solar power systems, and battery connections. Perfect for both workshop and field operations where reliability and durability are critical.
Performance Highlights
– Withstands extreme temperatures up to 90oC
– Maintains conductivity under heavy current loads
– Resistant to oils, chemicals, and mechanical stress
– Meets Australian safety standards for welding equipment
Quality Assurance
Proudly made in Australia, this cable undergoes rigorous testing to ensure compliance with AS1995:2003. Each batch is inspected for conductor purity, insulation integrity, and flexibility, guaranteeing consistent performance and long service life.
Competitive Advantage
Unlike generic cables, our Powerflex design combines extra-fine copper strands with dual insulation, offering better flexibility and durability than standard single-insulated alternatives. Australian manufacturing ensures stricter quality control compared to imported products.
FAQ
Q: What duty cycles does this cable support?

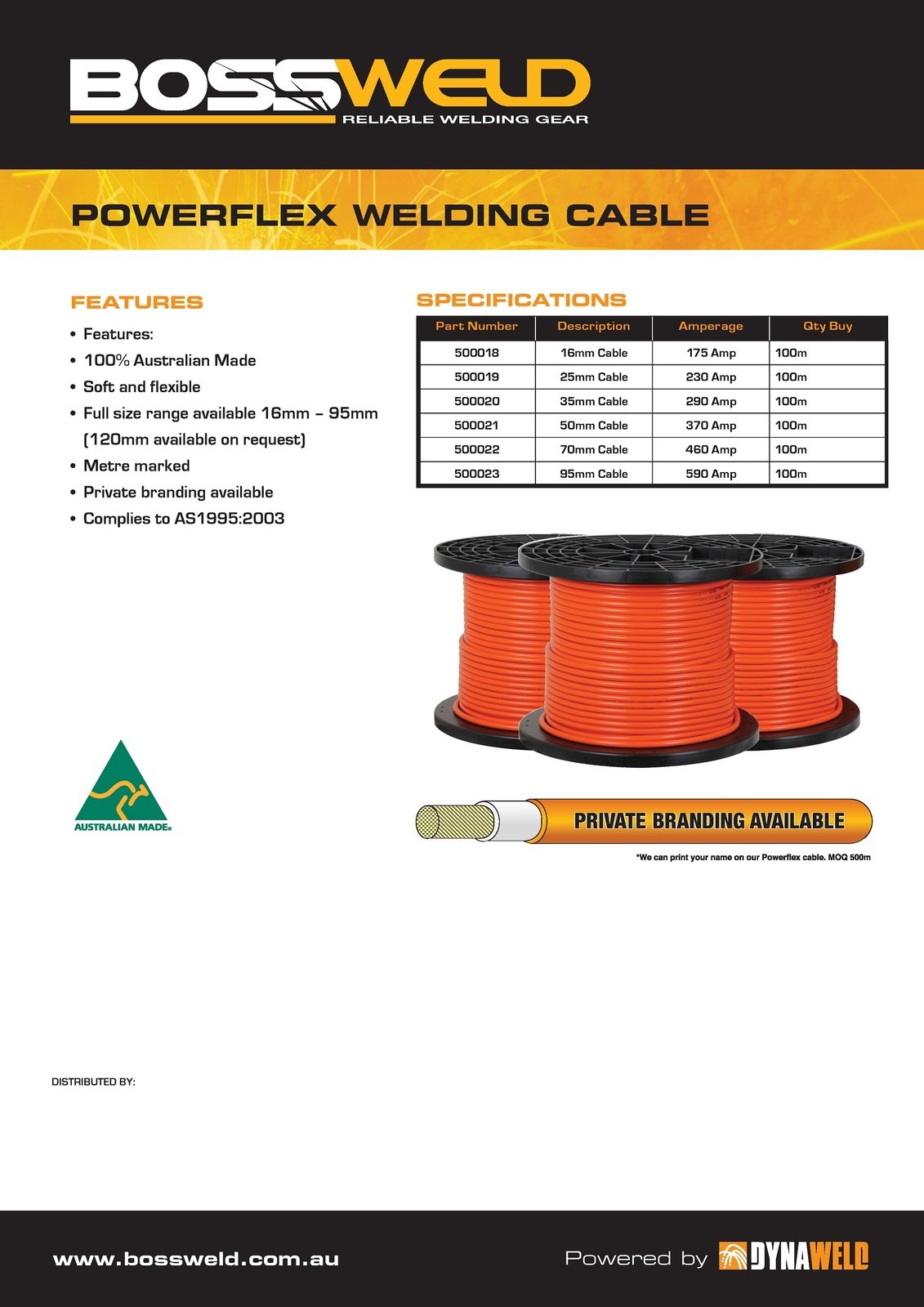

A: See product photos for detailed duty cycle specifications across different current levels.
Q: Is this cable compatible with UNIMIG equipment?
A: Yes, it is equivalent to UNIMIG part # WC70MM / U51029.
Q: Can it be used for DC battery connections?
A: Absolutely, its high conductivity makes it suitable for solar and car battery applications.
Ready to Upgrade Your Welding Setup?
Experience the reliability of Australian-made welding cable. Contact us today for bulk pricing, technical support, or custom length inquiries.
