10x Type 54 LPG Cutting Nozzle Size 4 40-50mm Cut
$159.00
Product Introduction
10-pack of 3-seat LPG cutting nozzles (Type 54, Size 4) for Quickie Gas cutting machines, ideal for industrial/daily use with 40-50mm cutting thickness, complying with AS 4603-1999 standards.
Specifications
| Cutting Thickness | 40-50mm |
| Gas Type | Oxygen & LPG |
| Operating Pressure (Fuel) | 30 kPa |
| Operating Pressure (Oxy) | 300 Pa |
| Pack Quantity | 10 Tips |

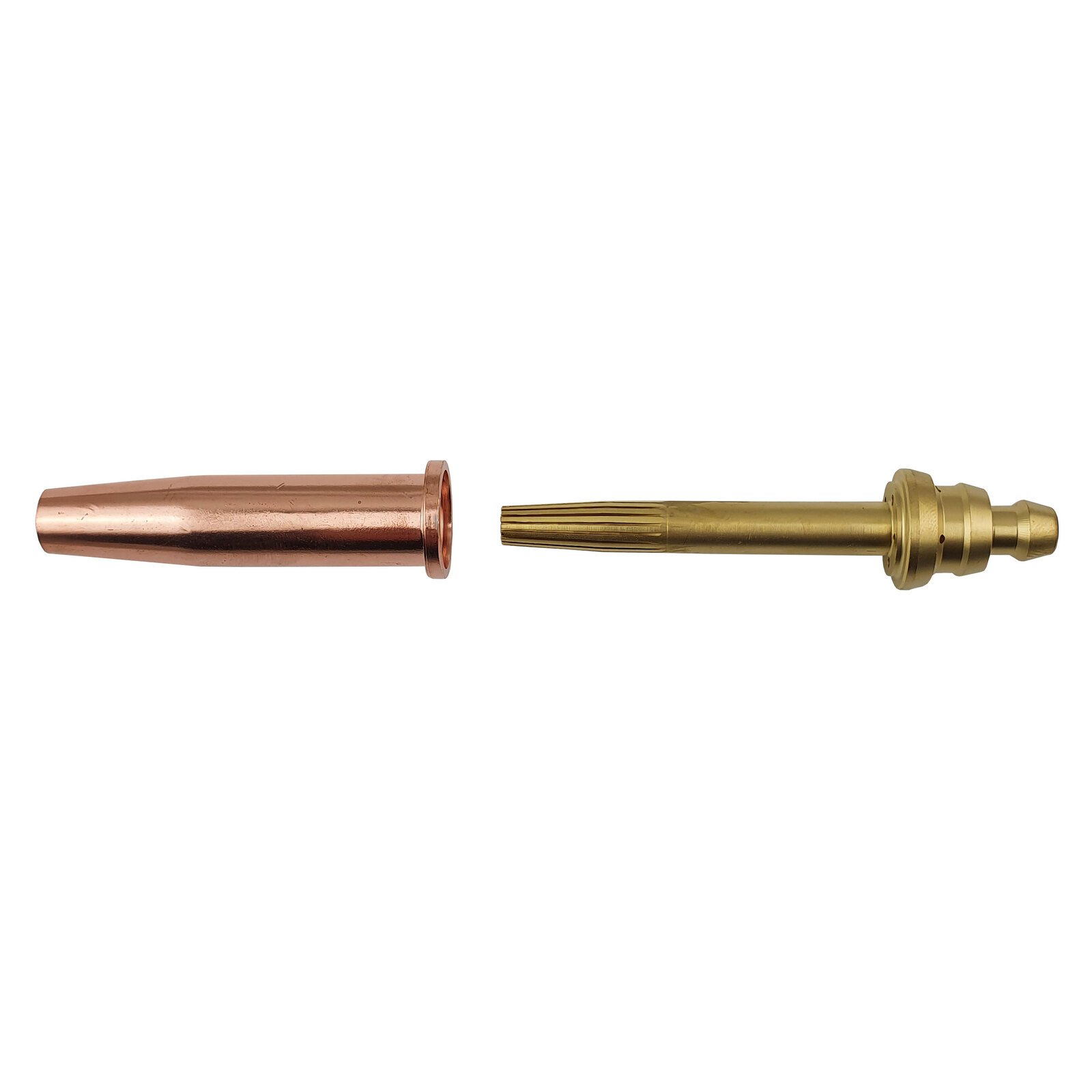

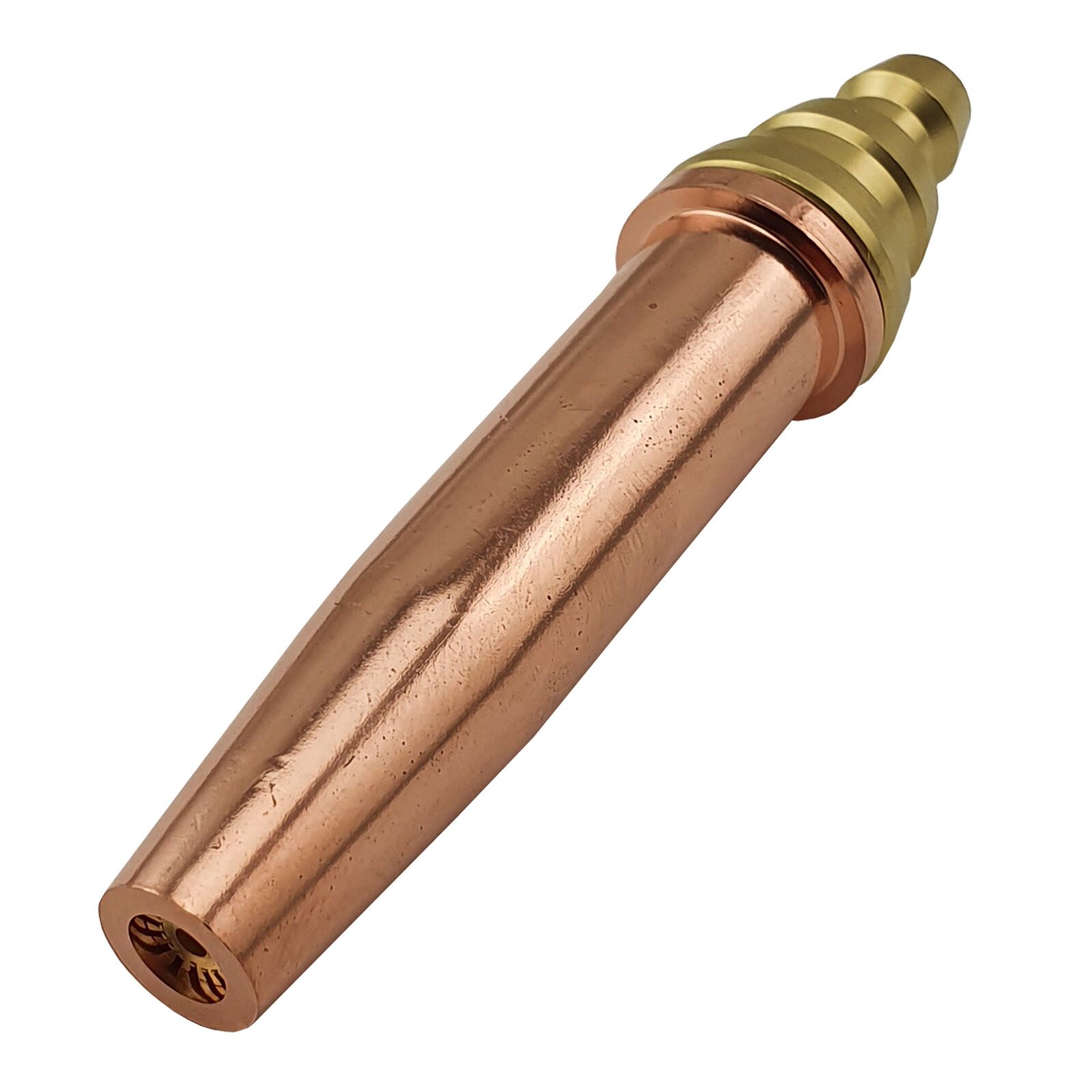

10x 3 Seat LPG Cutting Nozzle Tip Size 4 – Type 54 Cuts 40mm to 50mm
Product Overview
Engineered for precision in industrial cutting, these 3-seat LPG cutting nozzles deliver consistent performance for thicknesses between 40mm-50mm. Compatible with Quickie Gas cutting machines, they ensure efficient fuel consumption and compliance with strict safety standards, making them ideal for both daily operations and heavy-duty industrial use.
Core Specifications
| Cutting Thickness | 40mm – 50mm |
| Gas Type | Oxygen & LPG |
| Operating Pressure (Fuel) | 30 kPa |
| Operating Pressure (Oxy) | 300 Pa |
| Gas Consumption (Fuel) | <> 12 L/min |
| Gas Consumption (Oxy) | <> 43 L/min |
| Design | 3 Seat |
| Material | High Quality Raw Materials |
| Certification | AS 4603-1999 |
| Pack Quantity | 10 Tips |
Key Features
- 3-Seat Design: Ensures stable gas flow and precise flame control for clean cuts
- Industrial-Grade Durability: Made from premium materials to withstand high-temperature operations
- Standard Compliance: Meets AS 4603-1999 safety standards for reliable performance
- Cost-Efficient: Optimized gas consumption reduces operational costs
- Direct Replacements: Equivalent to CIG 306101 and BOC PNM 16 for seamless inventory integration
Applications
Perfect for metal fabrication, construction, shipbuilding, and automotive repair. Ideal for cutting mild steel and carbon steel in workshops, on-site construction, and manufacturing facilities where consistent 40-50mm cuts are required.
Performance Advantages
The 3-seat design minimizes backfire risks while delivering a concentrated flame, resulting in faster cutting speeds and reduced material waste. The high-quality construction ensures long service life even under continuous use, lowering replacement frequency.
Quality Assurance
Each nozzle undergoes rigorous testing to ensure dimensional accuracy and gas flow stability. Manufactured in ISO-certified facilities, our products adhere to strict quality control processes from raw material selection to final packaging.
FAQ
- Q: What machines are compatible with these nozzles?
A: Designed for Quickie Gas cutting machines and compatible with systems requiring CIG 306101 or BOC PNM 16 equivalents. - Q: Can these tips be used with other fuel gases?
A: No, they are specifically engineered for LPG and oxygen use only. - Q: What is the expected lifespan of each tip?
A: Under normal operating conditions, each tip provides 80-100 hours of use.
