1m 95mm2 000 Gauge Welding Cable Australian Made
$59.00
Product Description
Australian made 1m welding cable with 95mm2 (000 AWG) heavy duty oxygen free copper conductors. Double insulated NBR/NBR outer shell rated to 90oC, offering excellent flexibility and compliance with AS1995:2003 standards, ideal for welding applications.

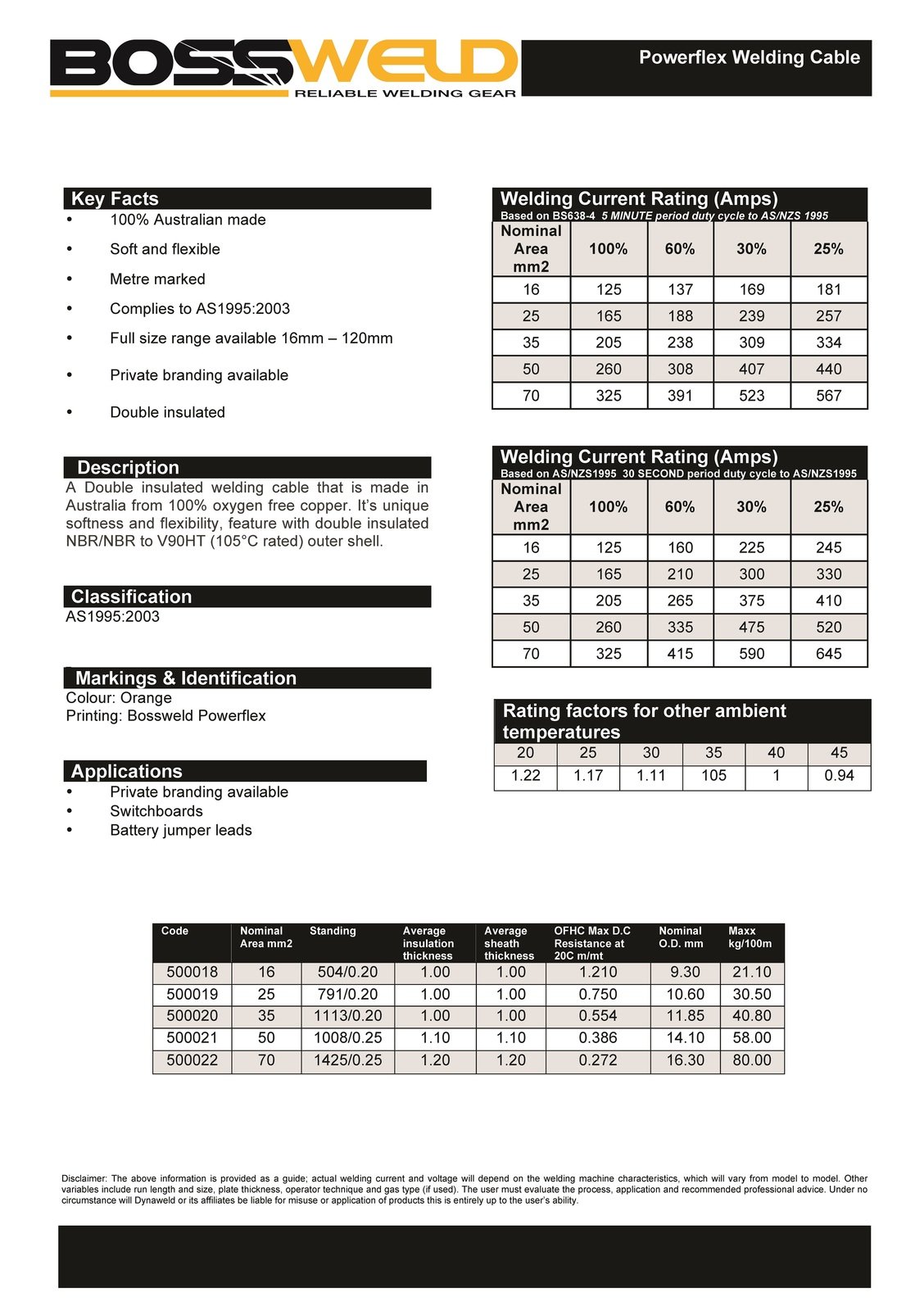

Technical Specifications
| Length | 1m |
| Cross Section | 95mm2 (000 AWG) |
| Max Current | 794A (30% Duty Cycle) |
| Insulation | Double NBR/NBR (90oC) |
| Standard | AS1995:2003 |
1m 95mm2 000 Gauge Australian Made Welding Cable – Premium Powerflex for Solar & Automotive Applications
Engineered for professionals demanding uncompromising performance, our Australian-made welding cable delivers superior conductivity and durability for critical welding operations. Whether powering solar systems, car batteries, or heavy-duty welding equipment, this cable sets the standard for reliability in demanding environments.
Core Specifications
| Description | 1m double-insulated welding cable |
| Conductor Size | 95mm2 (000 AWG/B&S) |
| Max Current (30% Duty Cycle) | 794 Amps |
| Material | 100% oxygen-free copper |
| Insulation | Double NBR/NBR, V90HT rated (90¡ãC) |
| Flexibility | Extra-fine copper strands for maximum bendability |
| Color | High-visibility orange |
| Standards | Complies with AS1995:2003 |
| Origin | Australian Made |
| UNIMIG Equivalent | WC95MM |
Key Performance Advantages
Our Powerflex cable combines military-grade conductivity with industrial durability. The oxygen-free copper core ensures minimal power loss, while the double NBR insulation resists oil, chemicals, and extreme temperatures¡ªideal for both workshop and field applications. Its exceptional flexibility reduces operator fatigue during extended use.
Applications
- Solar power systems
- Automotive battery connections
- Heavy-duty welding equipment
- Industrial manufacturing
- Marine and mining operations
Quality Assurance
Every cable undergoes rigorous testing to meet Australian safety standards. Our ISO-certified production process guarantees consistent performance, while the 100% copper construction ensures long-term reliability. Trust in a product built to withstand the harshest conditions.
Why Choose Our Cable?
Unlike generic imports, our Australian-made cable offers superior current handling (794A at 30% duty cycle) and temperature resistance. The extra-fine copper strands provide 30% greater flexibility than standard cables, making it perfect for tight spaces and frequent movement.
FAQ
Q: Can this cable be used for DC applications?
A: Yes, it¡¯s optimized for both AC and DC welding systems.
Q: What is the minimum bend radius?
A: 5x the cable diameter for safe installation.
Q: Is this suitable for outdoor use?
A: Yes, the V90HT insulation withstands UV exposure and weather elements.
Ready to upgrade your welding setup? Contact our technical team for bulk pricing, custom lengths, or application-specific recommendations. Experience the difference of Australian-engineered quality today.
