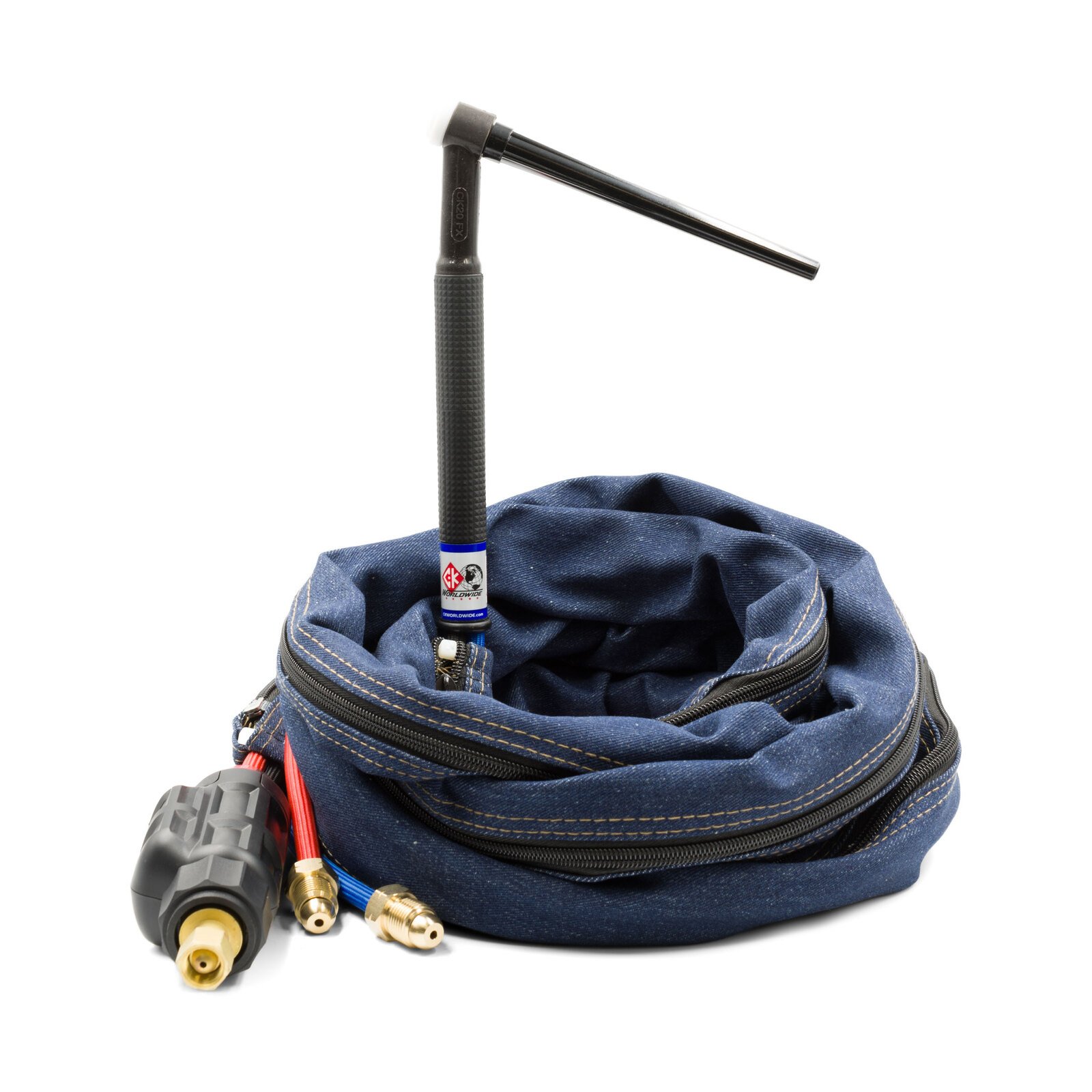

240V 9 Litre Water Cooler with 8m Kemppi TIG Torch 250A MasterTIG Package Deal
$1,499.00
Suits Kemppi TIG Machines 6162300AU and P0674
Features (Kemppi Torch)
This Torch is the ultimate in comfort and practicality with the small 9 / 20 series consumables and the power rating of the larger 26 series torch, it’s the perfect inbetweener. The size of this torch makes it nimble and easy to reach those awkward areas and the water-cooled power cable enables it to weld up to a massive 250A. The torch handle is custom made with a slimline knurled grip that encloses all connecting cables and tubes making for an uninterrupted hold on the TIG piece.
Rated: 250A DC, 190A AC @ 100% Duty Cycle
Suits all Kemppi TIG Machines MasterTIG, MasterTIG MLS 4000, MasterTIG ACDC, MiniarcTIG Evo & the Miniarc TIG.
Part Numbers for Compatible Machines:
MT235ACDCGM
MT235ACDCGMAU
MT325DC
MT325DCG
MT325DCGAU
MT325DCGM
MT335ACDCG
MT335ACDCGM
6114400
6114400VRD
6163505
P0640TX
P0641TX
P0645TX
P0648TX
P0649TX
P0652TX
P0653TX
P0656TX
P0657TX
P0644TX
P0670TX
P0676TX
P0677TX
P0687TX
P0688TX
P0691TX
P0692TX
P0642TX
P0643TX
P0647TX
P0650TX
P0651TX
P0654TX
P0655TX
P0658TX
P0659TX
P0671TX
P0646TX
P0678TX
P0679TX
P0689TX
P0690TX
P0693TX
P0694TX
P0672TX
P0673TX
P0674TX
P0675TX
P0607TX
P0608TX
P0609TX
P0610TX
P0625TX
P0626TX
P0632TX
P0633TX
P0636TX
P0637TX
P0668TX
P0611TX
P0612TX
P0613TX
P0614TX
P0615TX
P0616TX
P0617TX
P0618TX
P0634TX
P0635TX
P0636TX
P0637TX
P0669TX
Features: (Torch)
Suits 0.5mm to 3.2mm Tungsten Electrodes
8 meter torch lead
Custom made in house with the highest quality products on the market
On / off switch
Uses 9 / 20 series Consumables
1/4 BSP LH male on the power lead
Standard Kemppi Style Gas Quick Connection
Standard Kemppi Style Water Quick Connection
Total torch weight 1.6kg
Features: (Water Cooler)
Rated Power 150W
Flow Rate of 5.3 l/min
Maximum start pressure of 500 kpa (70 psi)
Well made unit
Reservoir volume of 9 litre
Inbuilt fan cooled radiator
Quick connect water couplings
Male end quick connect for hose part number 10016392
Independent on/off switch
Larger capacity compared to most coolers on the market.
Similar to Binzel CR1000 850.1001.1 and Bossweld 600210 and UNIMIG UTJRWC-1
Dimensions: (Water Cooler)
Weight 18kg
Dimensions 415 x 220 x 380m
310mm
330mm including feet
350mm including handle laying flat
370mm including handle, standing up
