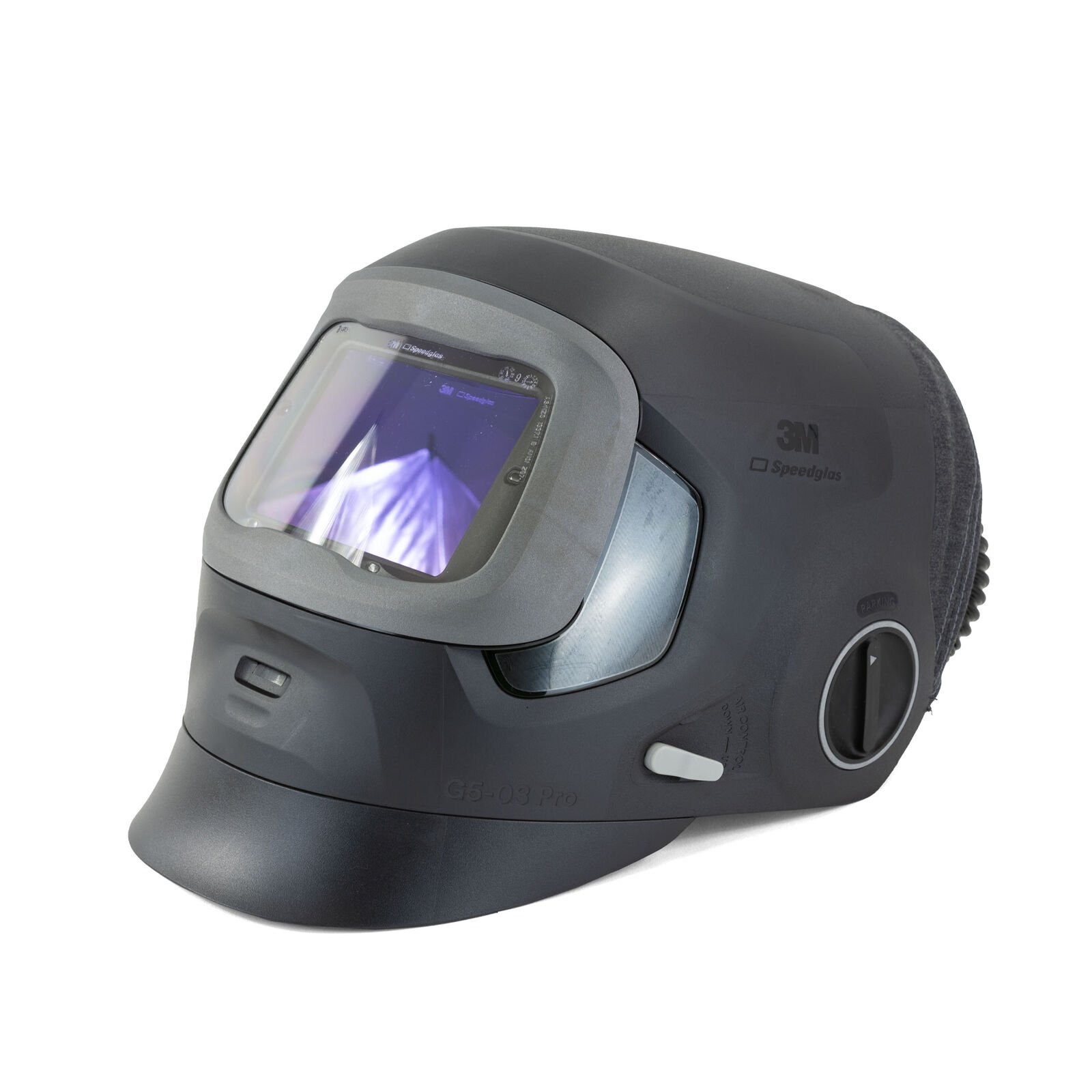

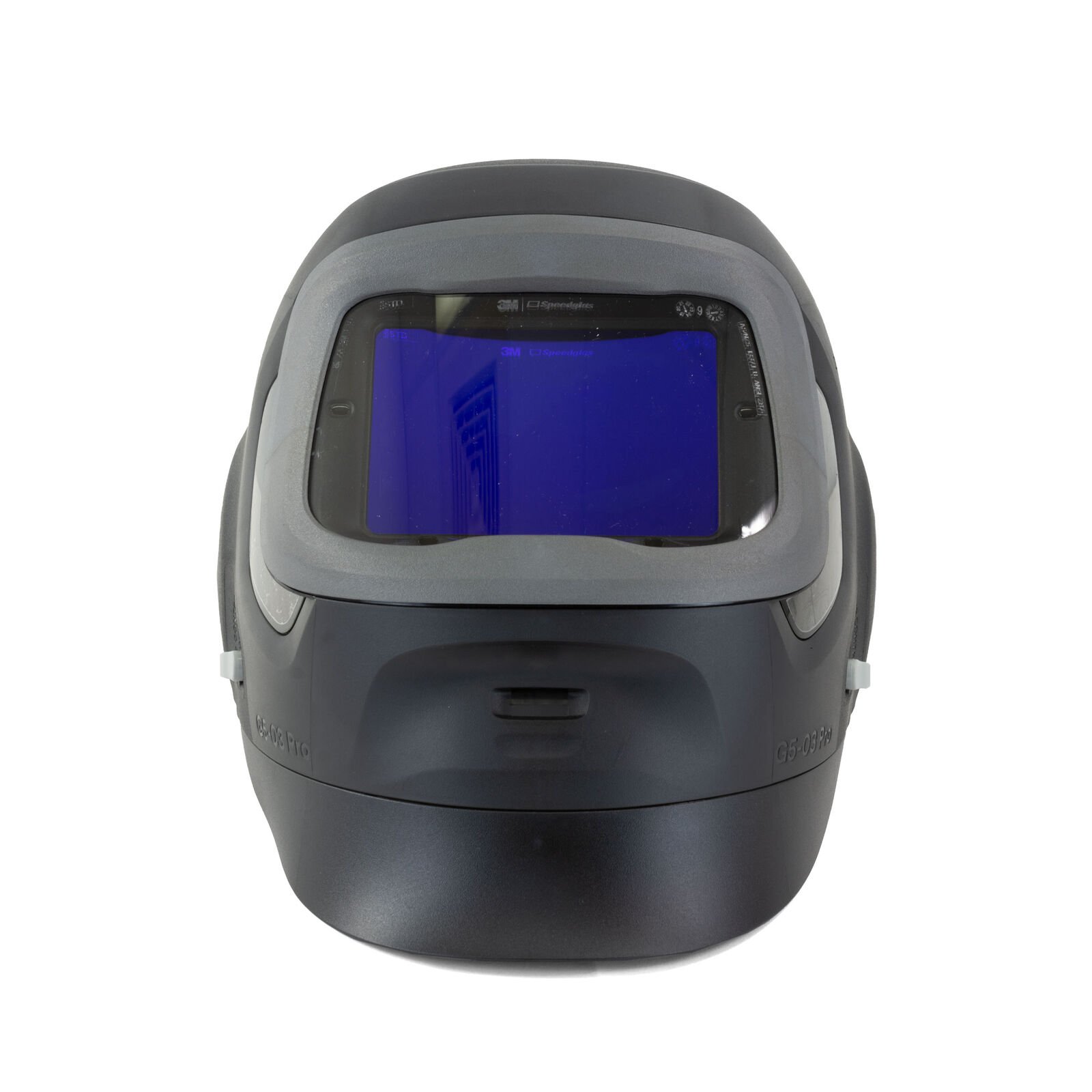

3M™ Speedglas™ G5-03NC Pro Air with Heavy-Duty Adflo PAPR

The new 3M™ Speedglas™ G5-03 NC Pro Air Welding Helmet with Adflo PAPR is geared towards cooler, cleaner, and more comfortable welding via the industry-leading Adflo respirator and innovative Climate Control. A large viewing area with peripheral SideWindows and True-View optics offers welders a clear, expansive view of their workspace, which can be further enhanced by the addition of an optional task light specifically designed for welding.

Features:

Made in Sweden, Speedglas welding helmets offer market-leading features, quality and performance
TrueView vision of 55x107mm viewing area with SideWindows

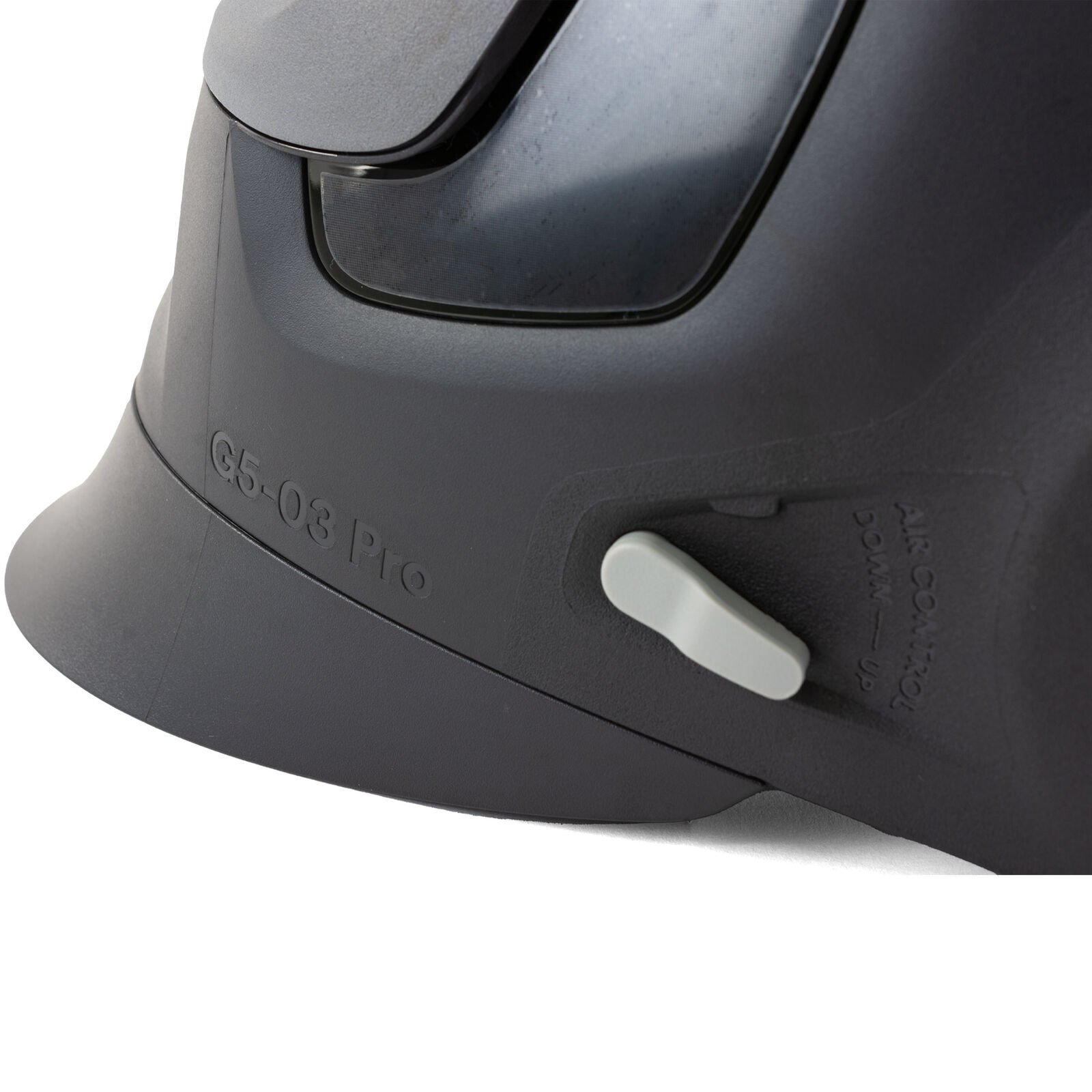

Offers an airduct system allows you to easily adjust the direction and volume of airflow for maximum comfort
Offering two dedicated modes: light state (shade 3) for grinding applications or shade 5 for cutting applications
The G5-03 Pro headband  establishes a new standard for comfort and ergonomics
Industry-leading arc detection and switching
Speedglas task light for welders working in low-light environment
Provides a positive pressure respiratory protection
All welding applications with multiple mode settings like weld, grind, cut and tack, indoors and outdoors even with a completely hidden arc
Configurable head and neck protection where you can choose between fabric or leather, to protect against sparks and splatter
Compliant with Australian and New Zealand standards for high-impact face protection (AS/NZS1337.1), eye protection (AS/NZS1338.1) and respiratory protection (AS/NZS1716)

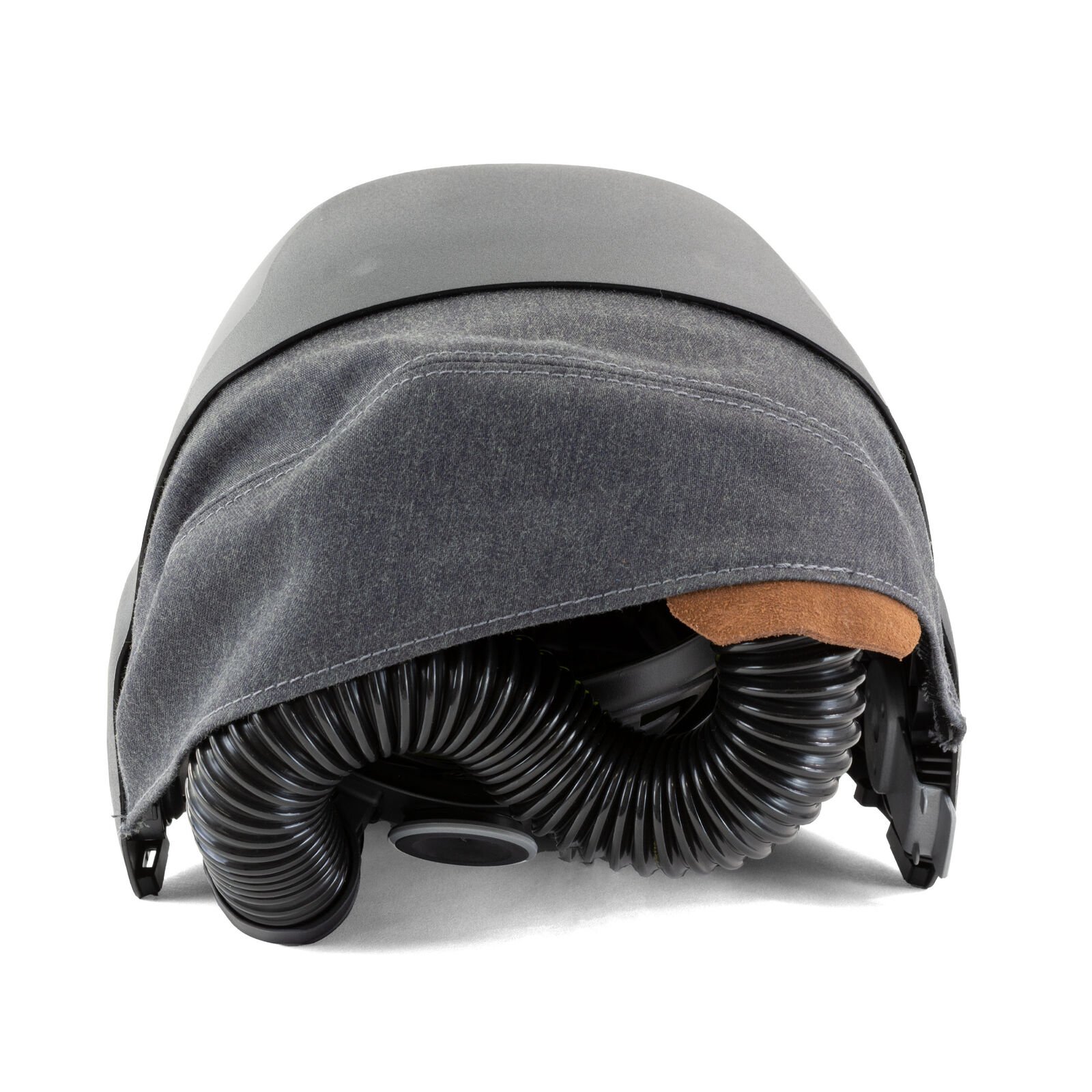

The Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)

Features:

Adflo battery battery provides a run time of approximately 12-14 hours and charges 0-80% of its full capacity in just one hour
Provides a required minimum protection factor of 50 for thermally and mechanically generated particles
Lightweight respirator
Simple breathing hose connection featuring a quick release swivel that welders can single handedly connect and disconnect
Offering advanced respiratory protection specifically designed for welding
Filtered air is evenly distributed throughout the welding helmet, via an innovative airflow pattern
Protects the user from harmful welding fumes and gases
Includes an indicator that alerts the welder when it’s time to
Adjustable airflow rate where you can choose between 170 litres or 200 litres per minute
Provides a constant flow rate regardless of the particle filter loading or the battery charge level

Specifications:

Welding Helmet Model: Speedglas G5-03 Pro Ai
Relevant Welding Helmet Standards

Eye Protection – AS/NZS1338.1,
Face Protection – AS/NZS1337.1
Respiratory Protection – AS/NZS1716

Speedglas TrueView Welding Lens: 55 x 107mm viewing area + SideWindows
Welding Applications:

Stick
MIG
TIG (industry leading detection down to 1 Amp)

Hidden Arc Mode
Grind Mode
Hidden Arc Mode
Variable Shades

Dark: Shade 5, 8-12
Light: TrueView Shade 3

UV Protection: Shade 12 (permanent)
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 40-470 ms
Optional Task Light
New G5-03 Pro Head Harness
Required minimum protection factor: 50
Airflow level: 170 & 200 l/min
Adjustable Air Control
Adflo Battery Run Time: 12-hours
Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete

Spare Lenses:

Inside cover lens: 528025
Outside cover lens: 526000 / 527000
