Arora AY-7A AC Magnetic Yoke NDT MPI Test
$780.00
Product Introduction
The Arora AC Magnetic Yoke – AY-7A is a robust NDT Magnetic Particle MPI Test tool, ideal for dry/wet, color contrast/fluorescent inspection methods. It features ergonomic design, adjustable legs, and meets ASTM E709 & E1444 standards, ensuring reliable performance with 12-month warranty.
Key Specifications
| Input | Single phase 230V 50Hz |
| Lifting Force | 4.5kg / 10Lb |
| Leg Spacing | 65-260mm (center to center) |
| Field Strength | 2Ka/m RMS at center |
| Duty Cycle | Industrial grade 50% (max 60s on/off) |

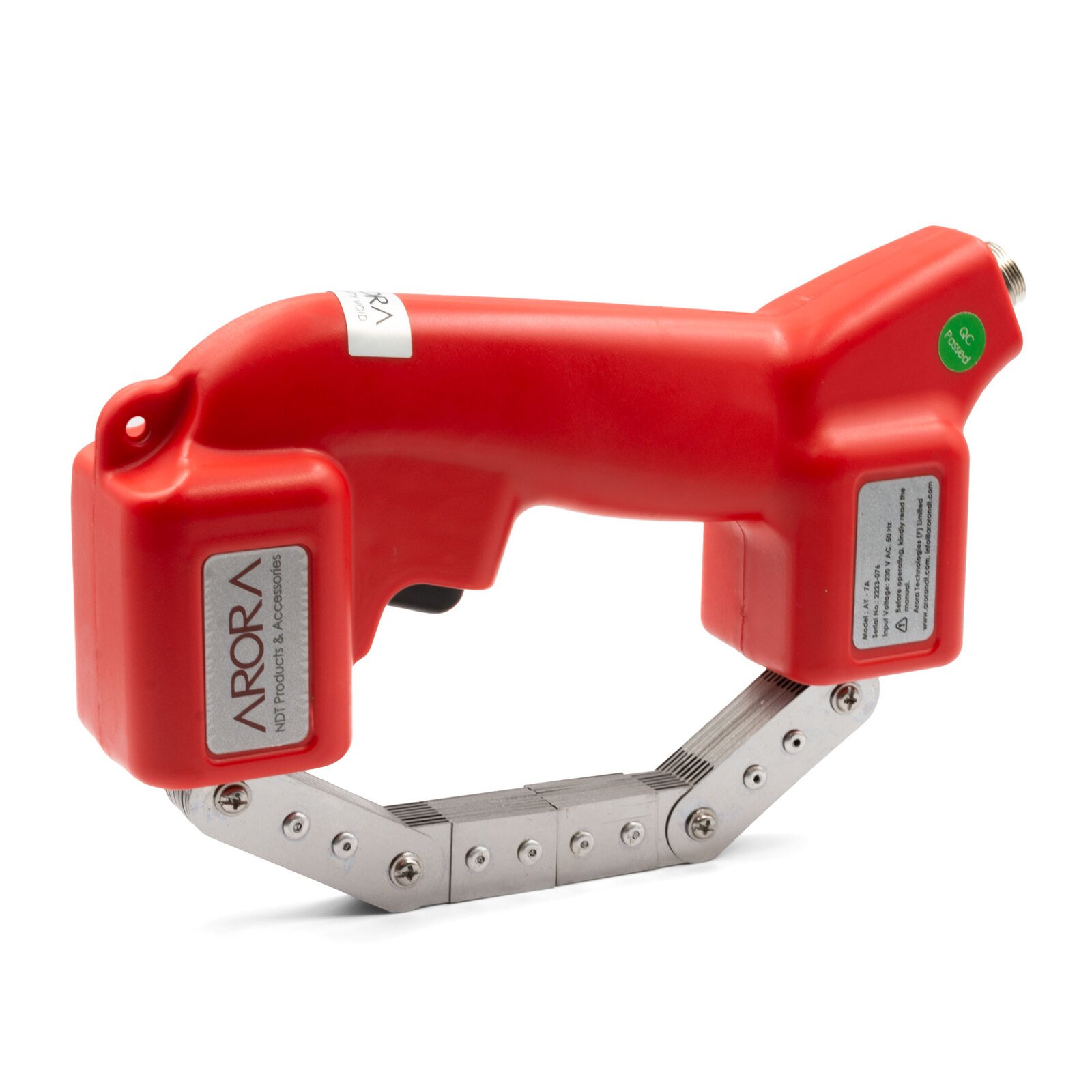

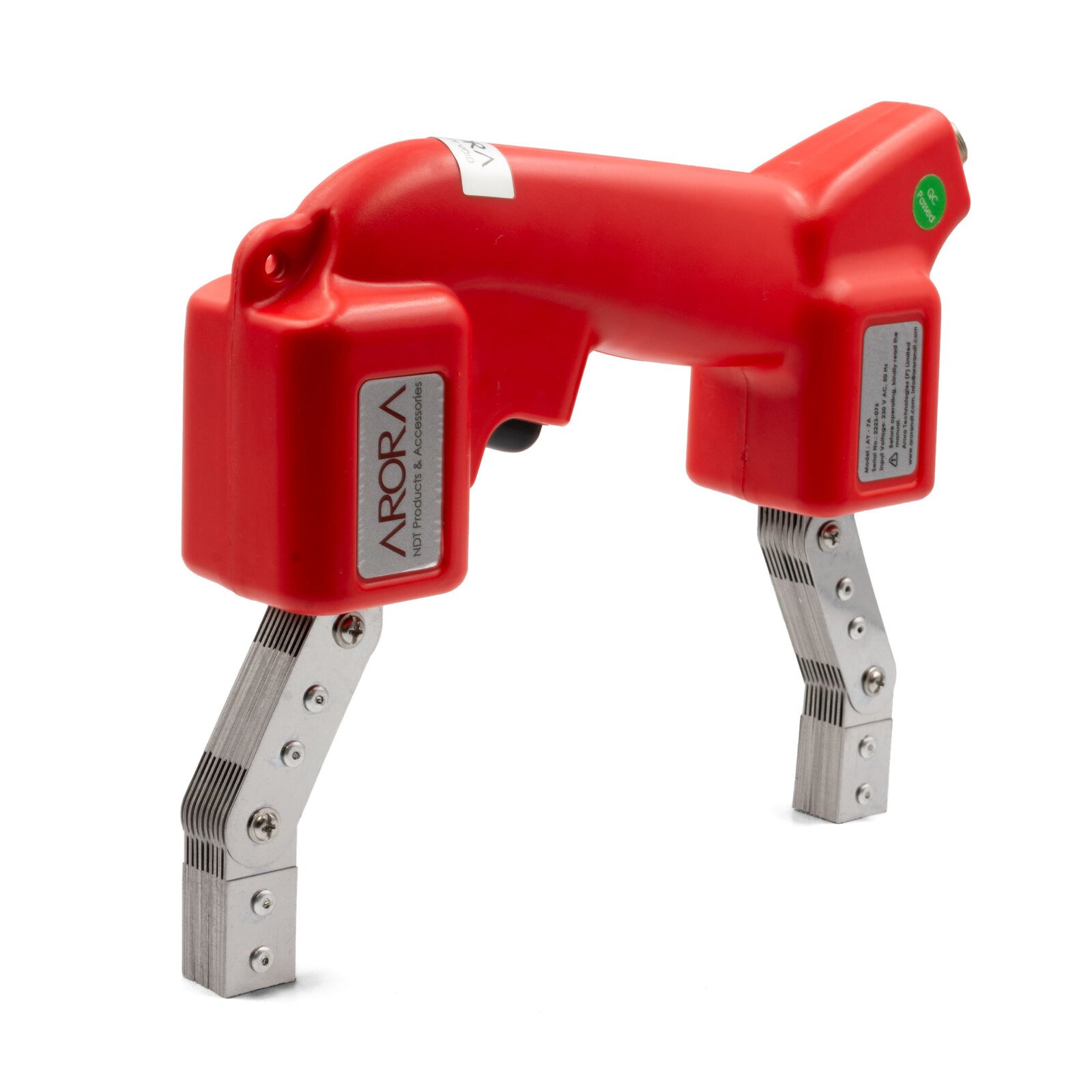

Arora AC Magnetic Yoke – AY-7A: Professional NDT Magnetic Particle MPI Test Tool
Discover the ultimate solution for precise magnetic particle inspection (MPI) with the Arora AC Magnetic Yoke AY-7A. Engineered for reliability and efficiency, this industrial-grade tool ensures accurate flaw detection in welded components, pipelines, and metal structures¡ªcritical for maintaining safety and quality in manufacturing and construction.
Core Specifications
| Parameter | Details |
| Compliance | Exceeds ASTM E709 & E1444 lifting standards |
| Lifting Force | 4.5kg / 10Lb for secure workpiece hold |

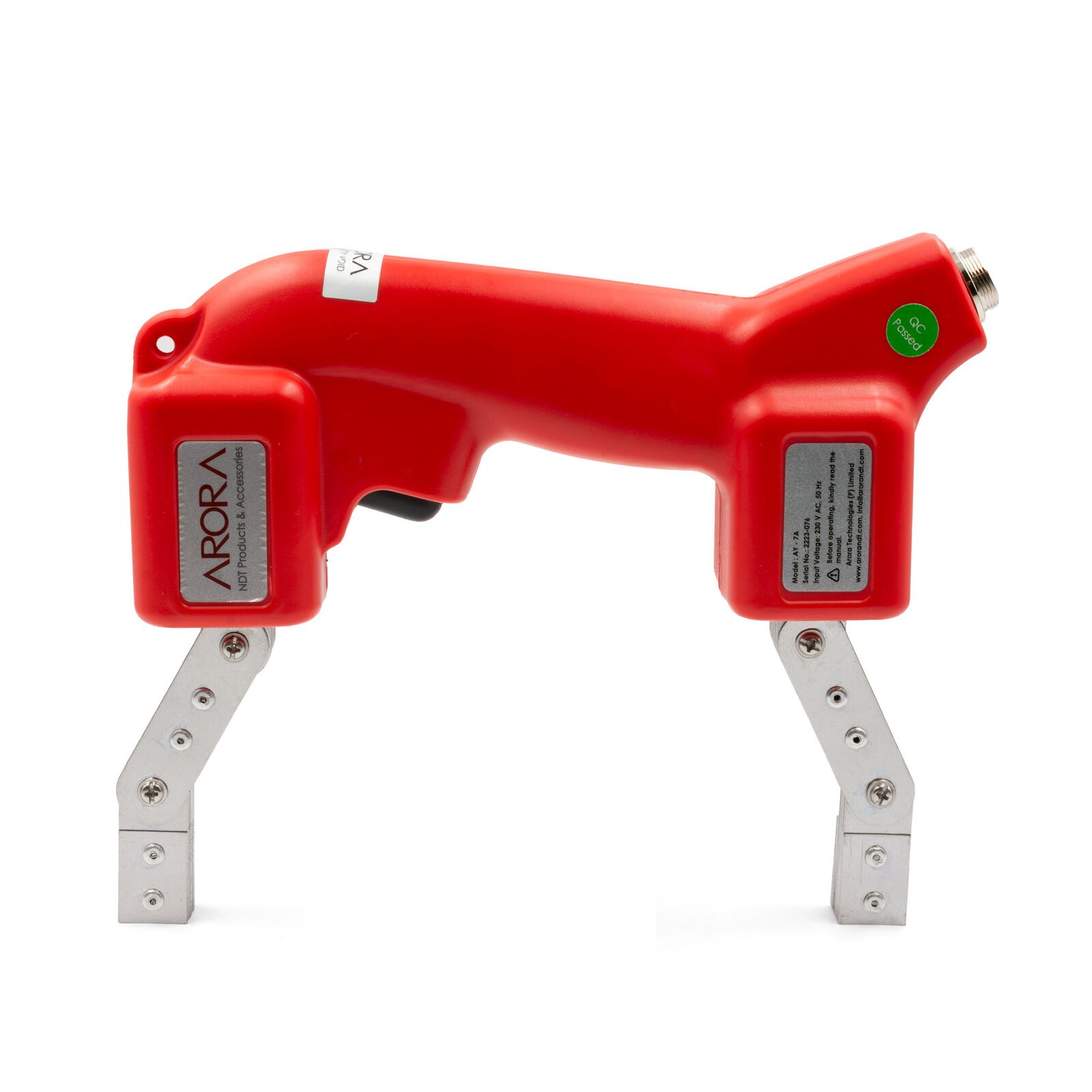

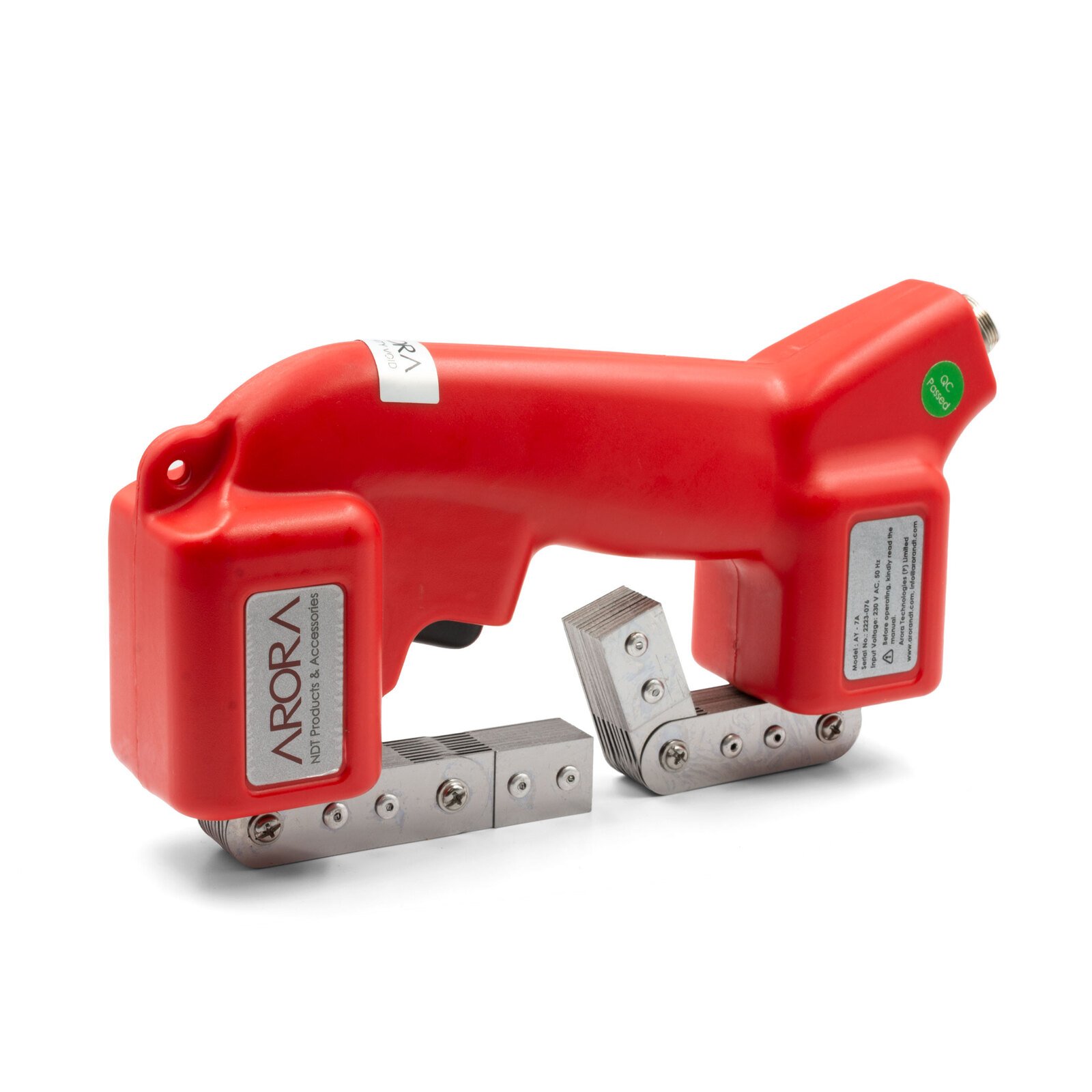

| Leg Spacing | Adjustable 65-260mm (center-to-center) for versatile use |
| Field Strength | 2Ka/m RMS tangential field at center |
| Power Input | Single phase 230V 50Hz with detachable 3m cord |
| Duty Cycle | 50% (max 60 seconds on/off) for continuous operation |
| Demagnetization | Built-in AC demagnetization capability |
| Methods Supported | Dry/wet, color contrast, and fluorescent MPI techniques |
| Pole Contact | 20mm x 20mm for stable magnetic coupling |
| Warranty | 12-month manufacturer guarantee |
Why Choose the AY-7A?
Designed for professionals, the AY-7A combines rugged durability with user-centric features. Its ergonomic angled grip reduces operator fatigue during extended use, while the adjustable legs adapt to various workpiece sizes. With no risk of sparking or “hot spots,” it¡¯s safe for use in sensitive environments. The industrial-grade construction ensures longevity, even in harsh job site conditions.
Applications
Ideal for NDT inspections in industries such as oil & gas, automotive, aerospace, and structural engineering. Perfect for detecting surface and subsurface defects in ferromagnetic materials, including welds, castings, and forgings.
Kit Includes
- AY-7A AC Magnetic Yoke
- 3-meter detachable power cord
- Comprehensive operation manual
- Certificate of conformance
FAQ
Q: What power supply does the AY-7A require?
A: Single phase 230V 50Hz, compatible with standard industrial outlets.
Q: Can it be used for both dry and wet MPI methods?
A: Yes, it supports all common MPI techniques, including dry powder and wet fluorescent applications.
Q: Is training required to operate the yoke?
A: While basic NDT knowledge is recommended, the user-friendly design and manual make setup straightforward.
Ready to elevate your inspection accuracy? Contact us today for a personalized quote or technical support. Ensure your projects meet the highest quality standards with the Arora AY-7A.
