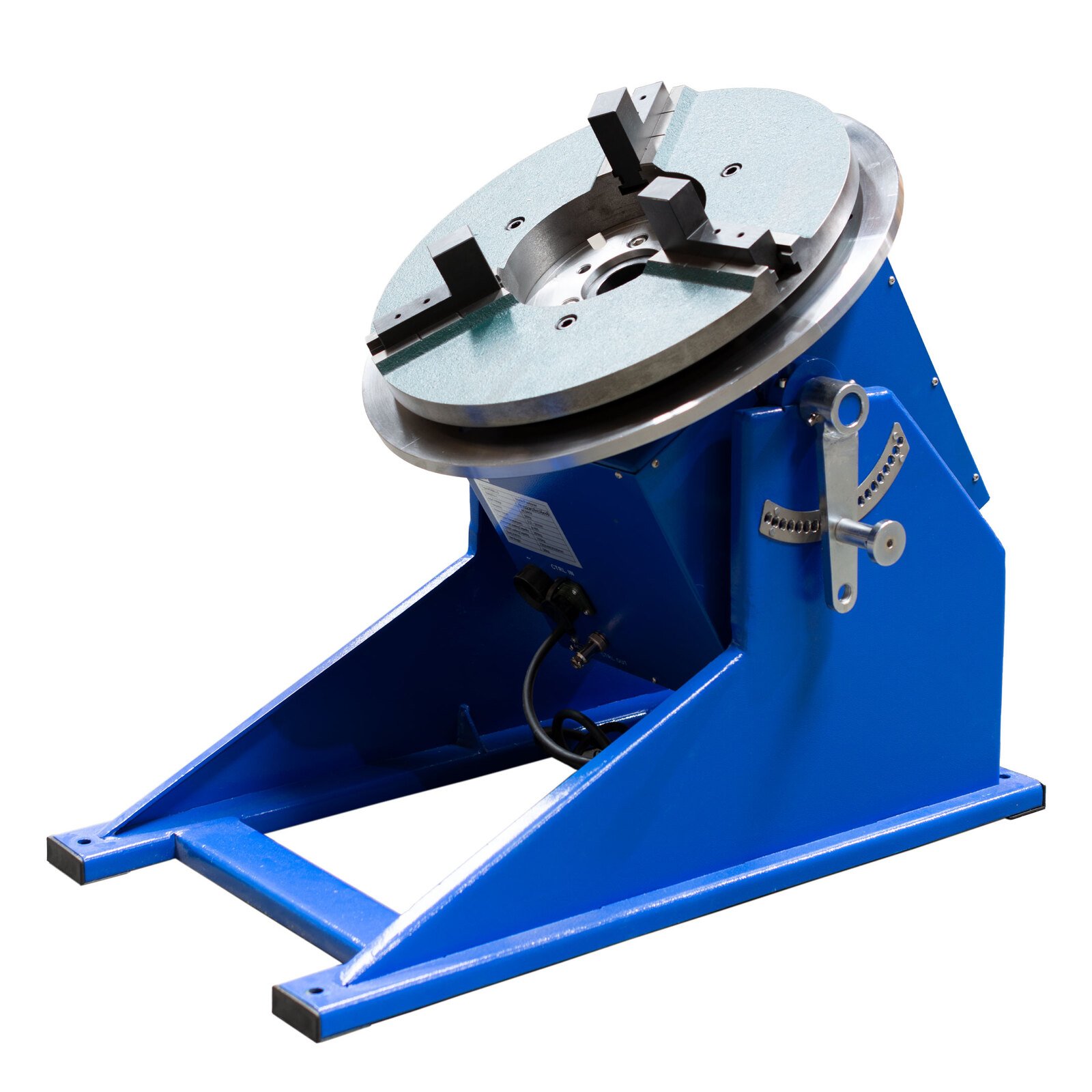

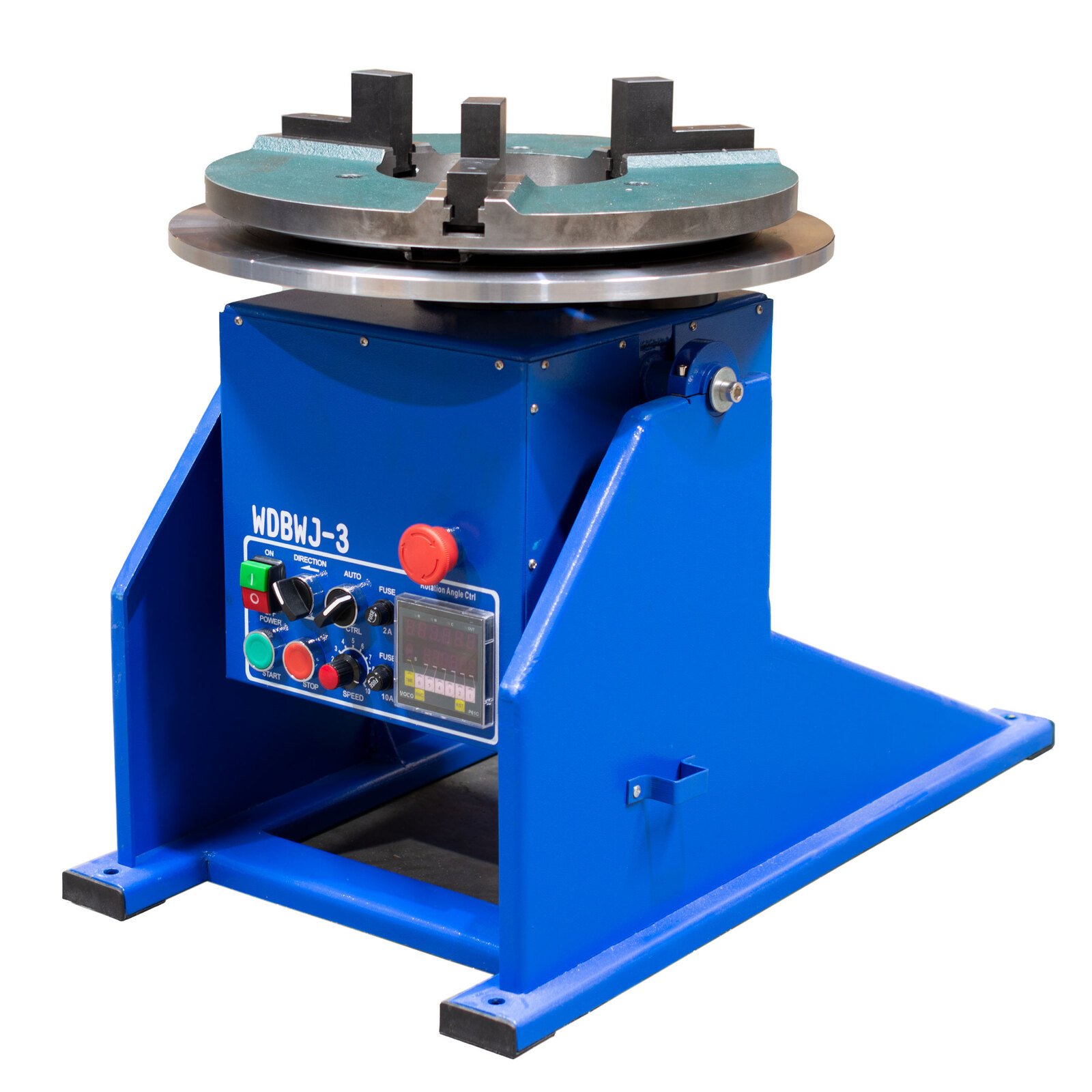

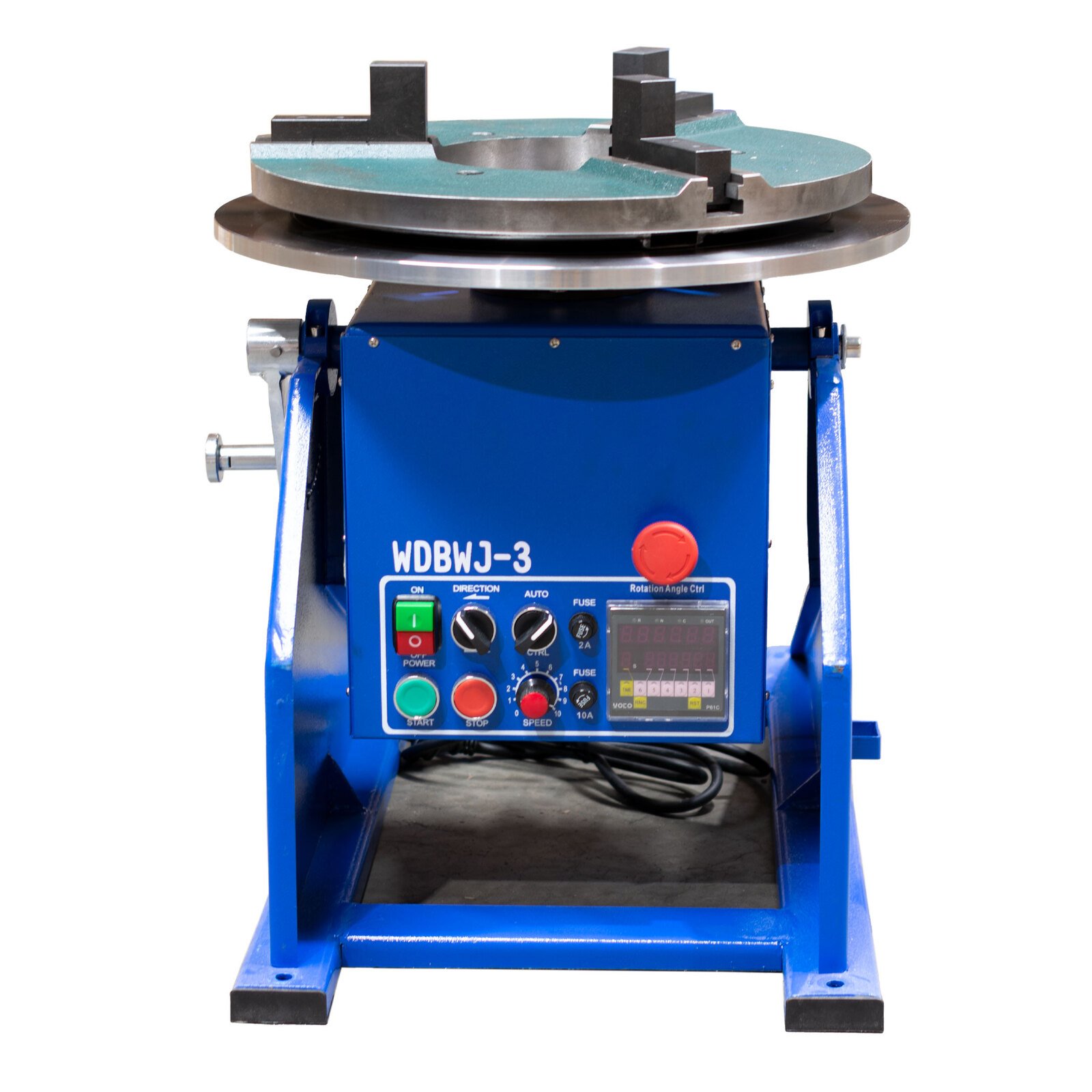

Welding positioner machine is a type of automatic positioner. It works in MIG/MAG,CO2 and TIG welding source, making a set of special circumferential automatic welding system.This system is suitable for circumferential welding accessory of automobile and autobike, also suitable for the making of metal parts which need a mass of circumferential welding.

Main Capability Characteristics:

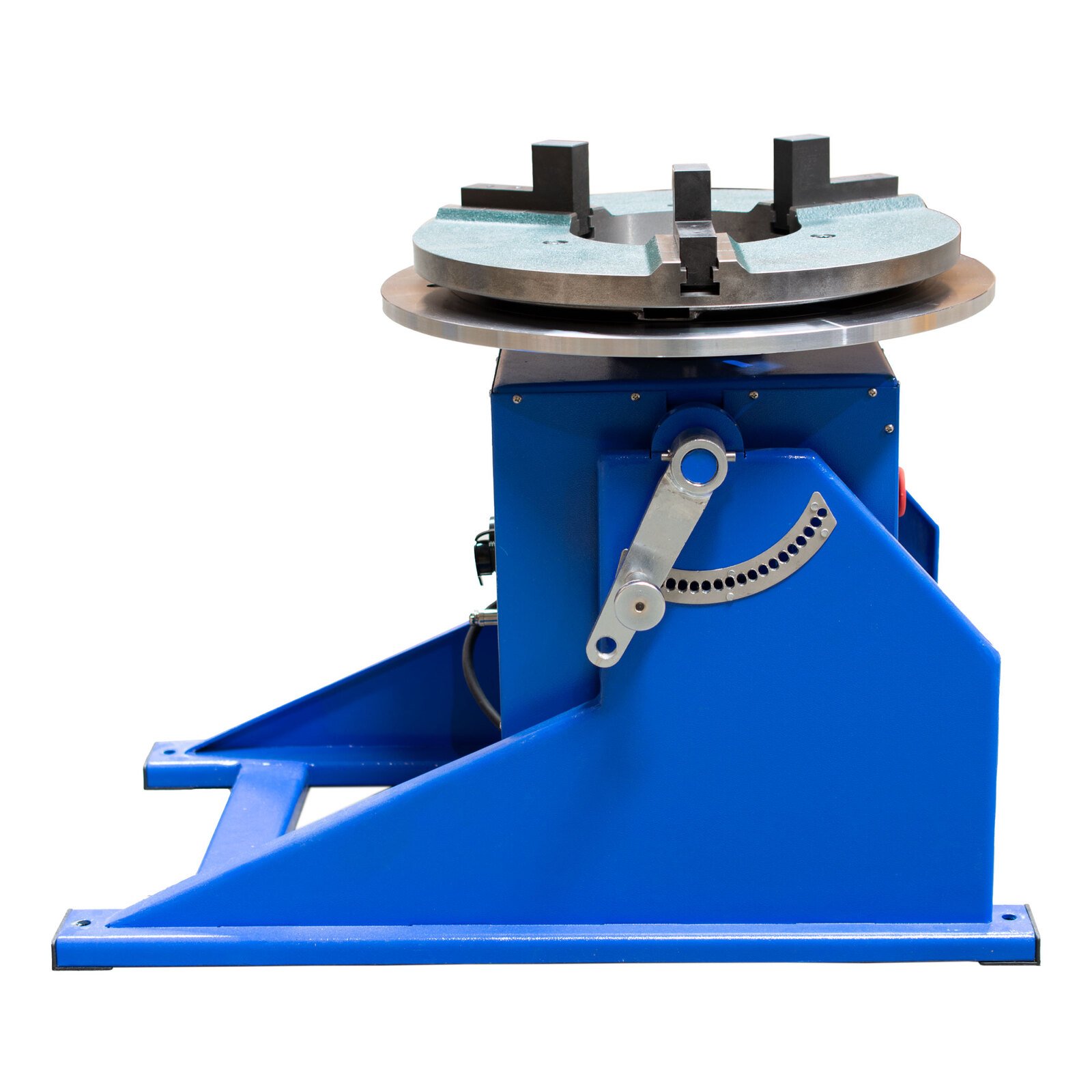

The headstock can be turned 90°. The principal axis can be turned in any direction to fit different angles.
Driven by a DC motor, offering good performance and a large timing range, suitable for a wide range of workpieces.

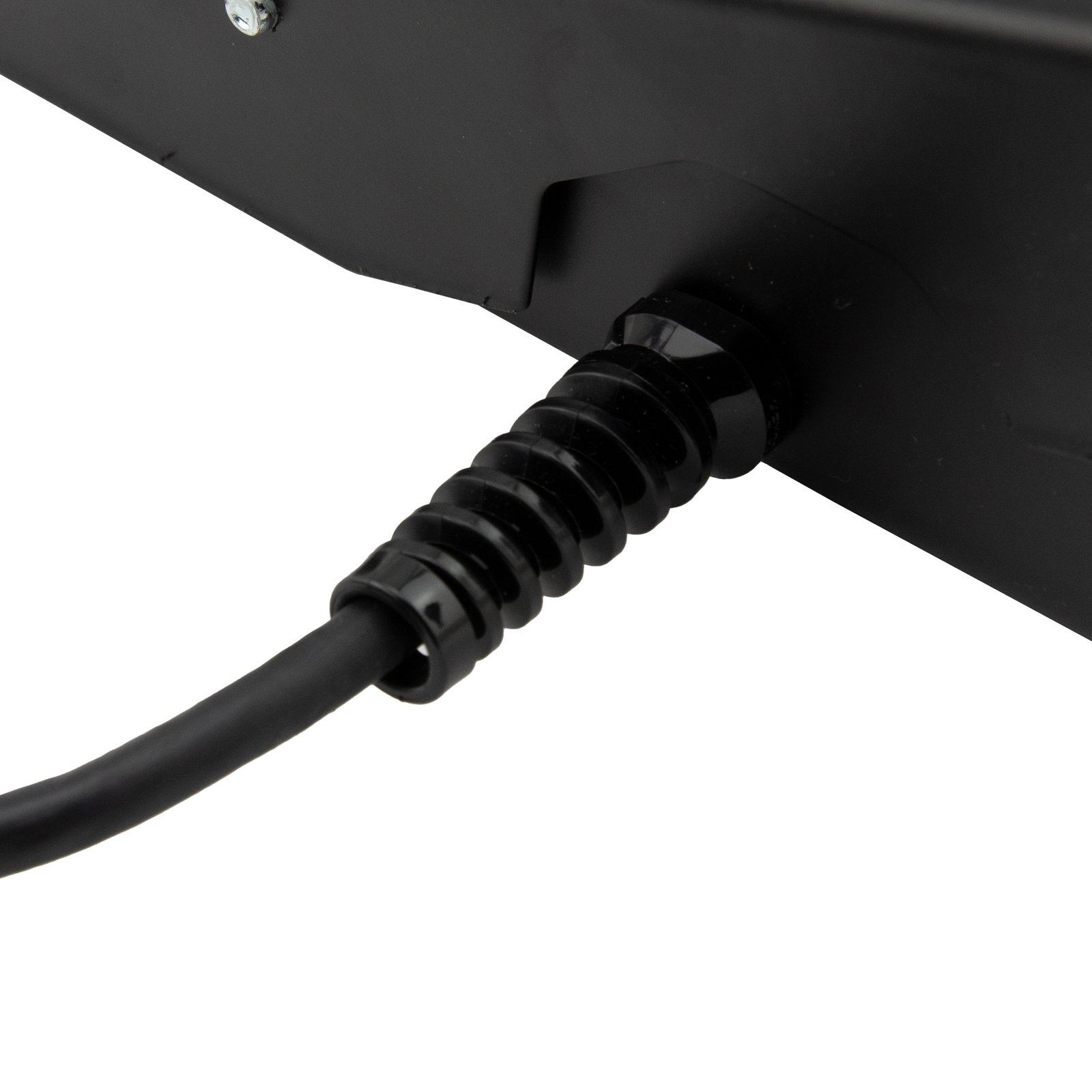

Equipped with a foot pedal switch for convenient operation.
Operated by one key: after debugging, simply press the welding key to initiate automatic welding.
Includes an emergency stop function, allowing for urgent stops during special situations in the welding process.

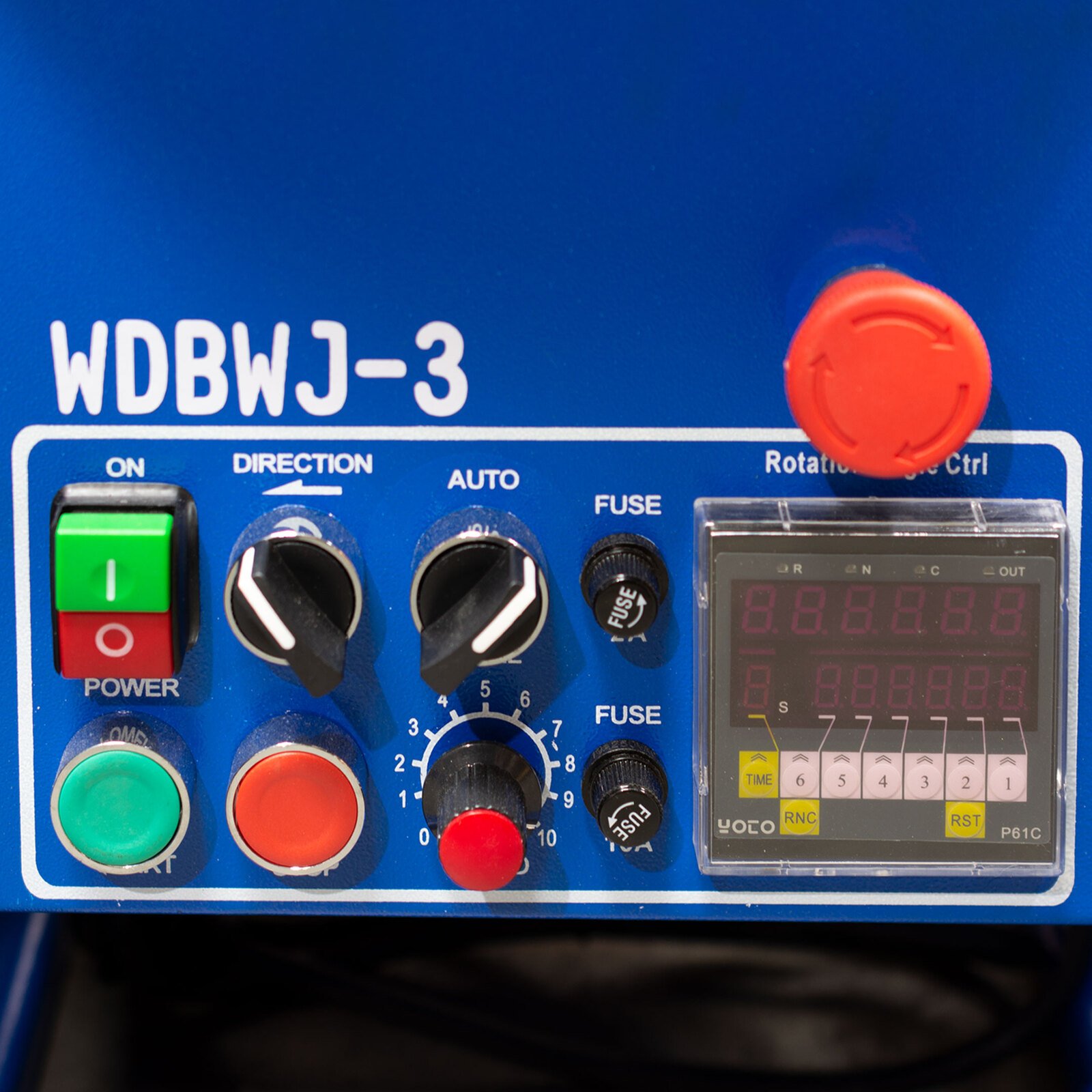

Features a welding speed display function to show the current running speed.

Technical Data:

Input Voltage: AC220V
Frequency: 50/60Hz
Input Power: 0.3KVA
Turntable Diameter: Φ450mm
Rotate Speed: 0.2-2rpm
Horizontal Loading Capacity: 300Kg
Vertical Loading Capacity: 150Kg
Size (LxWxH): 720x480x530mm
Net Weight: 58Kg
Angle Control: Manual
Max Amp: 400A
Protection Rank: IP21S
Center Bore Diameter: Φ45mm

Dimensions:

400mm turntable plate (green)
450mm turntable base (silver)
48mm center bore
