Magnetic Flange Aligner Level KC-J1904 Universal Curv-O-Mark
$499.99
Product Introduction

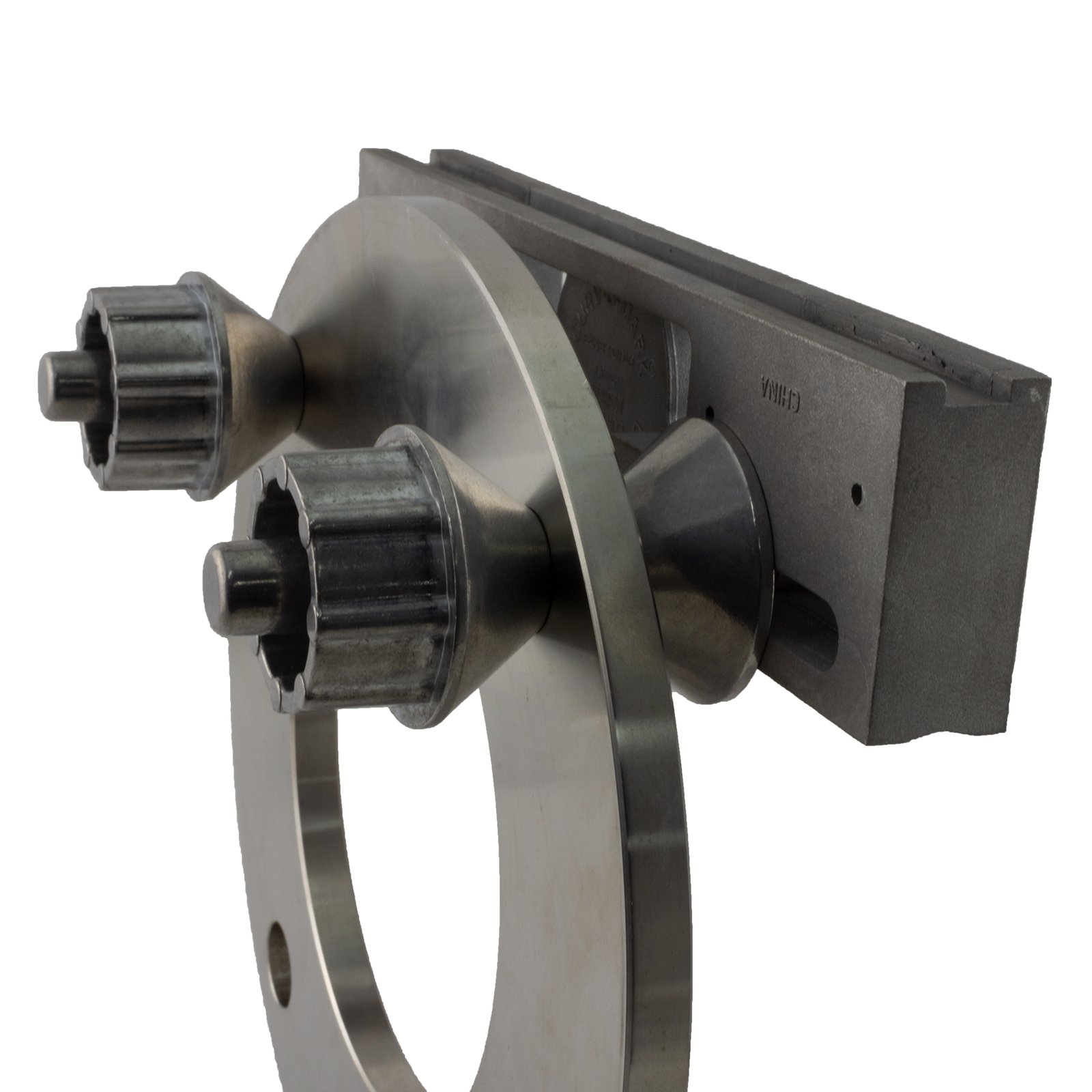

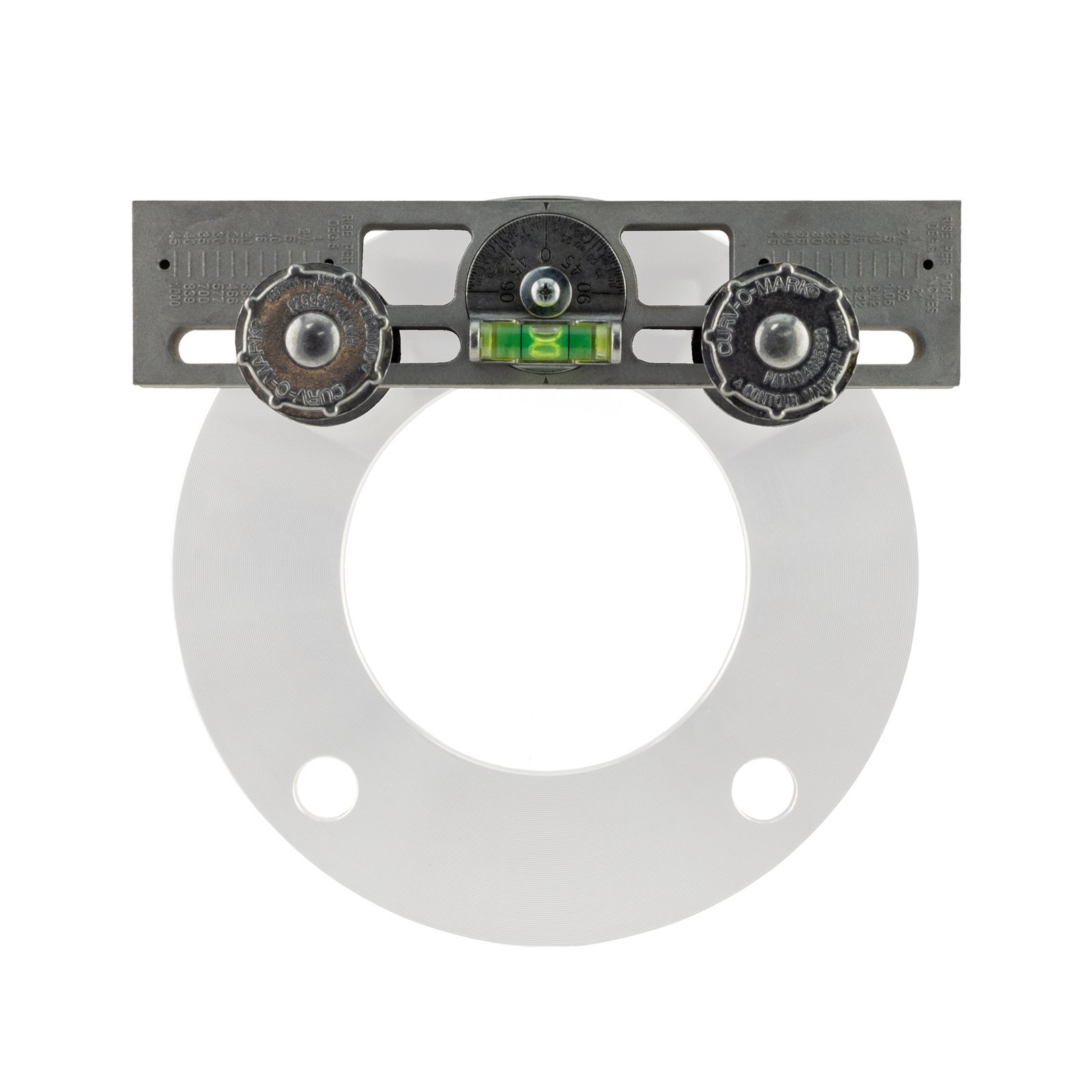

Valuable multi-purpose tool for pipe fitting tasks, featuring 360¡ã adjustable protractor-dial level, self-centring grooves, and cast-in magnets. Simplifies flange alignment, pipe pitch setting, lateral angle adjustment, and vertical run trueing with included self-aligning spacer bolts for 2-1/4″ to 8″ flange bolt holes.
Specifications
| Magnetic Pull | 50-pound |
| Protractor-Dial | 360¡ã Adjustable |
| Flange Bolt Hole Fit | 2-1/4″ to 8″ Centres |
| Self-Centring | Deep Cast-in Grooves |
| Multi-Material Use | Steel, Aluminium, Copper, Lumber, Stone |
Contour Curv-O-Mark / Flange Aligner Magnetic Universal Level – KC-J1904
| Feature | Details |
|---|---|
| Multi-Purpose Functionality | Assists in flange alignment, pipe pitch setting, lateral angle adjustment, and vertical run truing |
| 360¡ã Adjustable Protractor-Dial | Allows precise angle measurements in any orientation for versatile pipe fitting tasks |
| Powerful Magnetic Hold | Dual 25-pound cast-in magnets provide 50-pound total pull for secure attachment to steel surfaces |
| Self-Centering Design | Deep cast-in grooves on both faces ensure stable positioning on pipe contours |
| Non-Magnetic Compatibility | Works on aluminum, copper, lumber, and stone without magnetic interference |
| Flange Two-Holing Kit | Includes self-aligning conical spacers and bolts for 2-1/4″ to 8″ bolt hole spacing |
| Rise Per Foot Indicator | Cast-in table shows pitch measurements in inches and meters |
| Offset Angle Capability | DSL dial allows precise bolt hole alignment at custom offset angles |
| Underside Mounting | Magnetic base enables secure attachment to pipe/beam undersides |
| Durable Construction | Heavy-duty cast design for industrial welding and pipe fitting environments |
Product Overview
The KC-J1904 Magnetic Universal Level is an indispensable tool for professional pipe fitters and welders. This precision instrument combines a 360¡ã protractor-dial level with powerful magnetic adhesion to simplify complex alignment tasks. Its self-centering grooves and dual magnet system ensure stable positioning on pipes of all sizes, while the included two-holing kit eliminates guesswork in flange alignment.
Key Applications
- Aligning and two-holing flanges in pipeline construction
- Setting precise pitch angles for drainage and process piping
- Establishing lateral branch angles in industrial systems
- Trueing vertical pipe runs in commercial installations
- Working with both ferrous and non-ferrous materials
Performance Advantages
The dual 25-pound magnets provide exceptional holding power, allowing hands-free operation even on overhead surfaces. The 360¡ã dial enables quick angle adjustments from 0¡ã to 360¡ã, while the integrated rise-per-foot table eliminates conversion calculations. Whether working with steel, aluminum, or copper, this tool delivers consistent accuracy in demanding industrial environments.
Quality Assurance
Engineered for durability, the KC-J1904 features a rugged cast construction that withstands heavy use. The precision-machined dial ensures accurate readings, while corrosion-resistant components maintain performance in harsh conditions. This tool meets industrial standards for pipe fitting equipment, ensuring reliable operation in professional settings.
Competitive Differentiation
Unlike basic levels, this tool combines magnetic adhesion, self-centering design, and flange alignment hardware in one compact unit. The ability to work on both magnetic and non-magnetic surfaces provides versatility unmatched by specialized tools, while the integrated measurement table streamlines workflow efficiency.
Frequently Asked Questions
- What bolt hole sizes does the two-holing kit accommodate? The self-aligning spacer system fits bolt holes with 2-1/4″ to 8″ center spacing.
- Can this level be used on vertical surfaces? Yes, the magnetic base provides secure attachment to vertical and overhead steel surfaces.
- How accurate is the protractor dial? The precision dial allows angle settings with 1¡ã increments for reliable alignment.
- Is calibration required? The level comes pre-calibrated and maintains accuracy under normal use conditions.
- What is the weight capacity of the magnetic base? The dual magnets provide 50 pounds of total pull force for secure positioning.
Ready to streamline your pipe fitting operations? Contact us today for pricing and availability information on the KC-J1904 Magnetic Universal Level.
