FURICK Pyrex TIG CUP Kit – 2 x Fupa #12

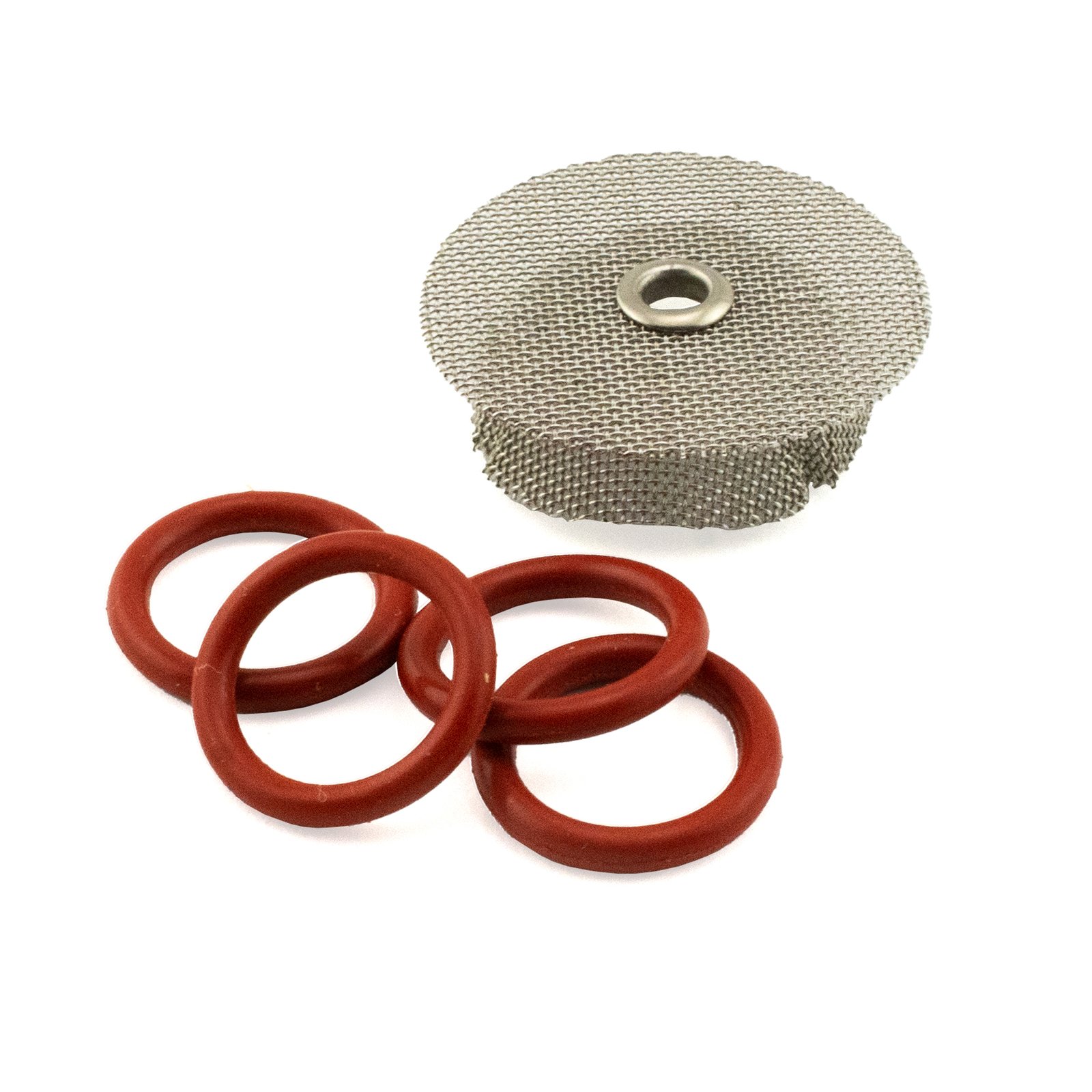

The FUPA #12 cup is recommended for Mild steel, Stainless steel, Chromoly, Titanium, inconel and other space grade alloys. It works best on thinner / smaller applications such as header tubes and chassis tubing. This kit comes with 2 full FUPA #12 cups, a spare diffuser, 4 Orings and a Titanium Cup Cover

Features:

Thick heat resistant pyrex glass rated to max 175 amps
Made in the USA

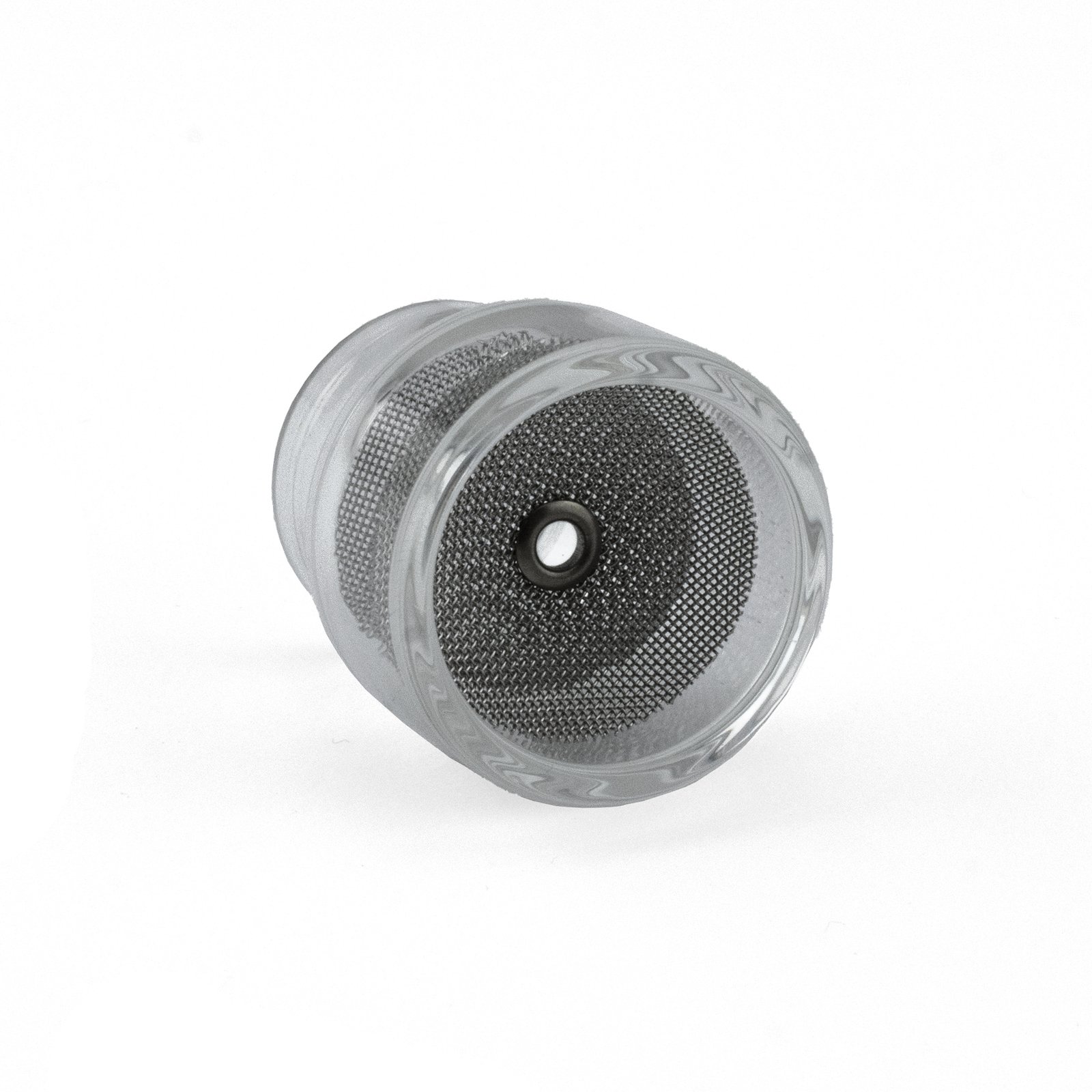

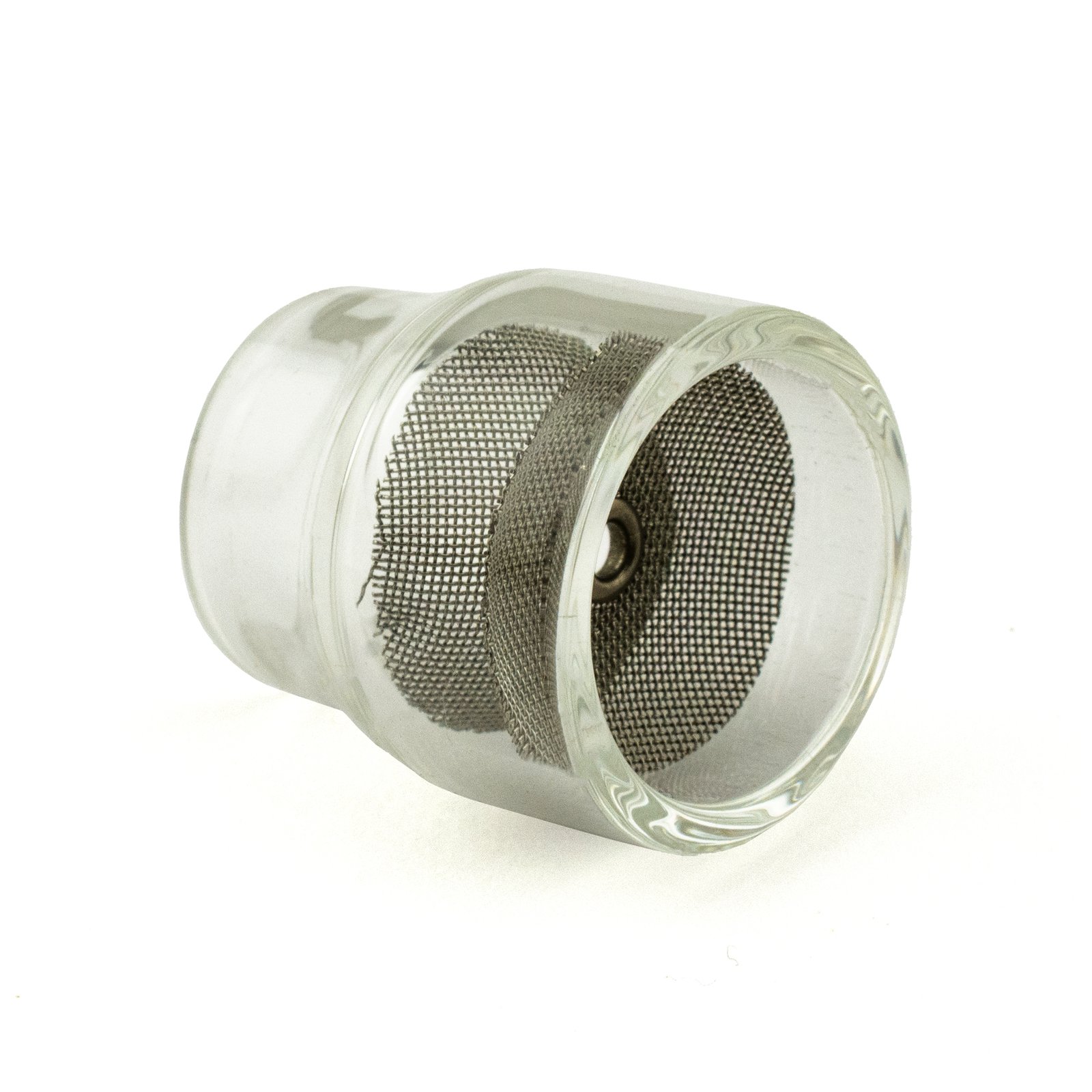

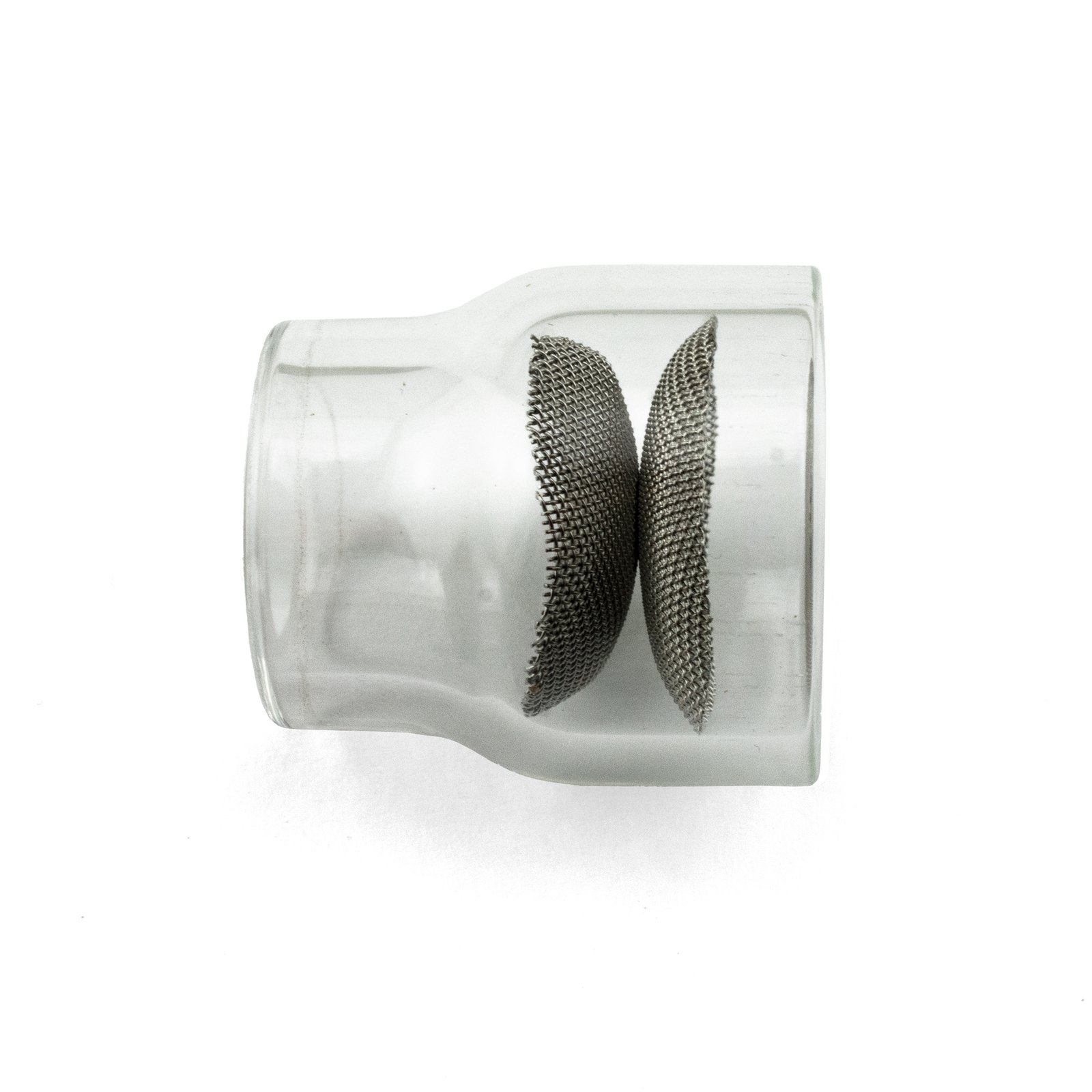

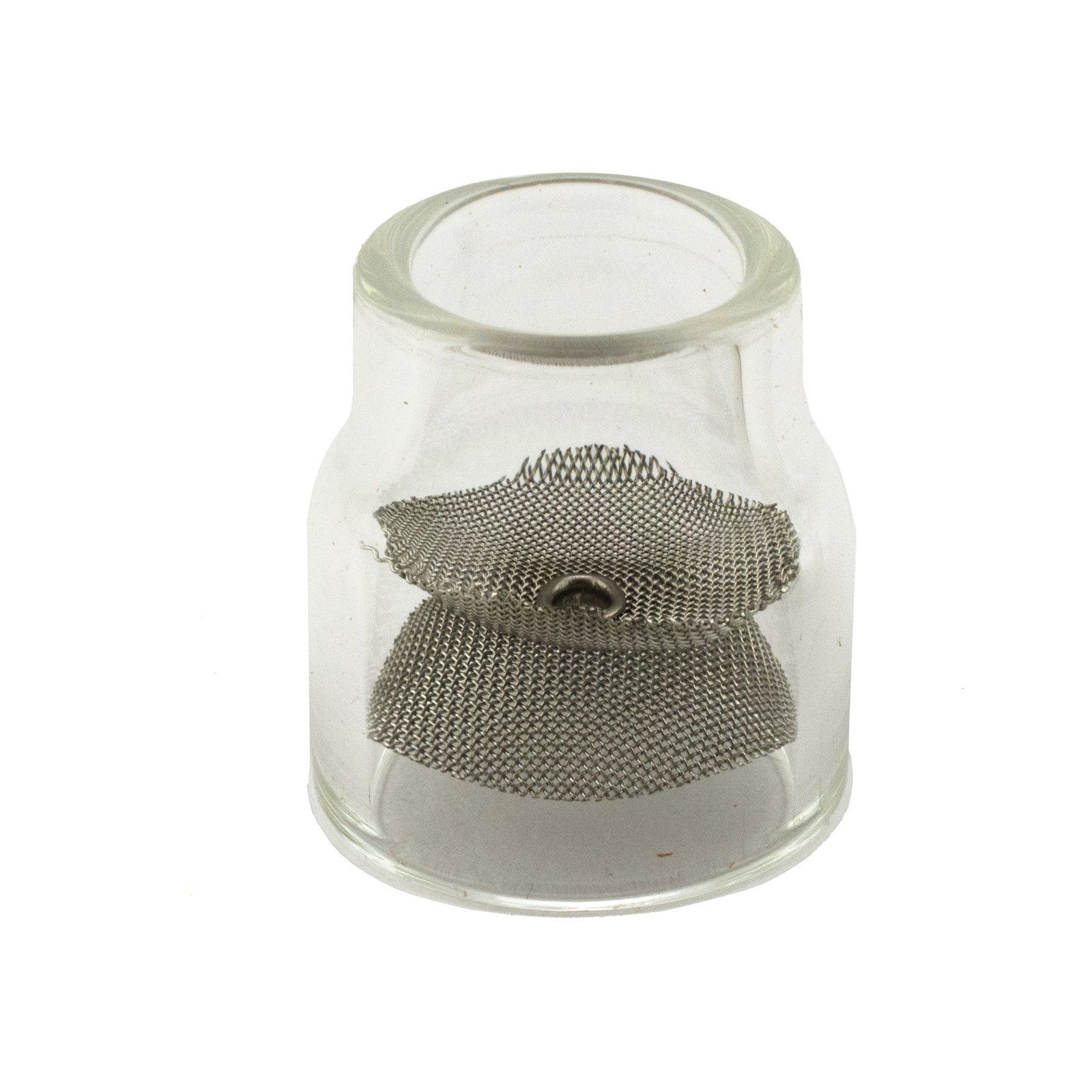

Utilizes a second mesh filter for consistent gas coverage over the welding material
Includes 2 x Pyrex Cups & 4 x Orings
For use with a standard 17 / 26 series torch the cup will require gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
For use with a standard 9 / 20 series torch the cup is compatible with standard gas lens’ (pn: 45V43, 45V44, 45V45)

Dimensions:

Bore ID: 20.5mm
Bore OD: 25.3mm
Length: 27mm
Glass Thickness: 2.9mm
Gas Lens Mesh Bore: 2.6mm
