FURICK FUPA #12 Ceramic TIG Cup Kit – FU12KOKN – Made in the USA

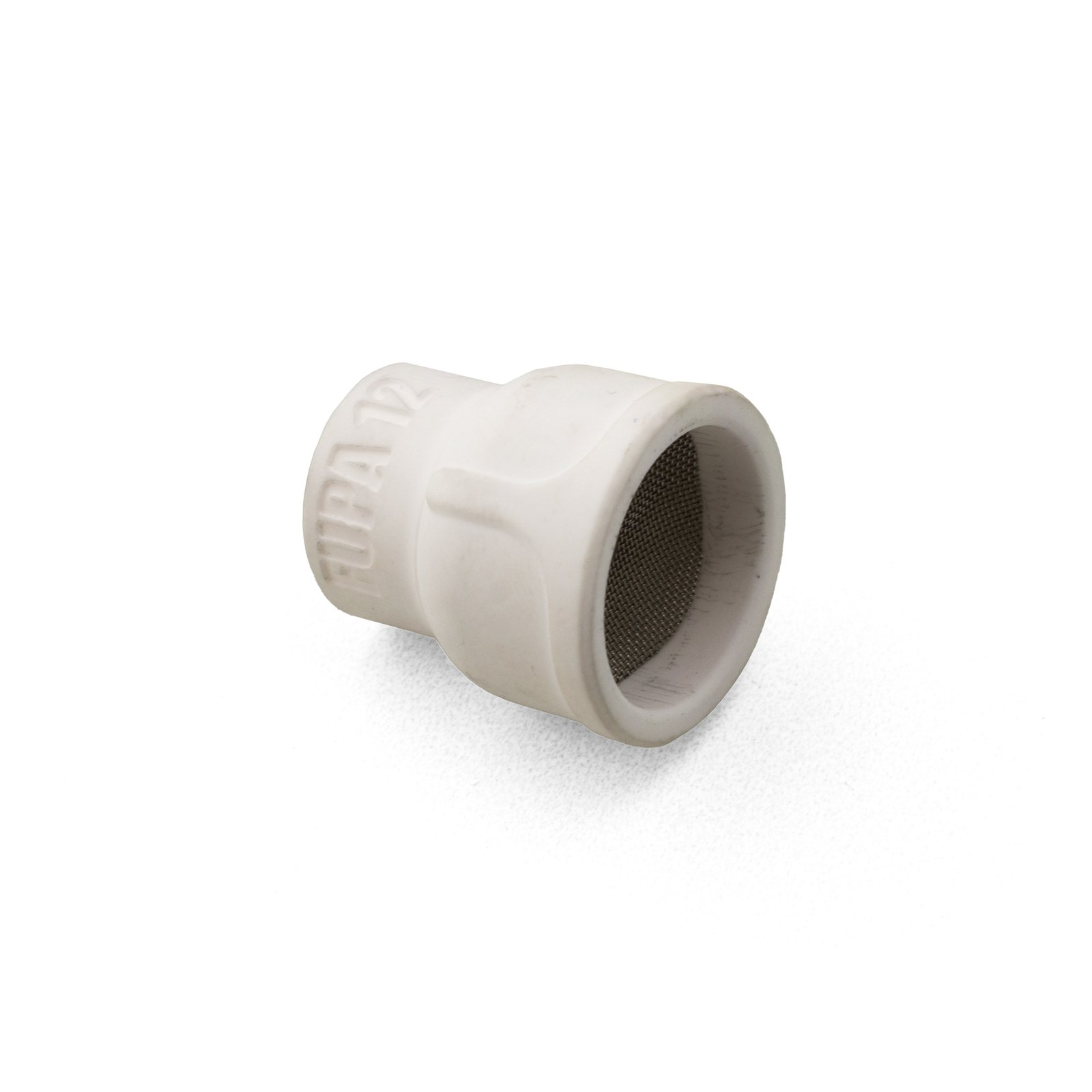

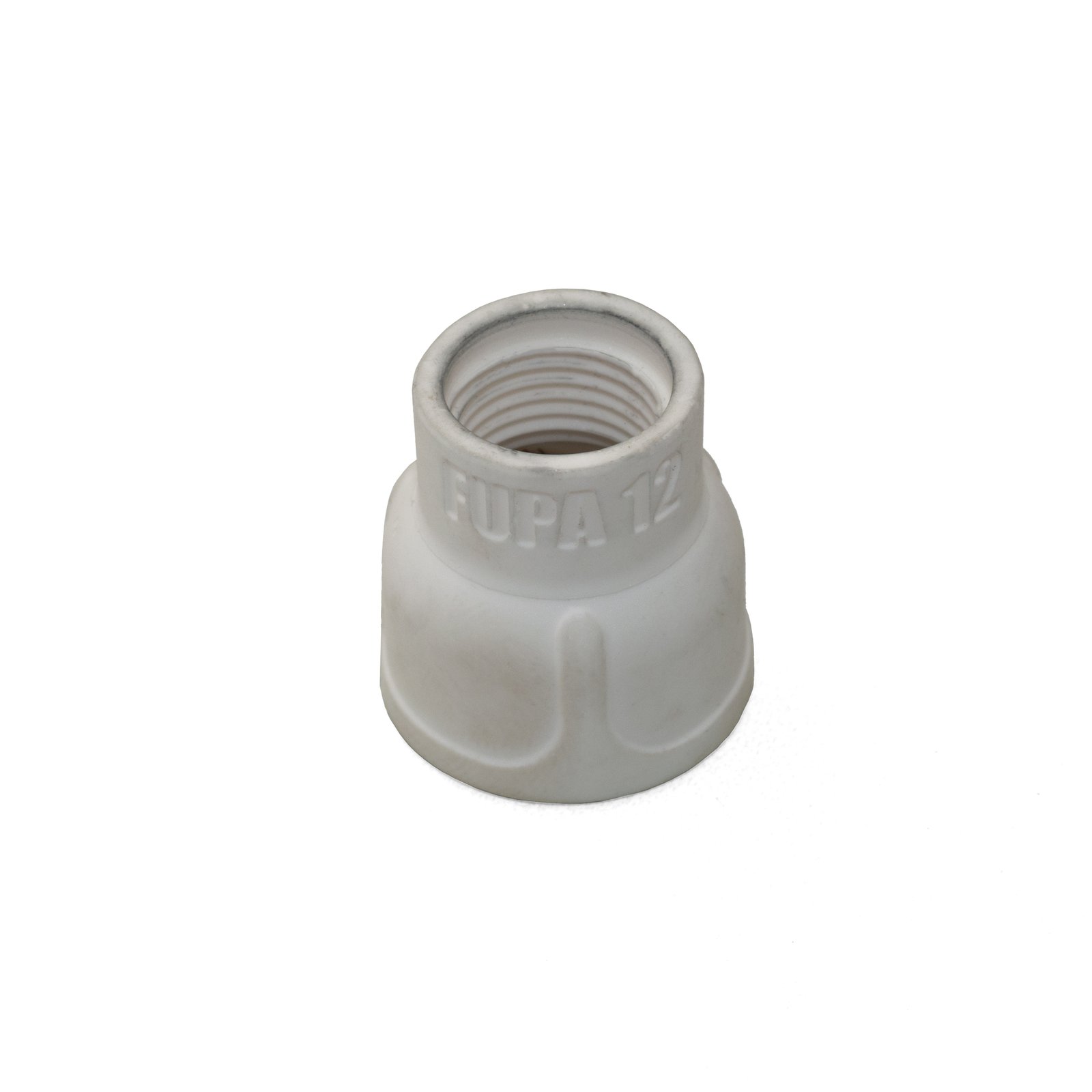

The Fupa 12 Ceramic kit includes 2 ceramic cups and a spare diffuser. It performs identical to the original glass version but has the added strength ceramic cups bring. The ceramic version comes only in 2.4mm tungsten size and will thread on a 45V44 or the Furick gas lens 33217GL / 11617GL. This kit does not require Orings.

The Fupa 12 cup will handle up to 200 amps non-continuance. Recommended for DC only applications.

Features:

2.8mm Thick Ceramic
2 Each
Made in the USA

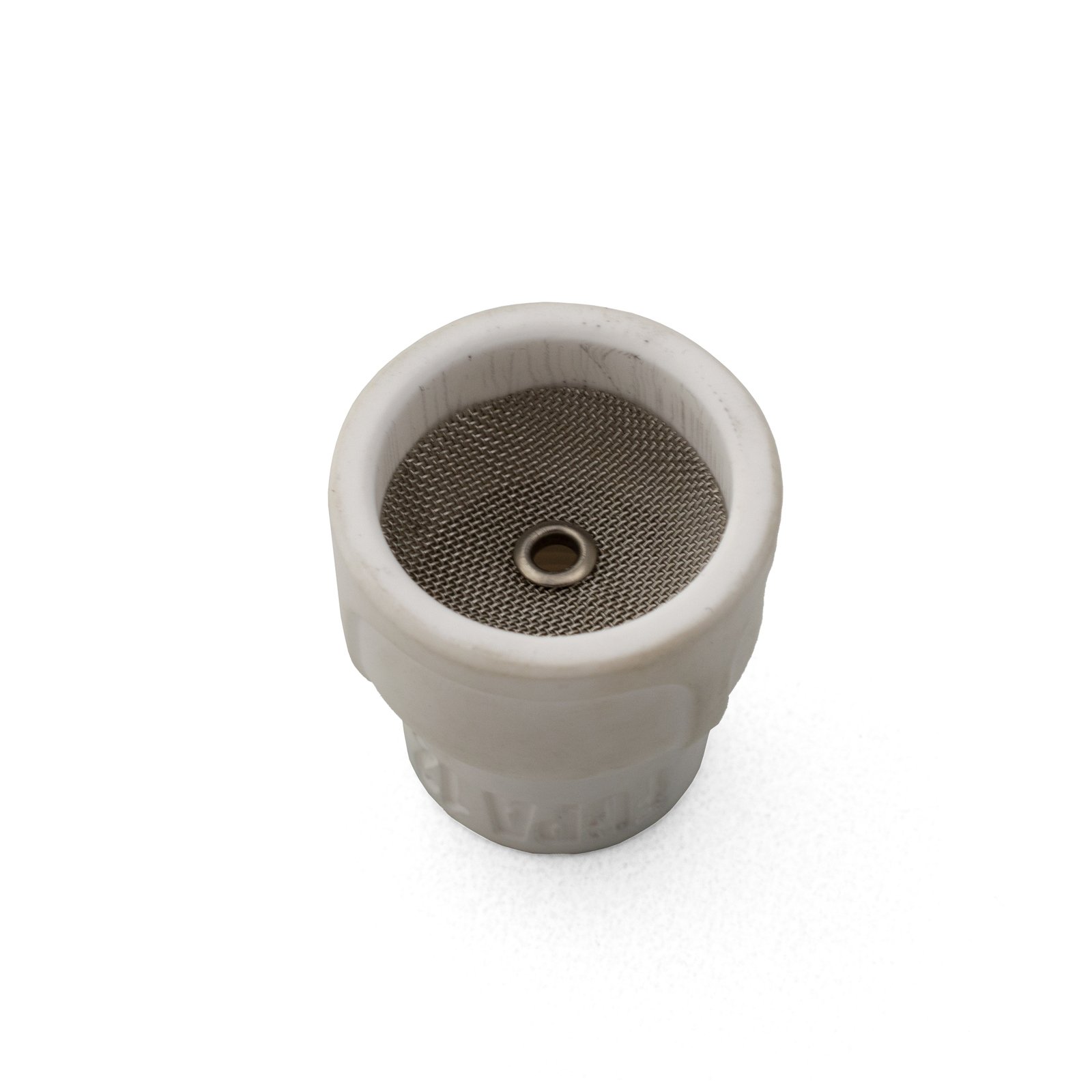

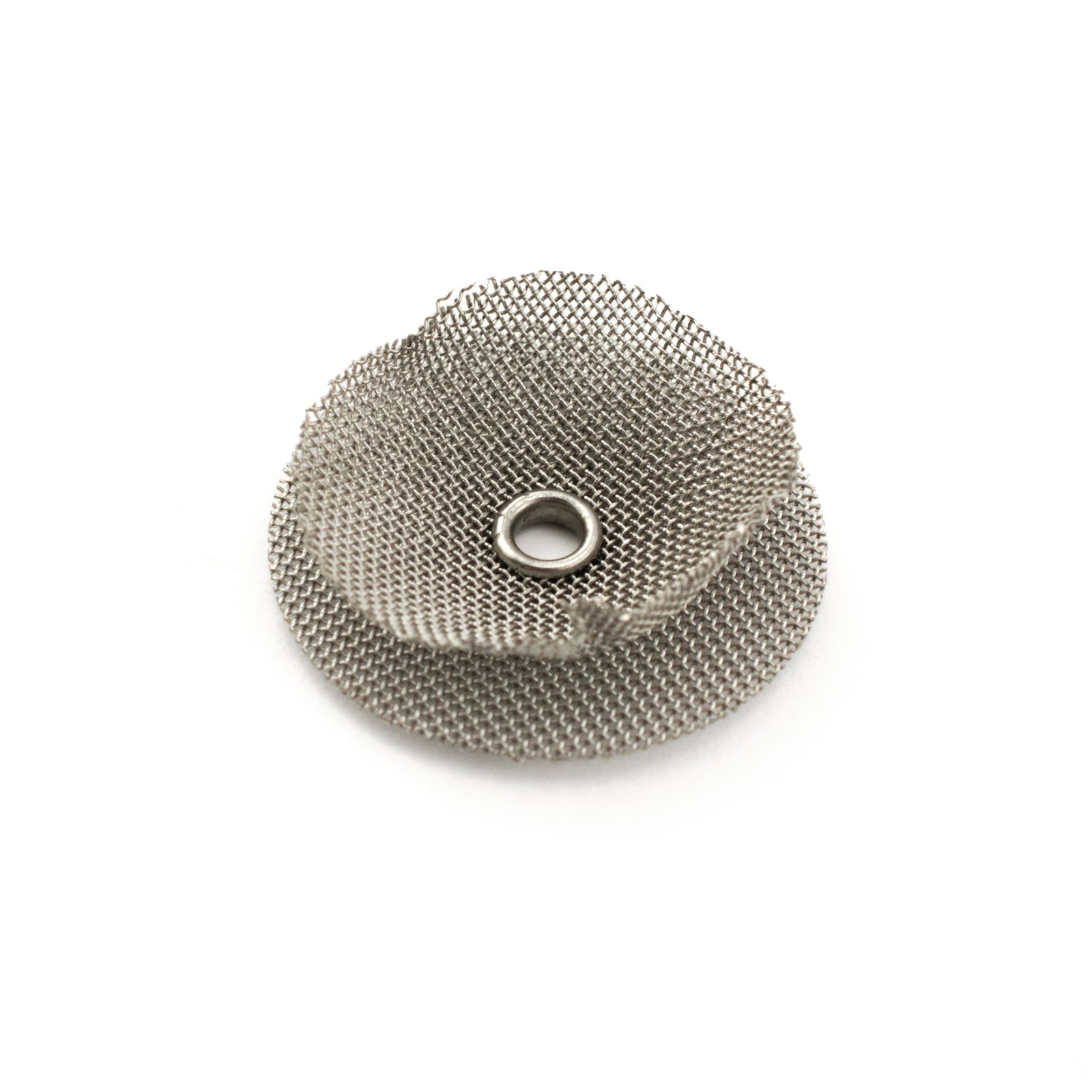

Utilizes a second mesh filter for consistent gas coverage over the welding material

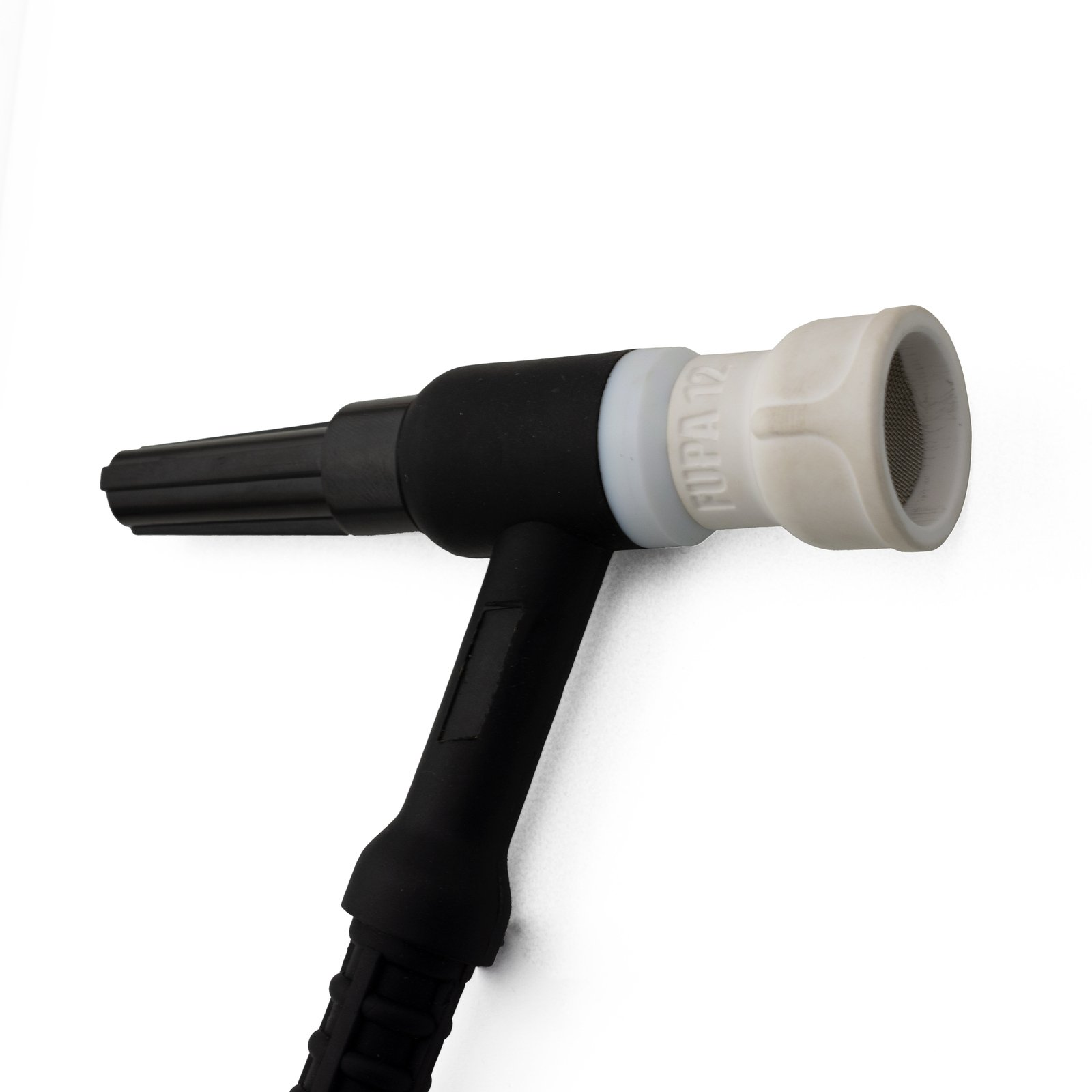

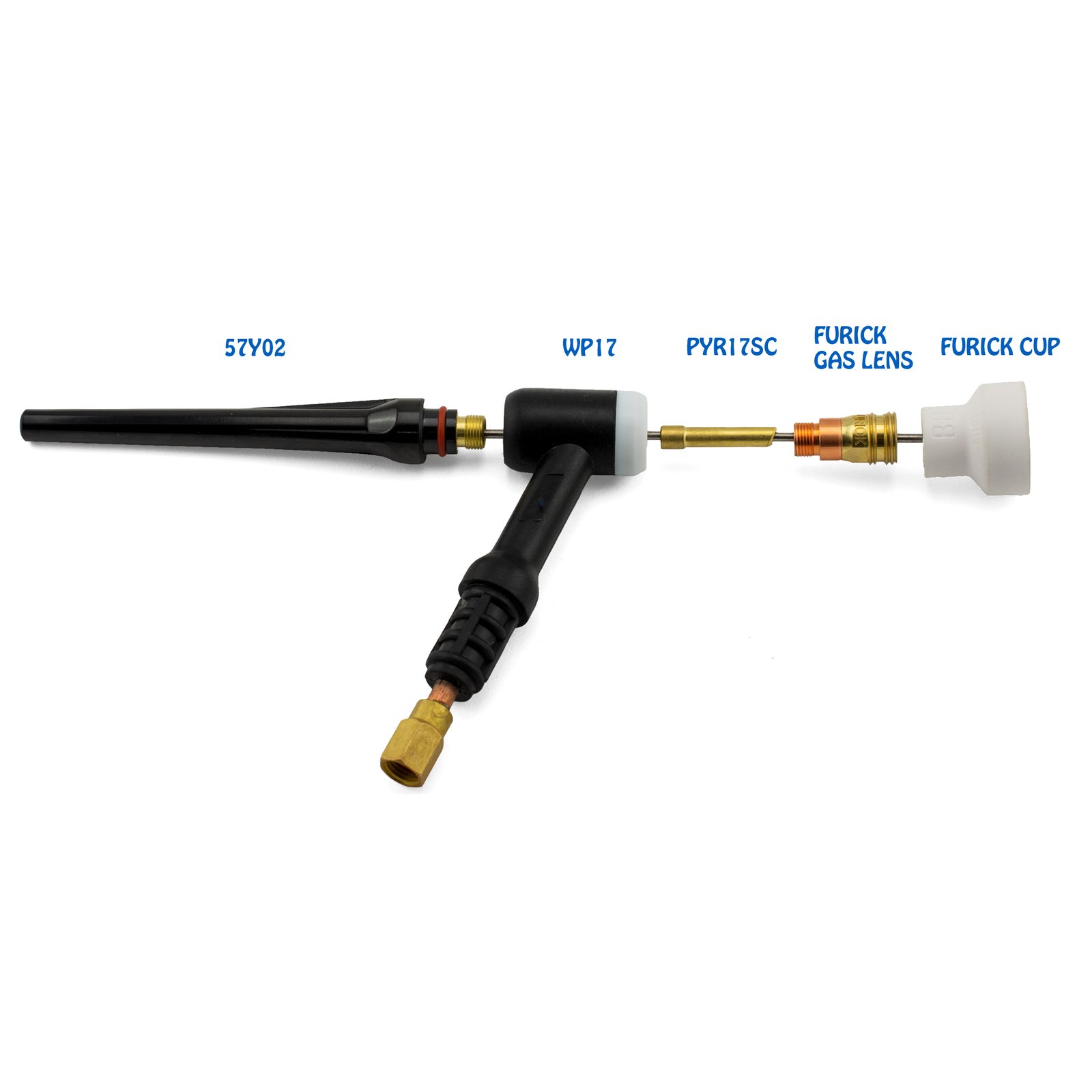

For use with a standard 17 / 26 series torch the cup will require a gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
For use with a standard 9 / 20 series torch the cup is compatible with standard gas lens’ (pn: 45V43, 45V44, 45V45)

Dimensions:

Bore ID: 20mm
Bore OD: 25.8mm
Length: 27mm
Ceramic Thickness: 2.8mm
Gas Lens Mesh Bore: 2.7mm
