HJC40 Welding Gauge: Fillet, Bevel Angle, Gap, Undercut Measure Tool
$49.00
Product Introduction
HJC40 Welding Gauge – a professional welding inspection tool for measuring fillet, bevel angle, gap size, and undercut. Made of stainless steel with laser engraving scales, sturdy, durable and easy to read.
Product Parameters
| Weight | 144g |
| Measuring Range | Crown Height: 0-10mm; Width: 0-40mm; Undercut Depth: 0-5mm; Fillet Height: 0-12mm; Bevel Angle: ¡Ü150¡ã |
| Material | Stainless Steel |
| Package Size | 98mm x 76mm x 23mm |
HJC40 Welding Gauge – Precision Welding Inspection Tool for Professional Weld Quality Control
Ensure flawless welds with the HJC40 Universal Welding Gauge¡ªyour all-in-one solution for accurate weld inspection. Whether you’re verifying fillet dimensions, bevel angles, or undercut depths, this professional-grade tool delivers reliable measurements to meet industry standards. Crafted for durability and precision, it¡¯s the essential companion for welders, inspectors, and quality control teams.
Core Specifications
| Parameter | Details |
|---|---|
| Product Name | Universal Welding Gauge HJC40 |
| Material | Stainless Steel Construction |
| Weight | 144g |

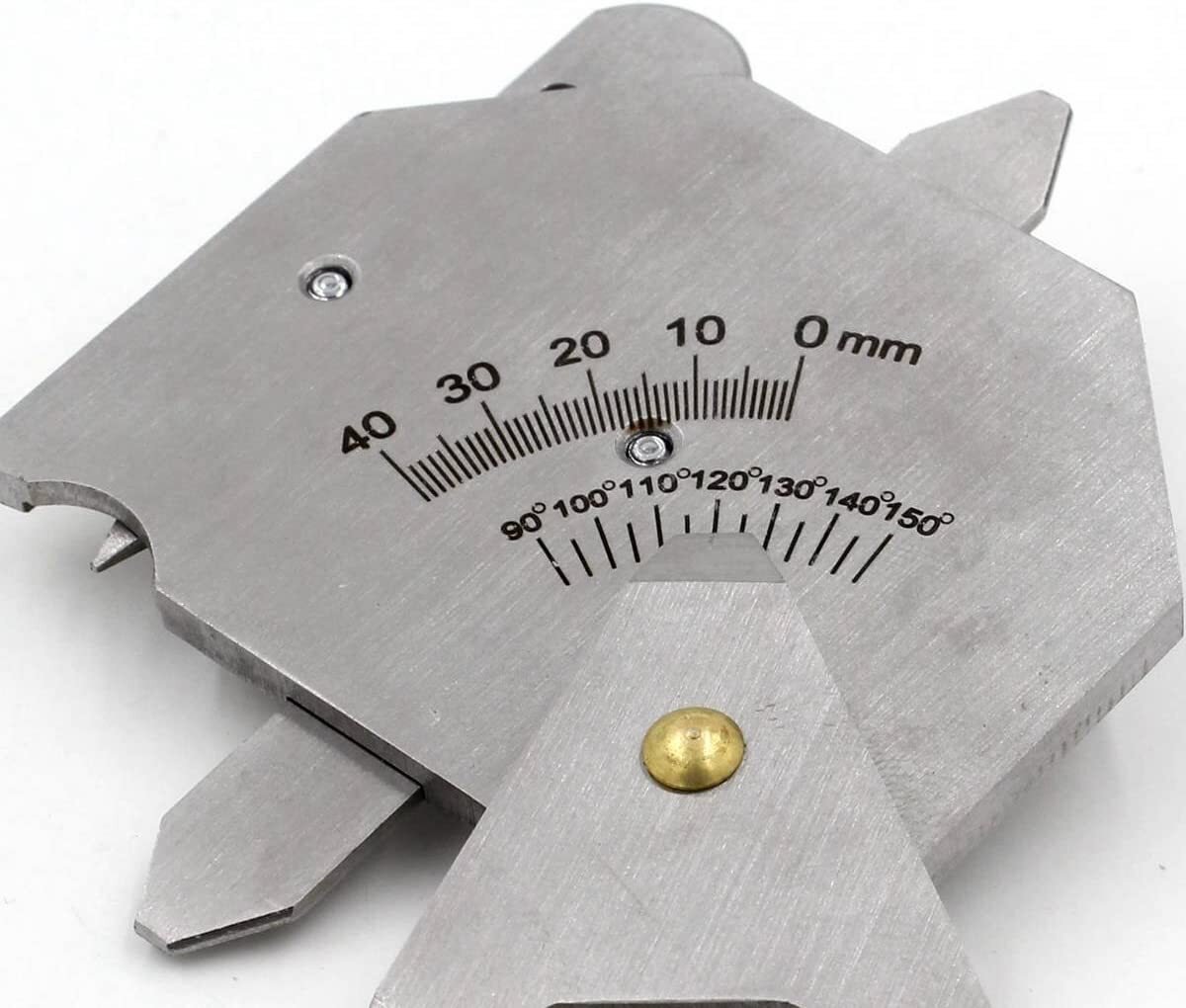

| Measuring Ranges | Crown Height: 0-10mm; Width: 0-40mm; Undercut Depth: 0-5mm; Fillet Height: 0-12mm; Fillet Thickness: 0-15mm; Bevel Angle: ¡Ü150¡ã; Gap Size: 0.5-5mm |

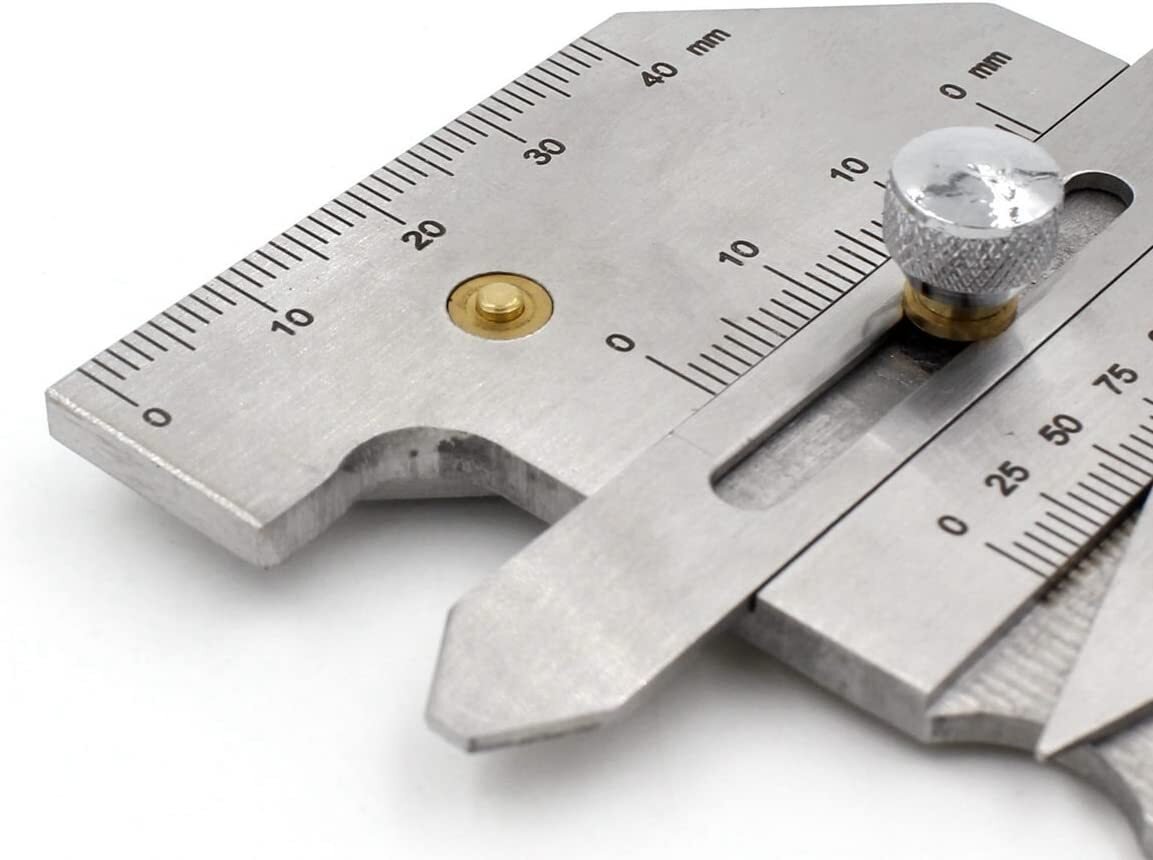

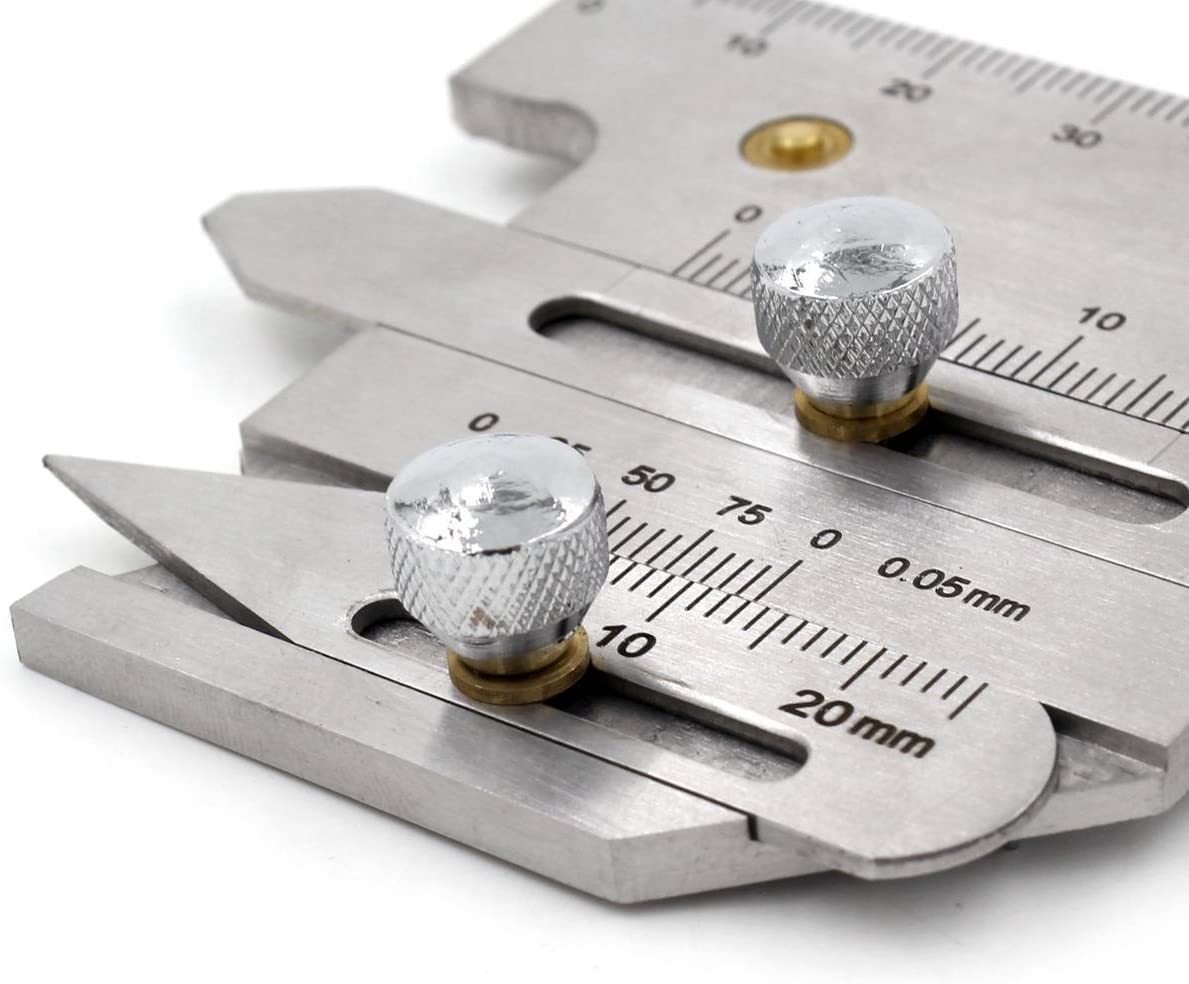

| Scale Type | Laser Engraving (Wear-Resistant & Easy to Read) |
| Design Features | Highly Polished, Deburred, Smooth Operation |

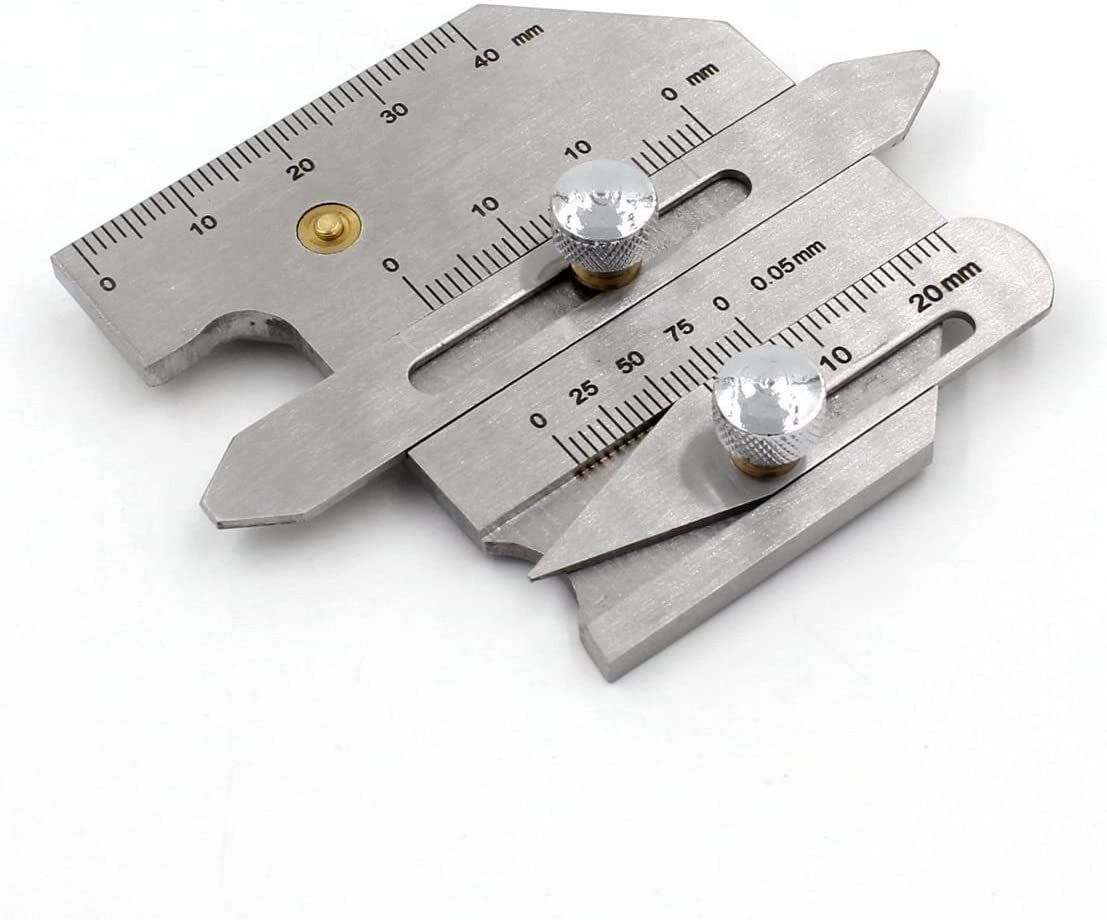

| Components | Main Scale, Height Gauge, Undercut Depth Gauge, Multi-Purpose Gauge |
| Packaging | Plastic Box (98mm x 76mm x 23mm) |
| Brand | Cobra High-Quality Welding Gauge |
| Application | Weldment Groove Angles, Heights, Widths, Clearances, Undercut Depths |
Why Choose HJC40 Welding Gauge?
Stainless Steel Durability: Built to withstand harsh workshop environments, ensuring long-term reliability.
Precision Laser Scales: Clear, wear-resistant markings for accurate readings every time.
Multi-Functional Design: Measures 8 critical weld parameters with a single tool, eliminating the need for multiple gauges.
Smooth Operation: Deburred edges and polished finish for easy handling and precise adjustments.
Applications
Ideal for welding inspection in industries such as construction, manufacturing, oil & gas, and automotive. Perfect for verifying weld quality in fillet welds, beveled joints, and gap measurements during pre- and post-weld checks.
Quality Assurance
As a leading Chinese manufacturer of welding equipment, we adhere to strict quality control standards. The HJC40 gauge undergoes rigorous testing to ensure accuracy and durability, backed by our commitment to professional-grade tools.
FAQ
Q: What measurements can the HJC40 gauge perform?
A: It measures crown height, width, undercut depth, fillet height/thickness, bevel angle (¡Ü150¡ã), and gap size (0.5-5mm).
Q: Is the scale easy to read in low light?
A: Yes, laser engraving ensures high contrast and readability even in dim conditions.
Q: How is the gauge packaged?

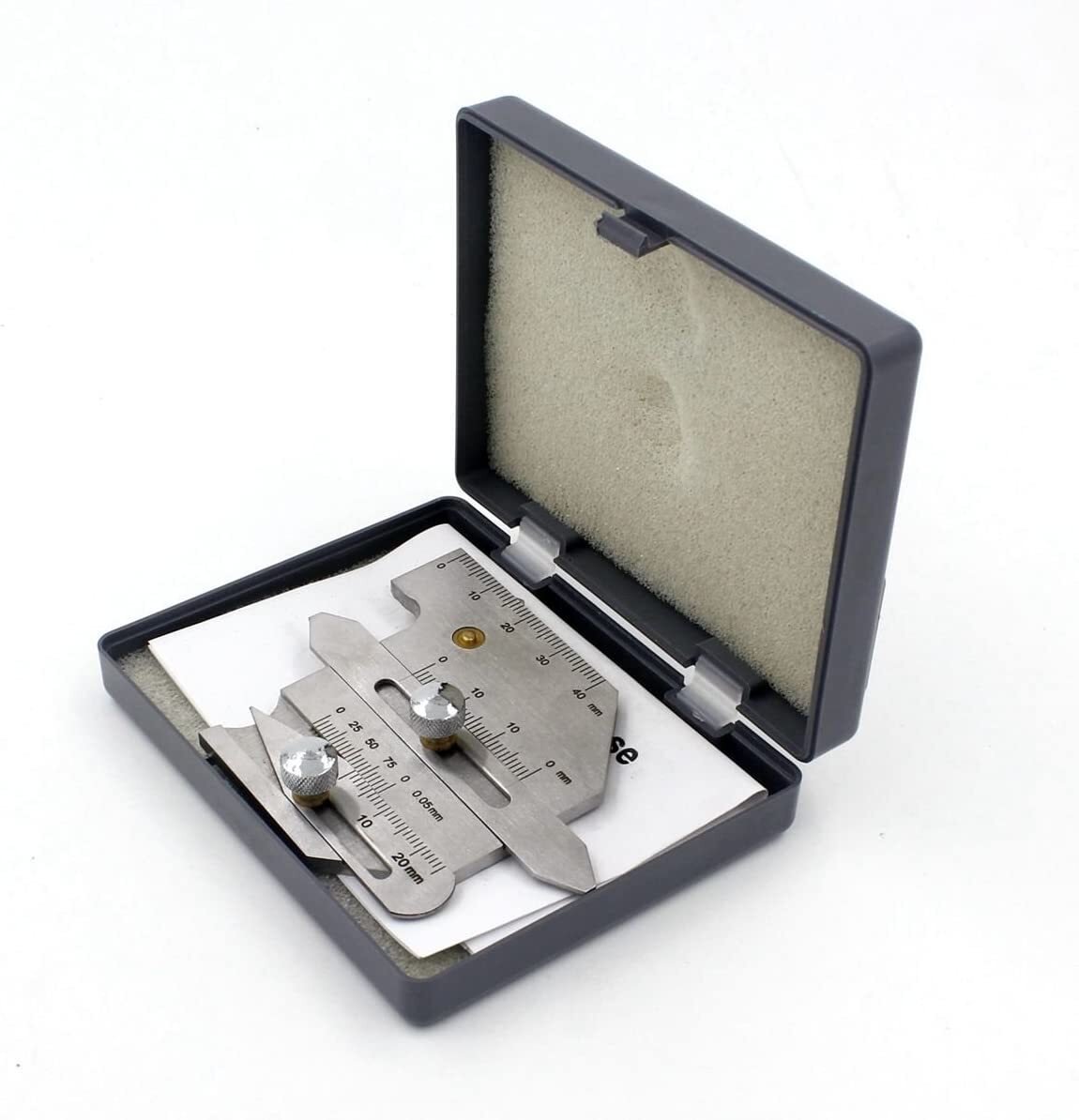

A: It comes in a protective plastic box (98mm x 76mm x 23mm) for safe storage and transport.
Ready to elevate your weld inspection process? Contact us today for bulk pricing, technical support, or custom requirements¡ªyour trusted partner in welding precision.
