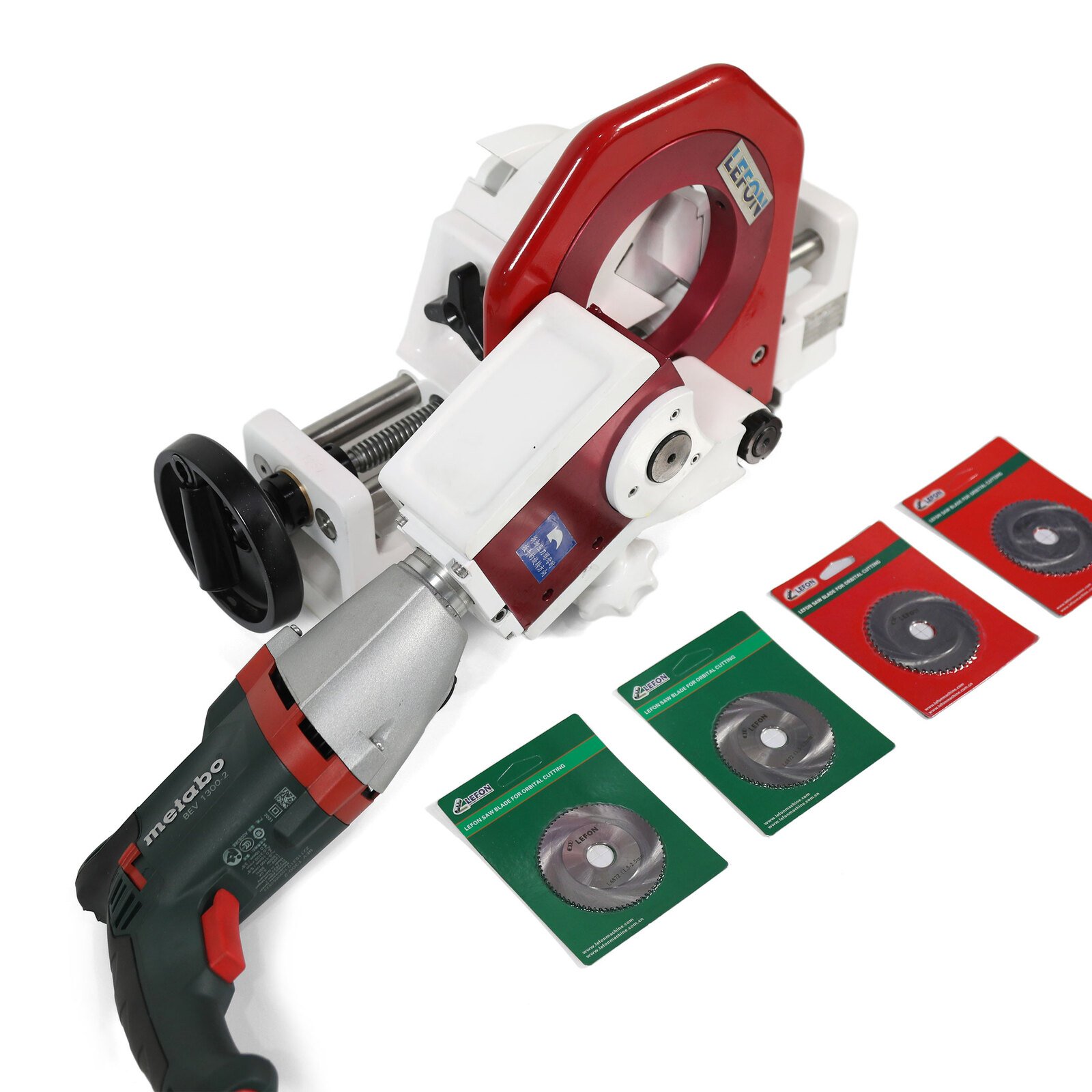

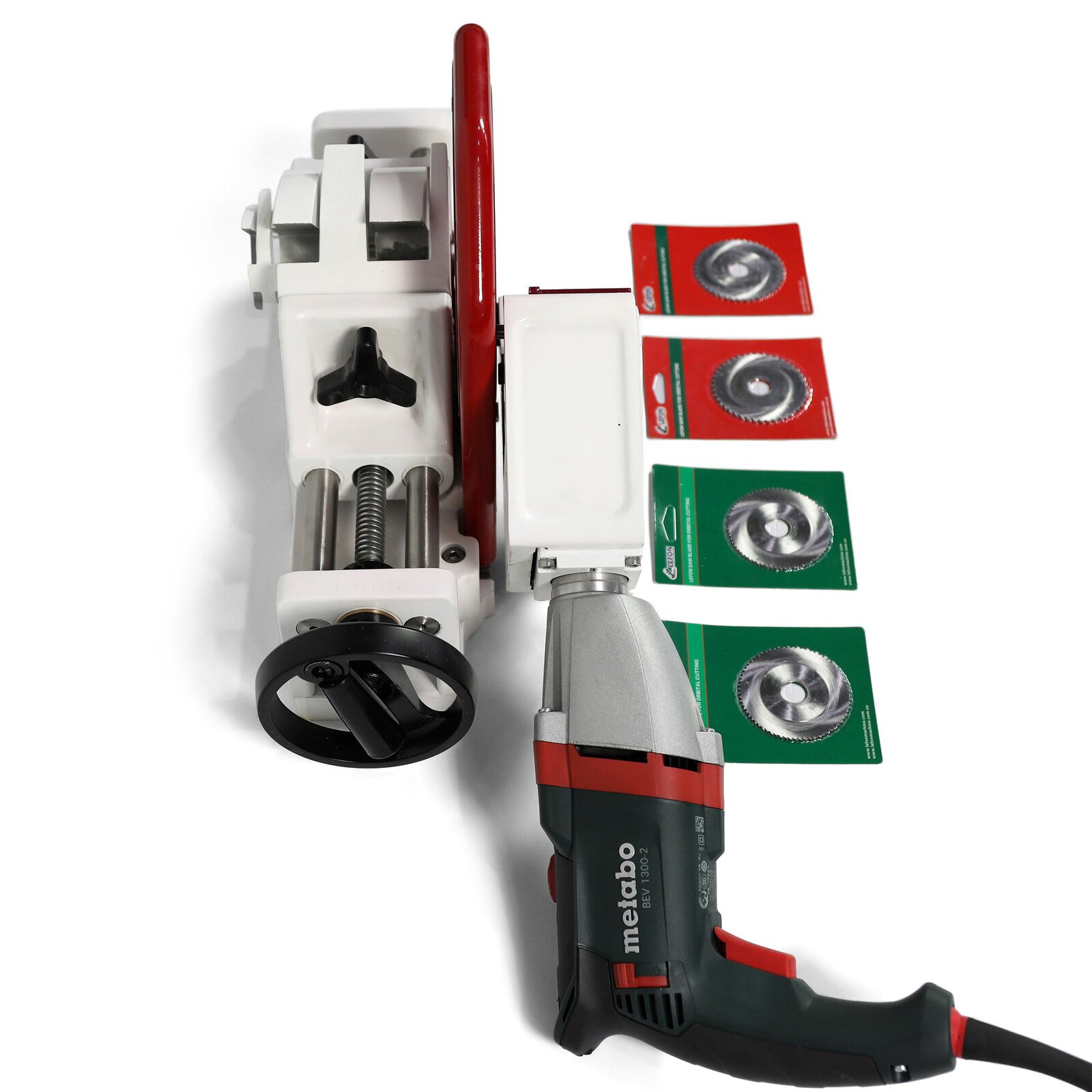

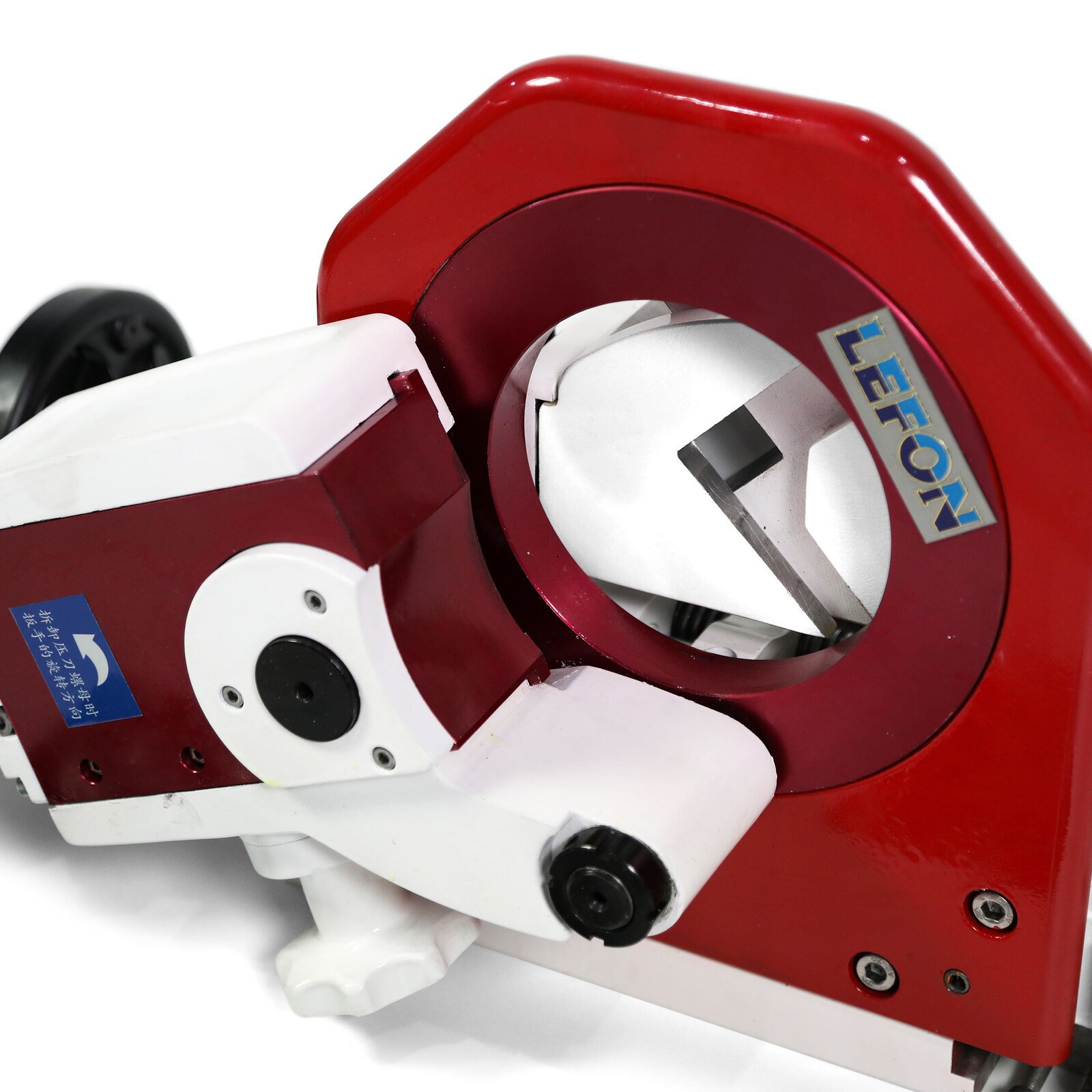

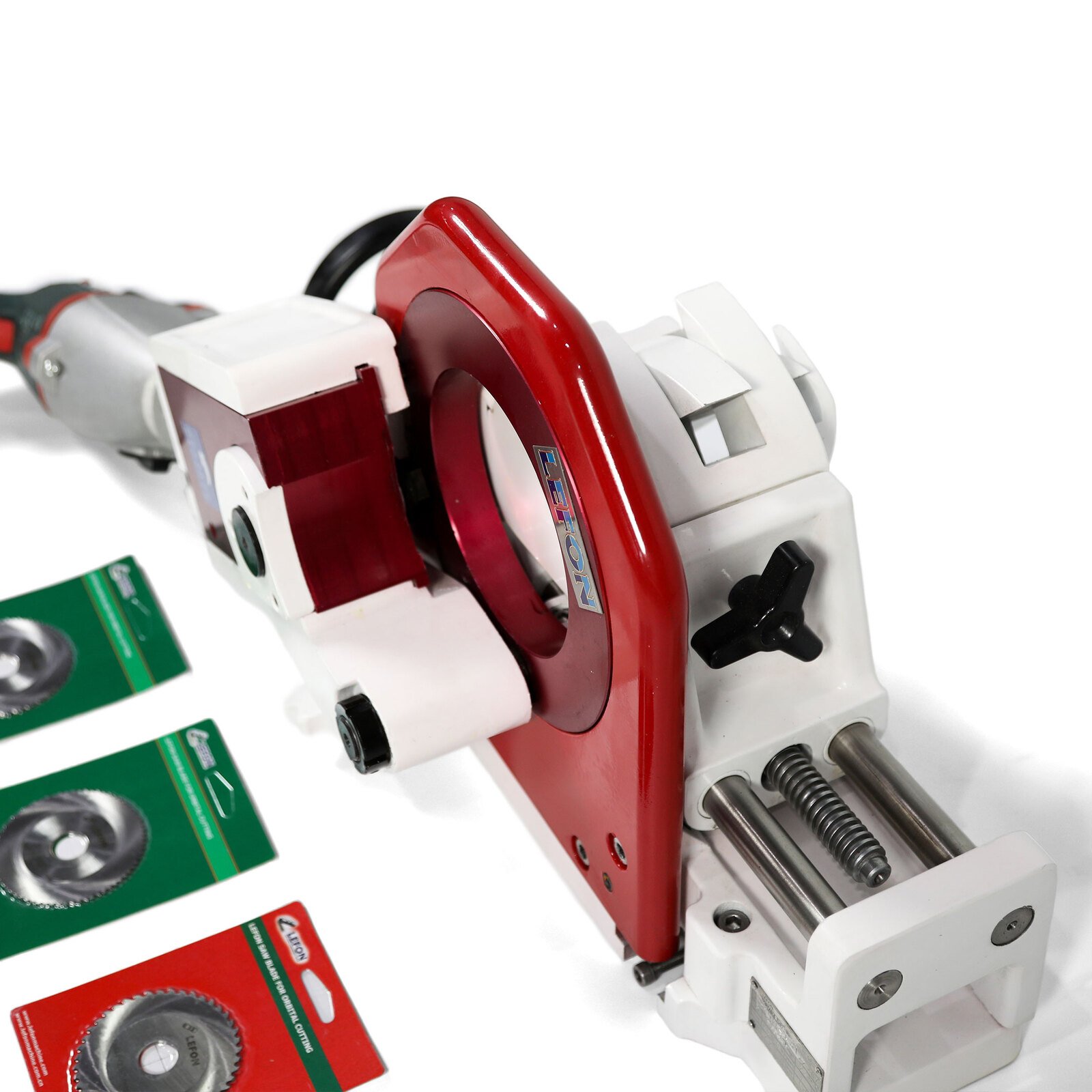

Lefon Lite 4 Portable Pipe Saw Orbital Bevelling Cutter
$4,980.00
Product Introduction
A portable orbital pipe saw/cutter for precise square cuts and beveling of metal pipes. Features cold cutting to prevent thermal distortion, fast clamping, and easy setup. CE and ISO certified, ideal for stainless steel, aluminum, copper, and plastic pipes.
Specifications
| Model | Lite4 |
| Cutting Range | 6mm-120mm (?”-4″) pipes, 0.5-3mm thickness |
| Weight | 25kg |
| Power | 1000W, 100-220V |
| Blade Speed | 150 RPM |
Lefon Lite 4 Portable Orbital Pipe Saw – Precision Cutting & Bevelling Machine
Transform your metal pipe cutting operations with the Lefon Lite 4, the industry-leading portable orbital pipe saw trusted by professionals worldwide. Engineered for accuracy and efficiency, this cutting-edge machine delivers square, clean cuts and bevels in seconds, eliminating post-cut preparation and streamlining your workflow. Whether you’re working with stainless steel, aluminum, copper, or plastic pipes, the Lite 4 ensures distortion-free results every time.
Core Specifications
| Model | Lite4 |
| Cutting Range | ?” – 4″ (6mm – 120mm) pipes |
| Wall Thickness Capacity | 0.5mm – 3mm |
| Weight | 25kg |
| Blade Speed | 150 RPM |
| Power Output | 1000W |
| Voltage | 100-220V / 50-60Hz |
| Motor | Metabo Drive Motor |
| Certifications | CE & ISO Standards |
| Cutting Time | Single rotation (seconds) |
Key Features & Benefits
? Cold Cut Technology: Prevents thermal distortion for weld-ready finishes
? Simultaneous Cutting & Bevelling: Equipped for 30¡ã beveling with compatible blades

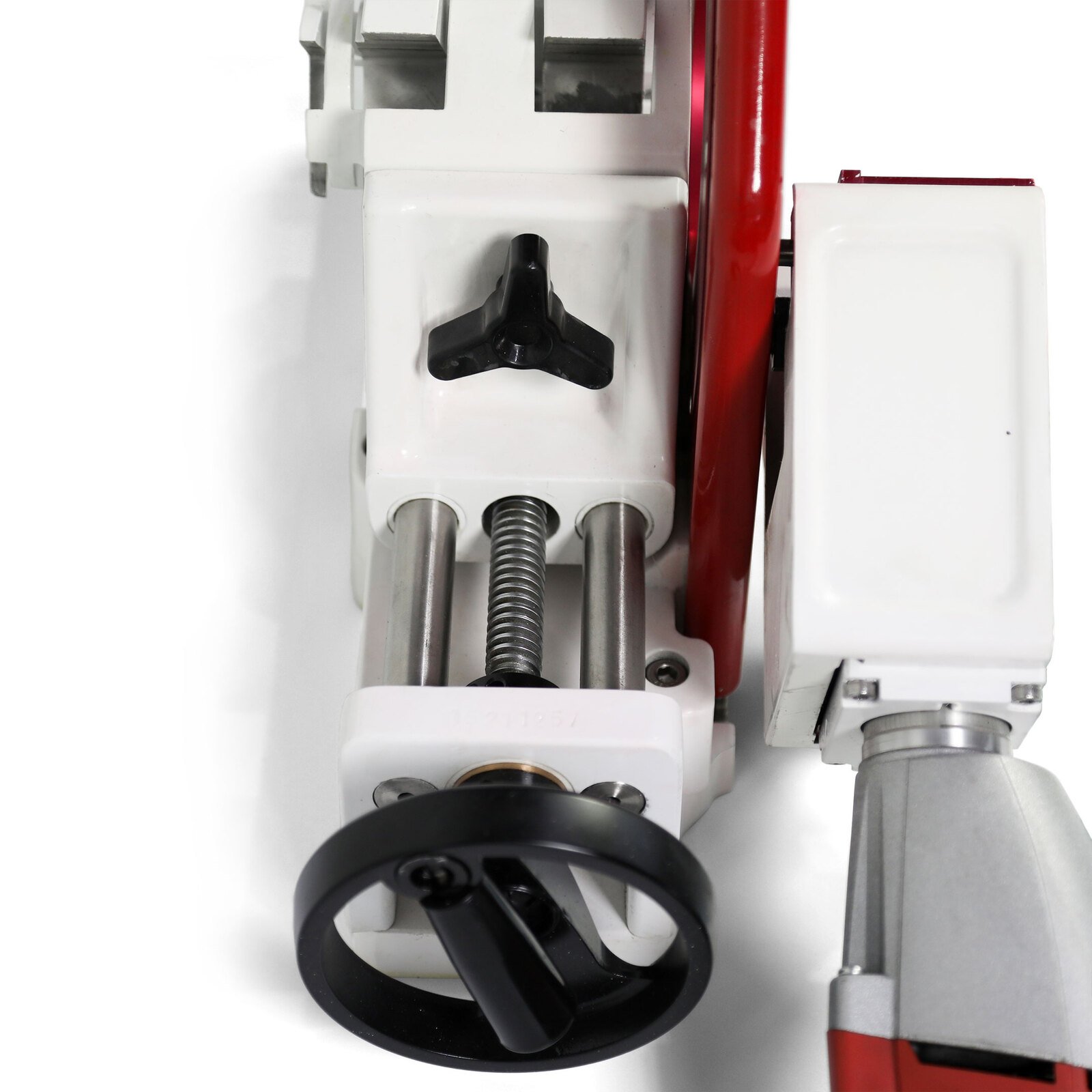

? Fast Clamping System: Deformation-free pipe securing for quick setup
? Variable Speed Control: Optimize cutting for different wall thicknesses
? Lightweight Design: 25kg construction for easy portability across job sites
Applications
Ideal for stainless steel, low/unalloyed steel, casting materials, non-ferrous metals, copper, aluminum, and plastic pipes. Perfect for pipeline construction, industrial maintenance, and welding preparation.
Blade Performance
European-made HSS TIALN coated blades deliver exceptional durability: up to 150 cuts on 2″ schedule 40 stainless steel pipes with proper lubrication (use XDP 2000 cutting fluid, part 81210). Available blades include 63mm (64 teeth), 68mm (44 teeth), and 68mm 30¡ã cut & bevel blades.
Quality Assurance
Manufactured to CE and ISO standards, the Lefon Lite 4 combines German engineering precision with Metabo’s renowned motor reliability. Backed by Hampdon Industrial’s industry expertise, ensuring consistent performance in demanding environments.
Why Choose Lefon Lite 4?
Unlike traditional cutters, the Lite 4 eliminates the need for post-cut finishing, reduces material waste, and cuts setup time by 50%. Its portable design outperforms stationary machines while delivering professional-grade results.
FAQ
Q: What materials can it cut?
A: Stainless steel, carbon steel, aluminum, copper, and plastic pipes.
Q: Is training required?
A: Minimal setup ¨C intuitive design allows quick operator familiarization.
Q: Can it handle different pipe diameters?
A: Yes, easily adjusts for ?” to 4″ pipes without complex reconfiguration.
Ready to elevate your pipe cutting efficiency? Contact us today for a personalized quote and expert advice on blade selection and accessories.
