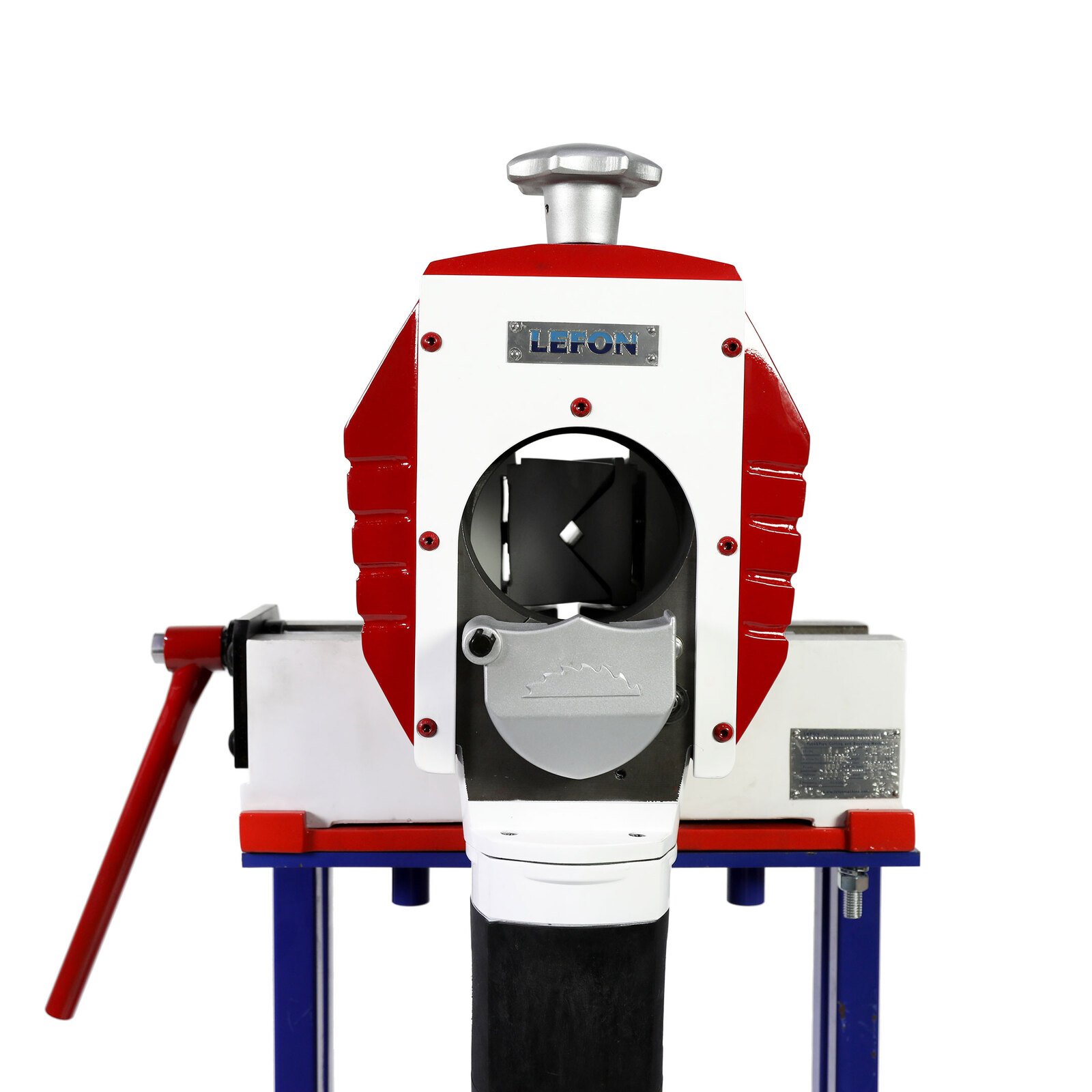

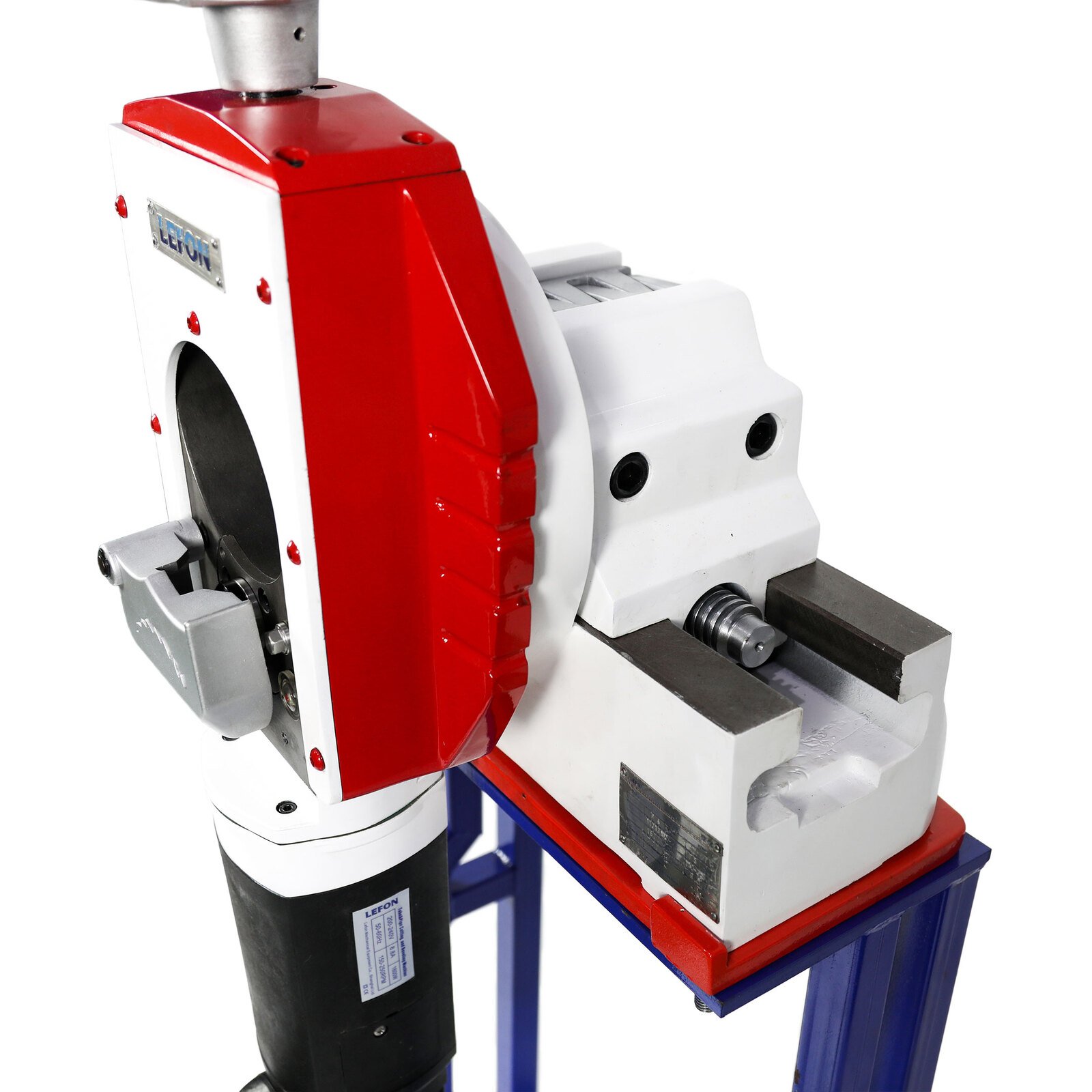

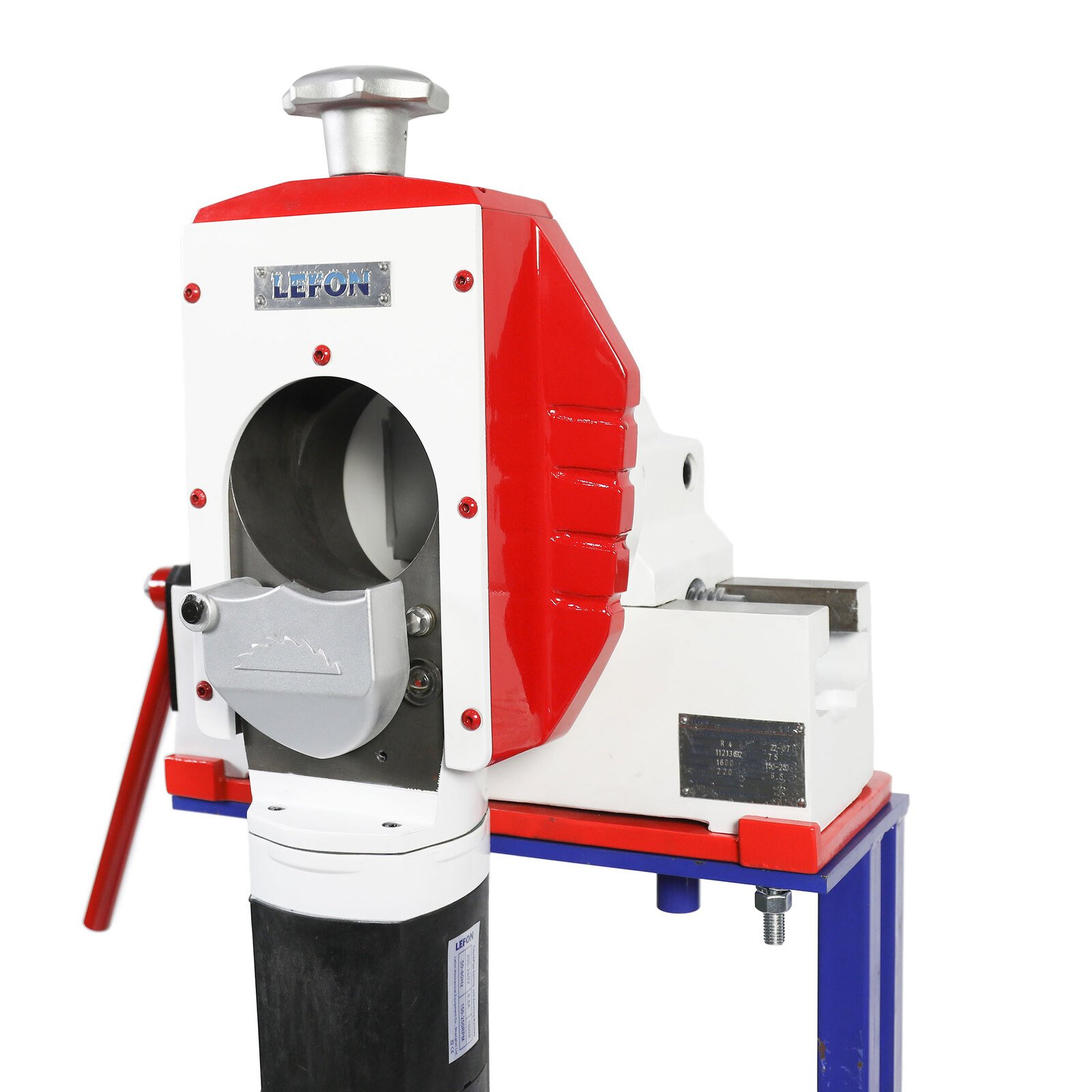

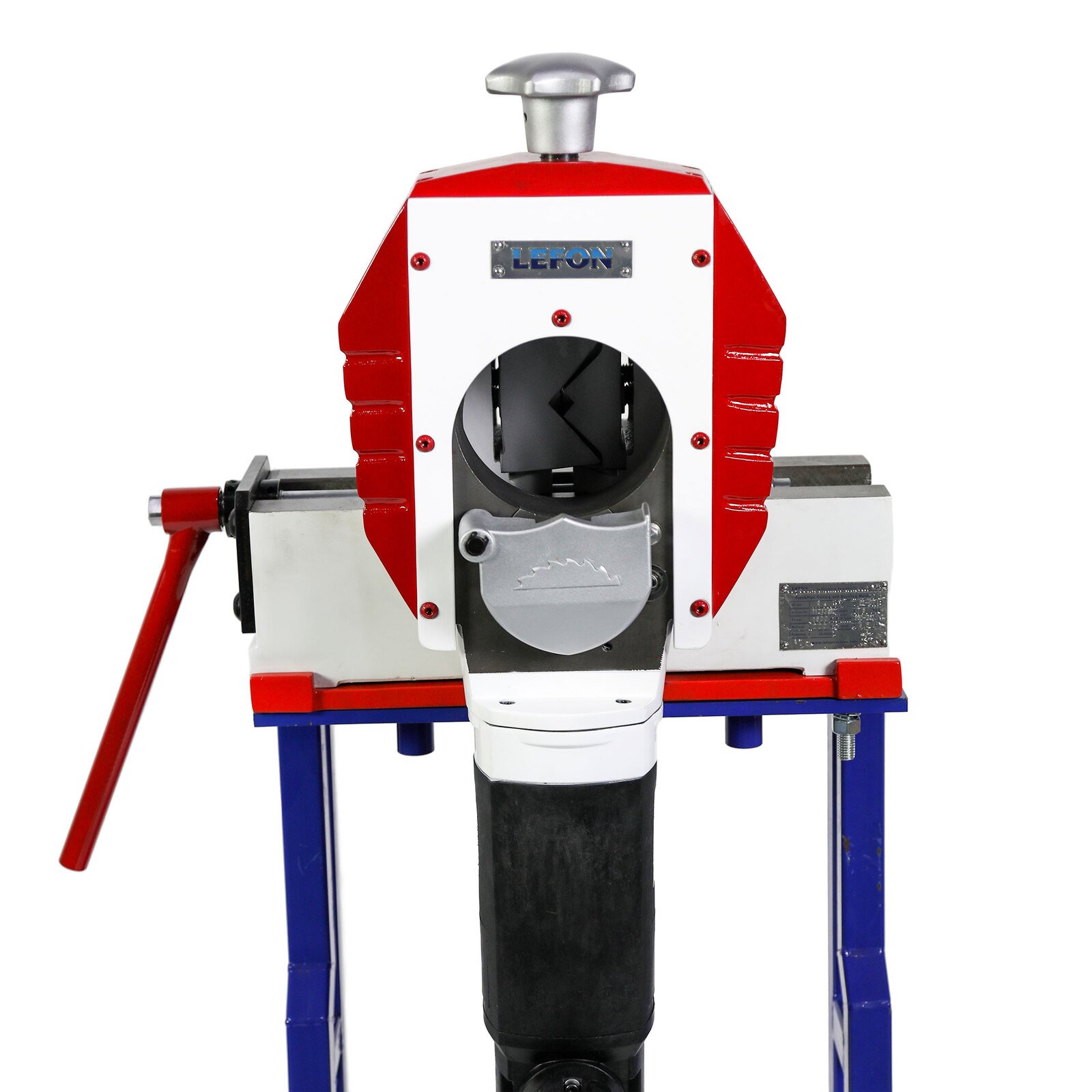

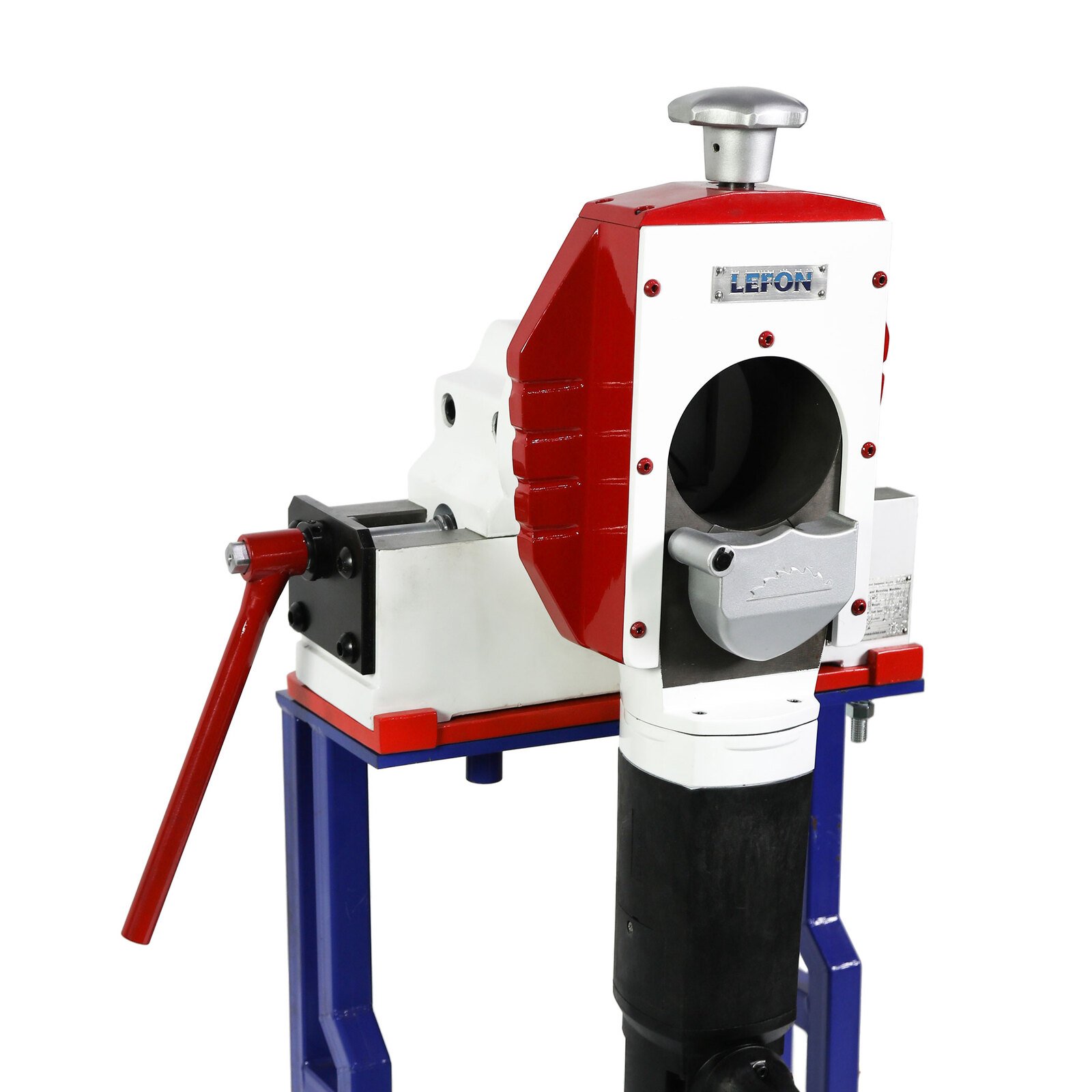

Lefon R4 Orbital Pipe Saw Cutter Bevelling Machine
$6,999.00
Product Introduction
The Lefon R4 Orbital Pipe Saw is a cost-effective, reliable solution for square cutting and bevelling metal pipes. It delivers precise, clean cuts without thermal distortion, suitable for stainless steel, aluminum, copper, and plastic pipes. With fast clamping and easy setup, it completes cuts in seconds per rotation, ideal for orbital welding preparation.
Key Specifications
| Cutting Range | ?”-4″ (19mm-120mm), 1.0-7mm thickness |
| Power | 1600W, 100-220V/50-60Hz |
| Blade Speed | 150-250rpm (adjustable) |
| Weight | 75kg |
| Standards | CE & ISO certified |
Lefon R4 Orbital Pipe Saw: Precision Cutting & Bevelling Machine for Metal Pipes
Core Features
- Cuts ?” – 4″ (19mm-120mm) pipes with 1.0-7mm wall thickness
- Simultaneous cutting & beveling with 30¡ã bevel blade option
- Cold cut technology prevents thermal distortion
- 1600W power, 150-250rpm variable speed control
- 75kg lightweight design for portability
- CE & ISO certified quality construction
- Fast, deformation-free clamping system
- One-rotation cutting (seconds per cut)
- Precise 90¡ã square cuts for orbital welding prep
- Compatible with TIALN-coated HSS blades (150+ cuts per blade)
Technical Specifications
| Model | R4 (GF4 equivalent) |
| Power Output | 1600W (100-220V/50-60Hz) |
| Cutting Range | 19-120mm (?”-4″) diameter |
| Wall Thickness | 1.0-7mm |
| Blade Speed | 150-250rpm (adjustable) |
| Weight | 75kg |
| Certifications | CE, ISO standards |
Applications
Ideal for stainless steel, carbon steel, cast metals, non-ferrous metals (copper, aluminum), and plastic pipes. Perfect for industrial piping, HVAC, oil & gas, and fabrication workshops requiring precision weld preparation.
What’s Included
- Cutting machine with base plate
- 3 standard TIALN-coated HSS blades
- Ring spanner & 2 hex wrenches
- Lefon saw blade lubricant
- Operations manual & spare parts list
Why Choose Lefon R4?
Unlike conventional saws, the R4 delivers cold, distortion-free cuts in seconds, eliminating post-cut finishing. Its variable speed control ensures optimal performance across pipe thicknesses, while the European-made blades guarantee 150+ cuts per blade with proper maintenance.
FAQ
Q: What blade should I use for beveling?
A: 30DEGCB 68mm x 2.0mm TIALN blade (30¡ã cut & bevel)
Q: Is a stand included?
A: No, stand sold separately
Q: What lubricant is required?
A: Use XDP 2000 cutting fluid (part 81210)
Request a Quote
Ready to enhance your pipe cutting efficiency? Contact our team for competitive pricing and technical support. Send inquiry now for expert advice on blade selection and application-specific solutions.
