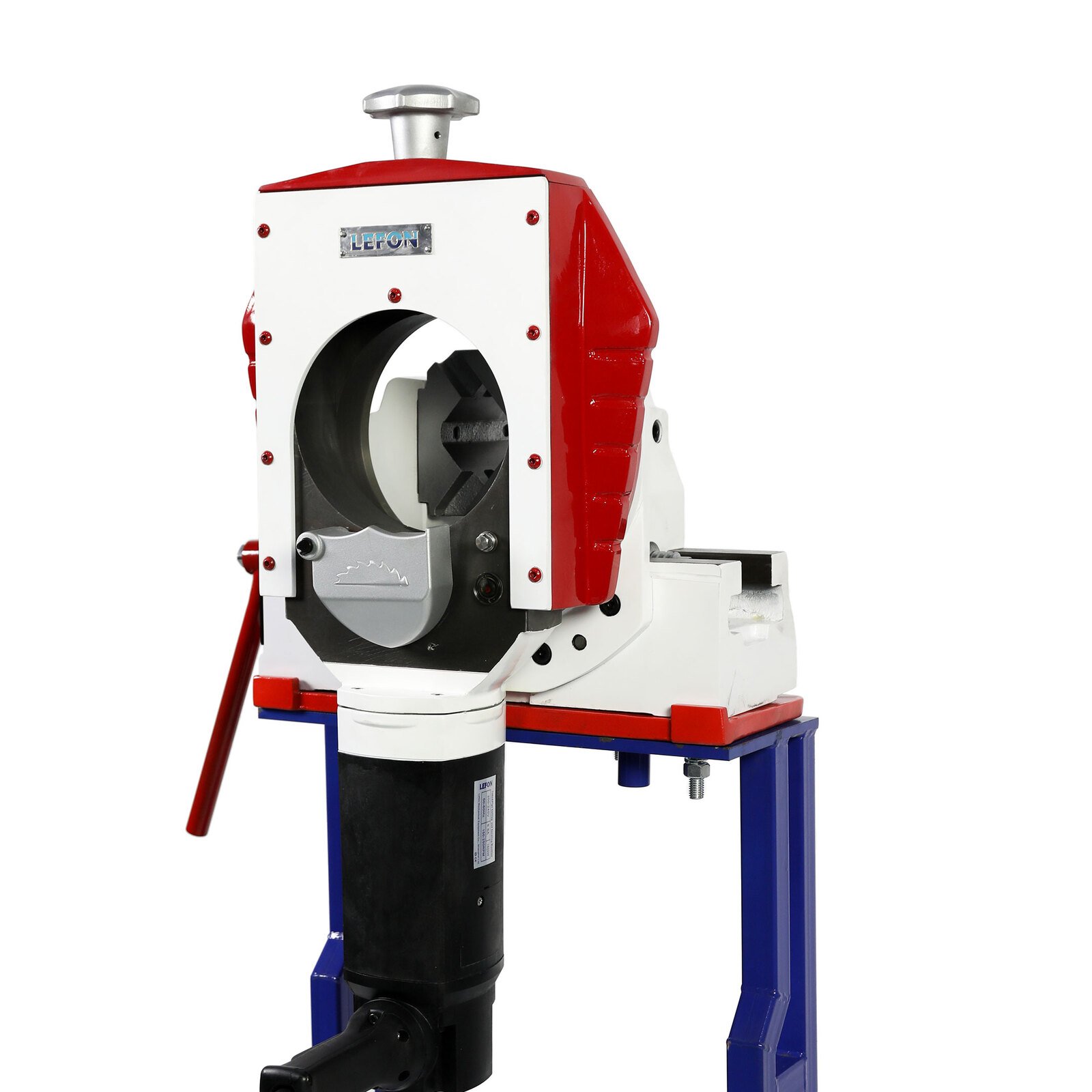

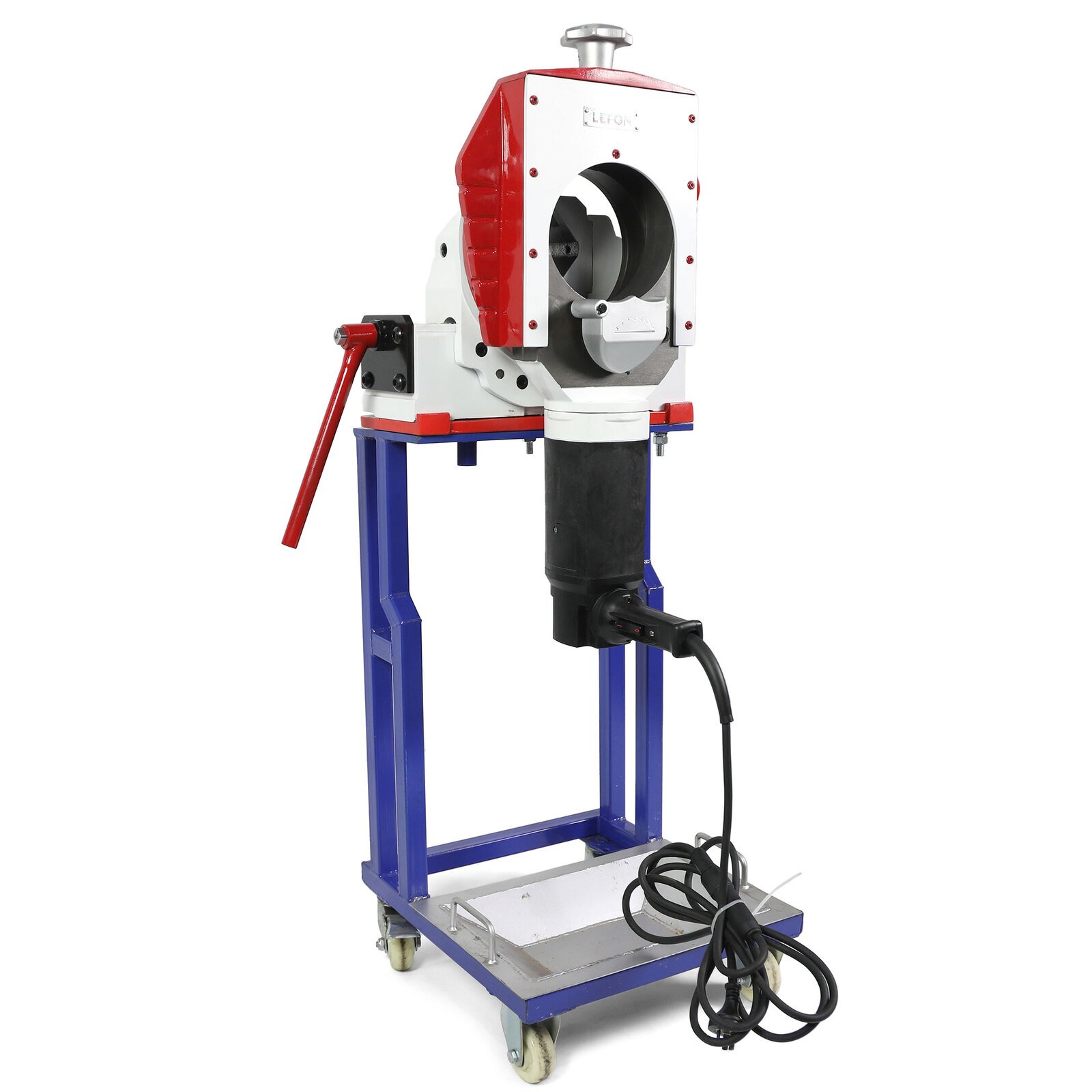

Lefon R6 Orbital Pipe Saw Cutter Bevelling Machine
$4,999.00
Product Introduction
LEFON R6 Orbital Pipe Saw is a cost-effective and reliable solution for square cutting and beveling metal pipes. It ensures precise, clean cuts without thermal distortion, suitable for stainless steel, copper, aluminum, and plastic pipes. Ideal for orbital welding preparation with easy setup and fast one-rotation cutting.
Specifications
| Cutting Range | 3″-6″ (85mm-182mm), 2.0-10mm thickness |
| Power | 1600W, 100-220V/50-60Hz |
| Blade Speed | 150-250rpm |
| Weight | 90kg |
| Standards | CE & ISO certified |
Lefon R6 Orbital Pipe Saw: Precision Cutting & Bevelling for Professional Metalworking
Effortlessly achieve square, clean cuts and precise bevels on metal pipes with the Lefon R6 Orbital Pipe Saw¡ªyour ultimate solution for efficient, distortion-free cutting. Engineered to meet CE and ISO standards, this machine eliminates post-cut preparation, making it ideal for orbital welding applications. Ready to elevate your workflow? Contact us today for a personalized quote!
Core Specifications
| Model | R6 (GF equivalent) |
| Pipe Size Range | 3″-6″ (85mm-182mm) |
| Wall Thickness | 2.0mm-10mm |
| Blade Speed | 150-250rpm (adjustable) |
| Power Output | 1600W |
| Voltage | 100-220V / 50-60Hz |
| Weight | 90kg |
| Cutting Type | Cold cut (no thermal distortion) |
| Certifications | CE, ISO |
| Cutting Time | Single rotation (seconds) |
Key Performance Features
- Simultaneous Cutting & Bevelling: Mount a beveling blade to complete cuts and bevels in one step, saving time.
- Precision Right-Angle Cuts: Ensures square, clean edges¡ªno additional preparation needed for welding.
- Deformation-Free Clamping: Fast, secure pipe holding prevents warping during cutting.
- Variable Speed Control: Optimize cutting speed for different wall thicknesses and materials.
Applications
Ideal for stainless steel, low/unalloyed steel, casting materials, non-ferrous metals (copper, aluminum), and plastic pipes. Perfect for industrial manufacturing, construction, and pipeline projects.
In the Box
1x Base plate, 1x Cutting machine, 3x Standard blades, 1x Ring spanner, 2x Hexagon socket wrenches, 1x Lefon saw blade lubricant, 1x Operations manual, 1x Spare parts list.
Accessory Recommendations
- XDP 2000 Cutting Fluid (Part 81210): Essential for optimal blade performance and longevity.
- HSS Blades: TIALN-coated options for extended life (e.g., 63mm x 1.6mm 64T, 30¡ã cut-and-bevel blades).
Quality & Reliability
Manufactured to strict CE and ISO standards, the Lefon R6 delivers consistent results. European-made HSS blades, when used with proper lubrication, can achieve 150+ cuts on 2″ schedule 40 stainless steel per blade.
Why Choose Lefon R6?
Unlike conventional saws, the R6 combines speed, precision, and versatility. Its cold-cut technology prevents material distortion, while the intuitive setup works across pipe diameters¡ªno specialized training required.
FAQ
- Does it include a stand? No, a stand is not included.
- Can it cut plastic pipes? Yes, it handles plastic pipes alongside metals.
- Blade replacement difficulty? Simple with included tools; refer to the operations manual.
Ready to streamline your pipe cutting process? Send us an inquiry now to learn more about pricing and availability!
