Hampdon Industrial stocks the premium range of Magmaweld Hardfacing Electrodes. The Magmaweld EH600B is a metal enriched electrode recommended for the multi-layer build-up and surfacing of steel components subjected to metal wear and compressive loading. This smooth running electrode deposits a tough wear resistant recommended for the manual arc build-up and surfacing of agricultural points, shares and tynes, grader and dozer blades, conveyor screws and post hole augers.

Features:

Made in Turkey
2.5mm thickness diameter
350mm length
2.5kg weight
120 Sticks Approximate
Product code – 18006HDEM2

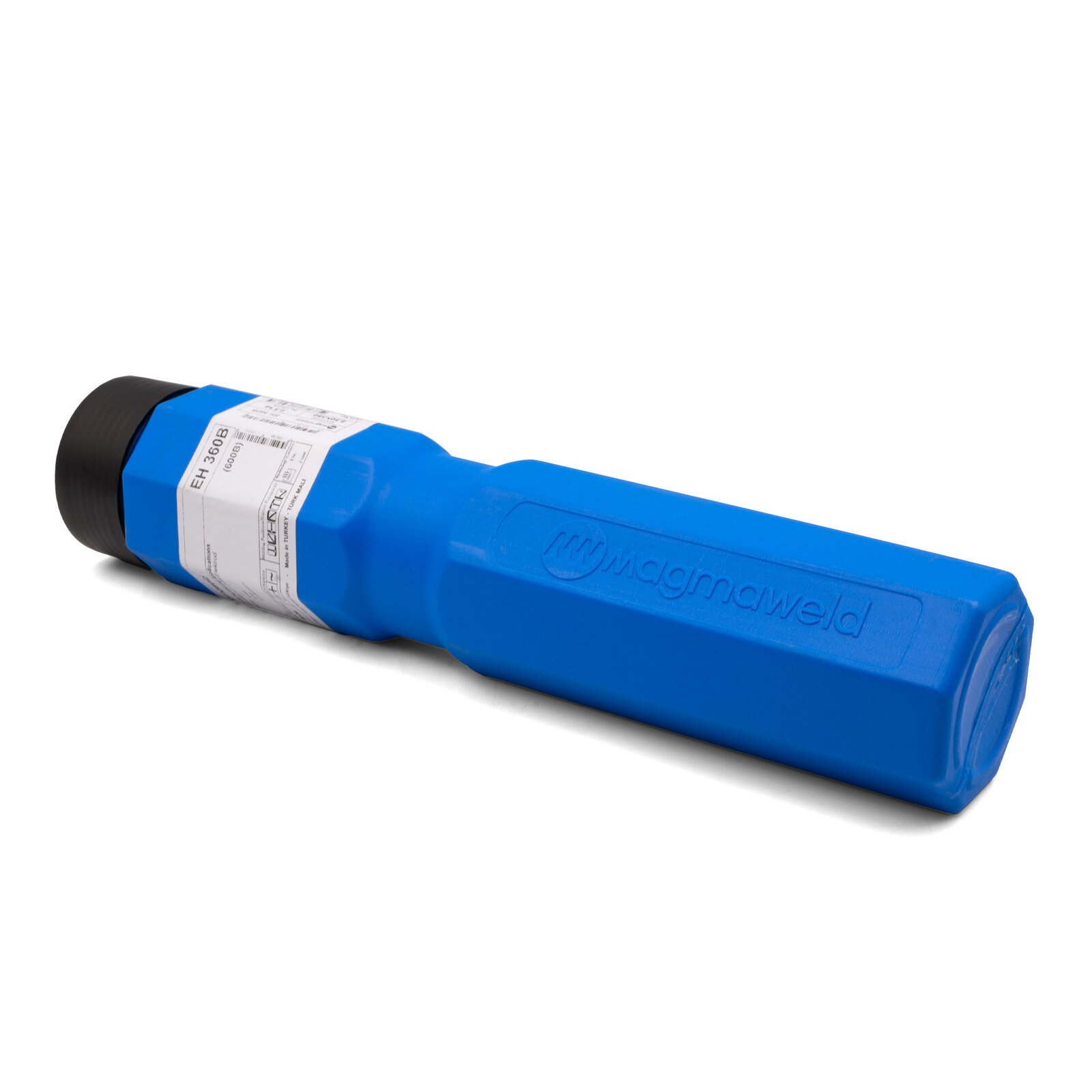

Stick code – EH 360B
Market-leading Magmaweld brand
Industrial Quality
For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
Hampdon Part # 600-2.5-2.5

Properties and Applications:

Thick basic-covered electrode for depositing tough and wear resisting overlays on structural members, subjected to severe wear. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to 600°C. It can be machined only by grinding. Multi-layers deposits will be free of cracks, even without depositing intermediate buffer layers. Only in case of very crack sensitive base metals, a tough buffer layer, made with ESB 42 or EI 307B electrodes, is required. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC. Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws

Manufactured to international standards:

EN 14700
TS EN 14700
DIN 8555
E Fe8
E 6-UM-60-GPT

Typical Chemical Values of Weld Metal

Type of Analysis

C

Si

Mn

P

S

Ni

Cr

Mo

V

Nb

Fe

W

Weld Deposit

0.50

0.80

0.60

0.015

0.006

0.2

8.00

0.50

0.65

0.0001

88.95

0.0001

Typical Mechanical Values of Weld Metal(%)

Test Condition

Hardness (HRc)

Wear Index

As welded

59

62.34 (SiO2)

Welding Position Applications:

PA – Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
PB – Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
PC – Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
PD – Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
PE – Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
PF – 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
