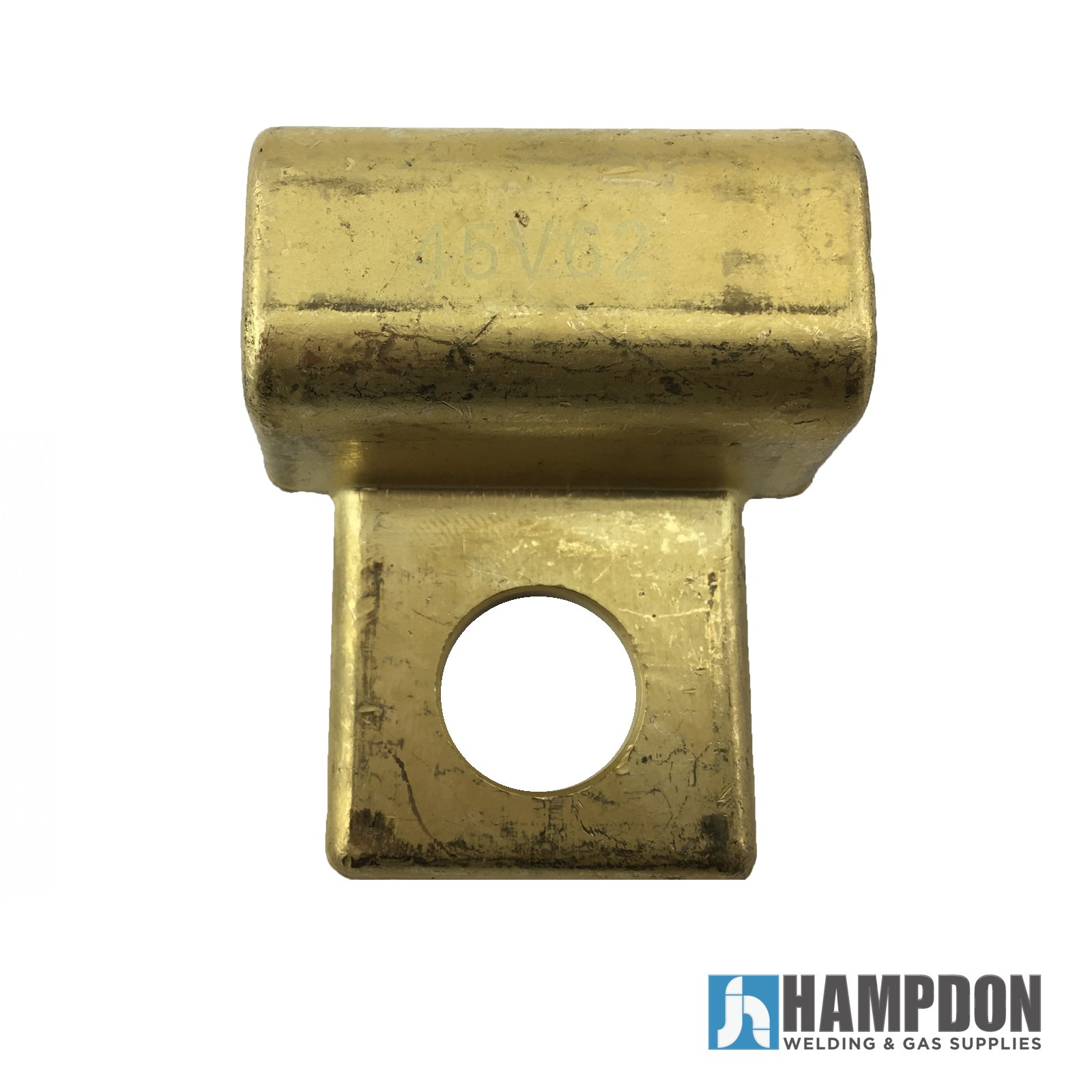

This power cable adapter is machined from solid brass and accepts the standard power cable used on all standard 20 and 18 series water cooled tig torches.

This is used to connect a tig torch to a power source which has a threaded stud for the power output connection.

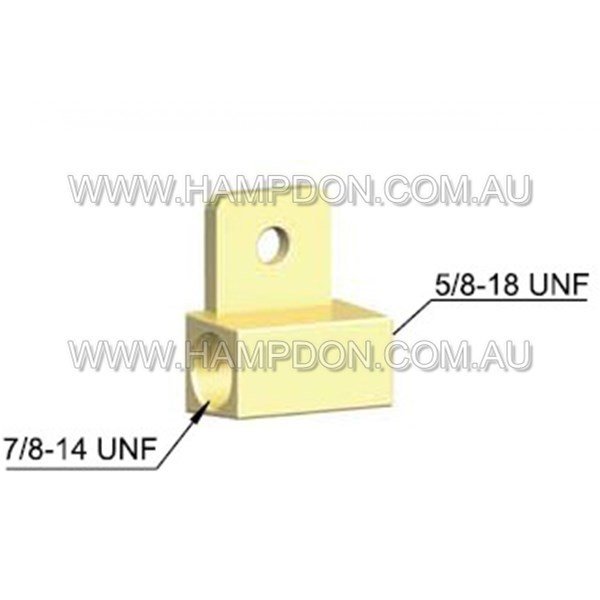

The connection on 18 and 20 series torch is 7/8-14 LH Male.

The outlet is the standard 5/8-18 LH Female connection so it fits the standard water cooler connections used on all domestic welding machines and water coolers.

This power cable adapter fits any 18 and 20 series torch, including the Lincoln PTW-18 and PTW-20 torches, Miller Diamondback DB18 and DB20 torches, along with the Weldcraft WP-18 and WP-20 torches and any Chinese knock off torch providing it is made to standard American torch specifications.

Connects to parts found ion our store

9511N22-5MM

9511N83

PRO20F-12S1UW

PRO20F-24S1UW
