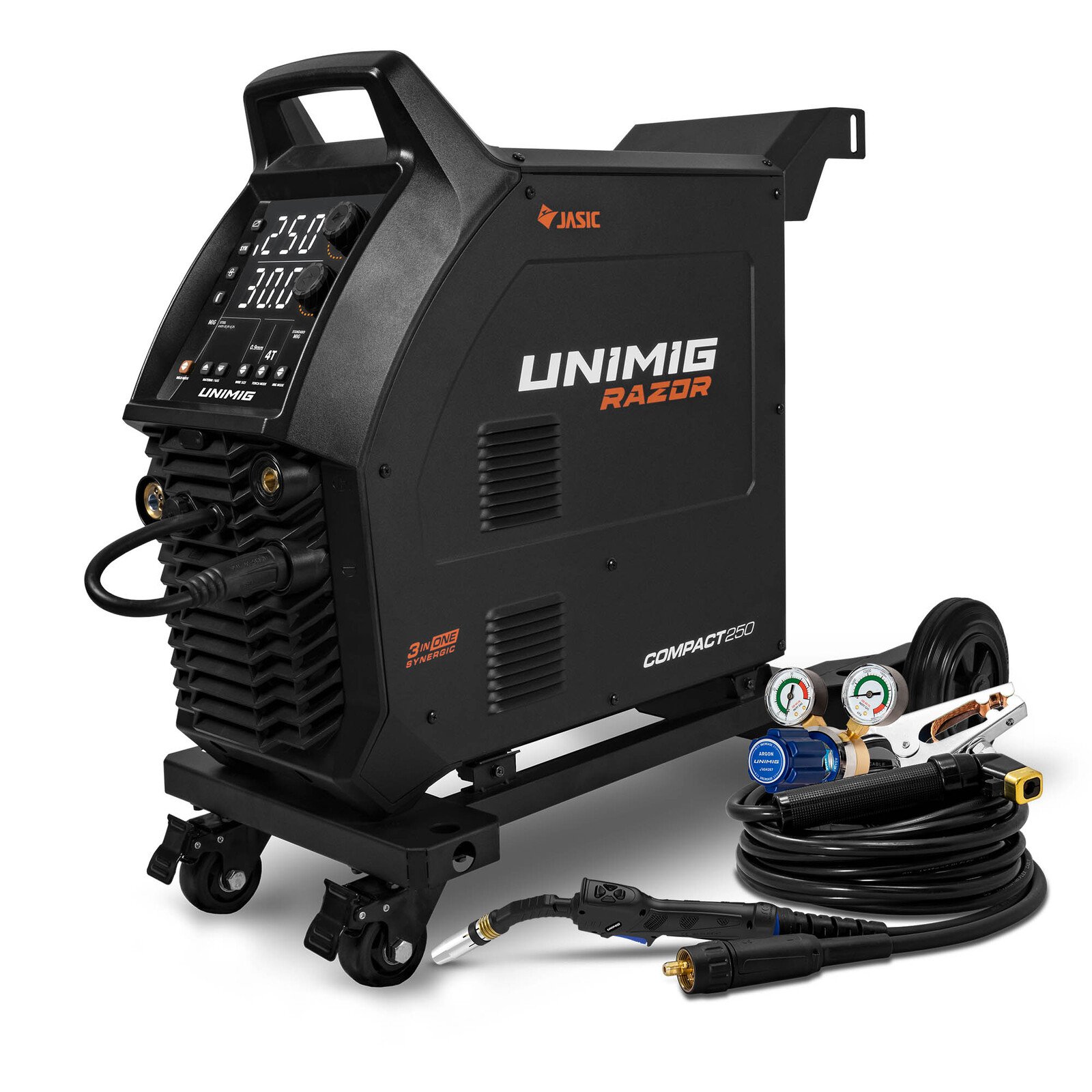

UNIMIG Razor 250 Compact MIG TIG MMA Welder U11010K
$2,599.00
Product Introduction
The UNIMIG Razor 250 Compact is a 240V inverter-based multi-function welder with MIG, TIG, and MMA capabilities. Ideal for professionals and home workshops, it offers stepless voltage/wire feed control, solid metal construction, and a 5-year warranty, ensuring versatile and reliable welding performance.
Key Specifications
| Functions | MIG (Gas/Gasless), TIG (DC Lift Arc), MMA |
| Current Range | MIG: 30-250A; TIG: 5-250A; MMA: 20-220A |
| Wire Size | 0.6-1.2mm (MIG); 2.5-4.0mm (MMA electrodes) |
| Power Supply | 240V Single Phase (15AMP plug required) |
| Weight/Dimensions | 41.3kg; 900¡Á480¡Á760mm |
UNIMIG Razor 250 Compact MIG Multi-Function Welder – TIG – MMA – U11010K
Experience professional-grade welding performance in a portable, multi-functional package with the UNIMIG Razor 250 Compact Welder. Engineered with cutting-edge IGBT inverter technology, this 240V single-phase machine delivers versatile MIG, TIG, and MMA capabilities for workshops, job sites, and home use.
Core Specifications
| Welding Processes | MIG (Gas/Gasless), DC TIG (Lift Arc), MMA |
| Current Range | MIG: 30-250A | TIG: 5-250A | MMA: 20-220A |
| Duty Cycle (40¡ãC) | 20%@250A / 60%@144A / 100%@112A |
| Wire Compatibility | 0.6-1.2mm (5kg/15kg spools) |
| Material Support | Mild Steel, Stainless Steel, Aluminium, Copper, Cast Iron |
| Input Power | 240V Single Phase (15AMP supply plug required) |
| Protection | IP23S Rating, Thermal Overload, VRD |
| Dimensions | 900¡Á480¡Á760mm |
| Weight | 41.3kg |
| Warranty | 5-Year Nationwide Coverage |
Key Features & Performance
? 4-Geared Wire Drive: Ensures smooth wire feeding for consistent bead quality

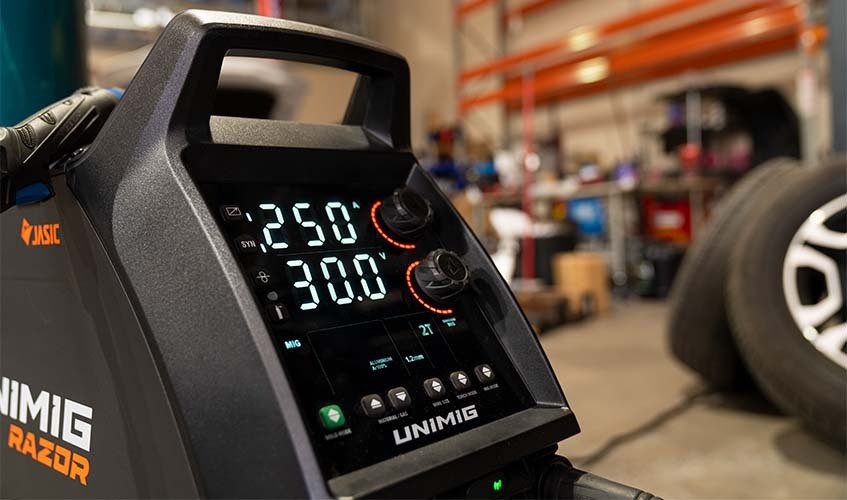

? Stepless Controls: Precise voltage and wire feed adjustment for optimal settings
? Burnback & Inductance Control: Reduces wire waste and improves arc stability
? Solid Metal Construction: Industrial-grade durability for demanding environments
? Spool Gun/Push Pull Compatibility: Extends capabilities for aluminium welding
Applications
Ideal for general engineering, maintenance, rural workshops, panel beating, and DIY projects. Handles materials from 1mm thin sheets to 12mm thick plates with superior results.
Included Accessories

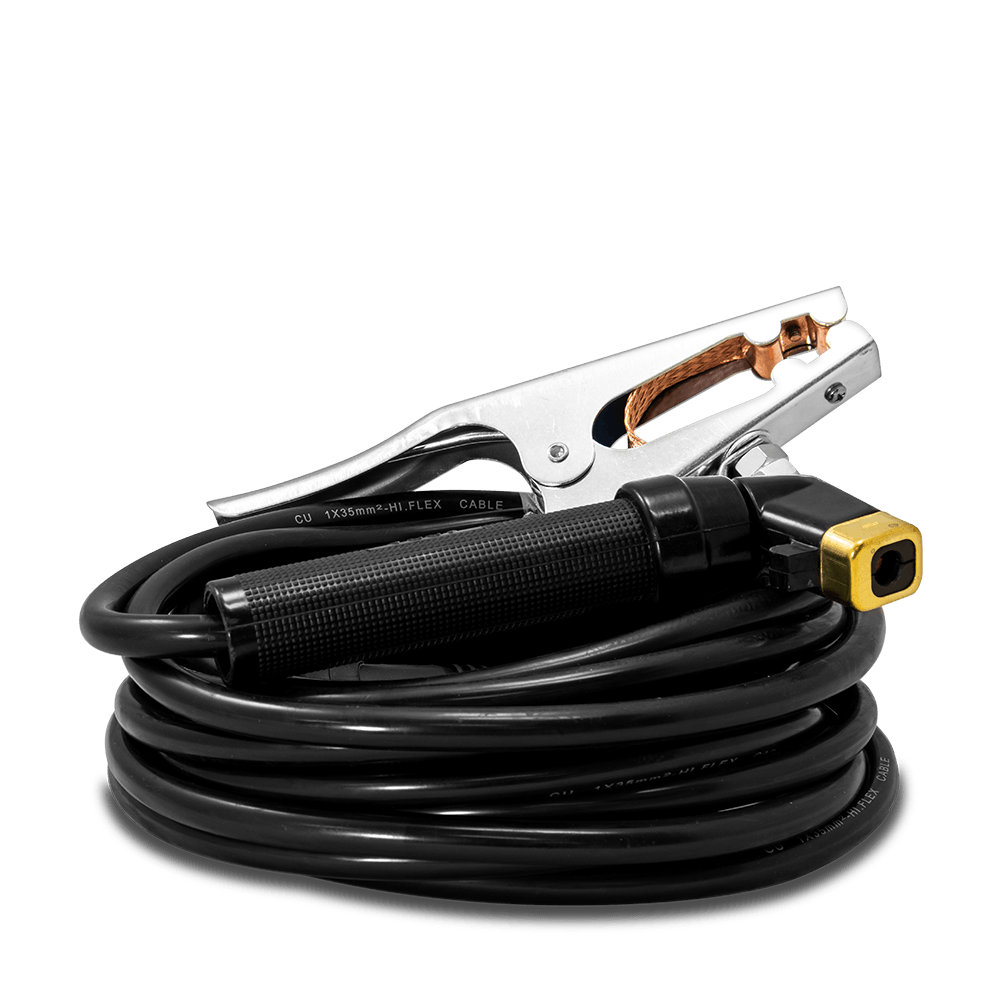

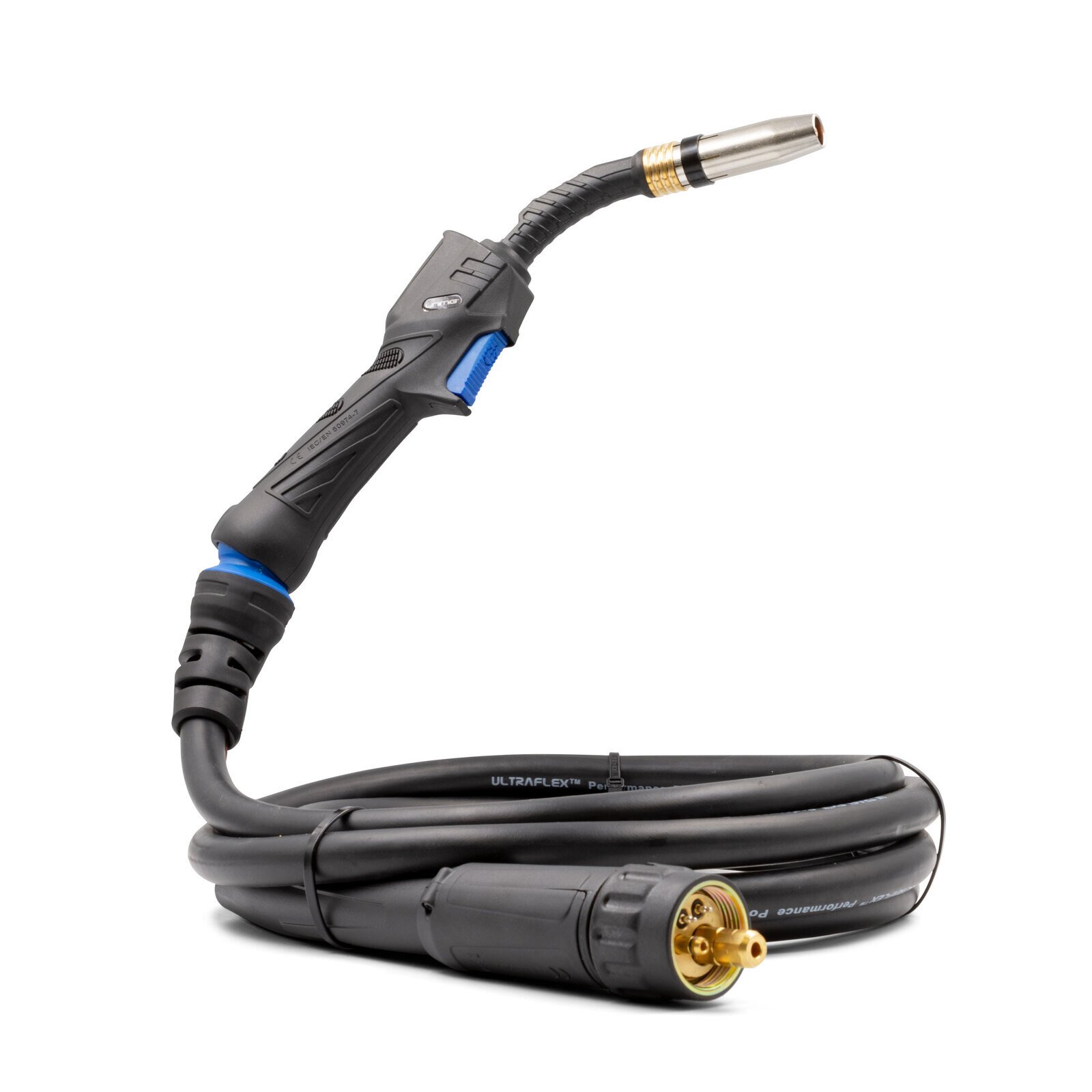

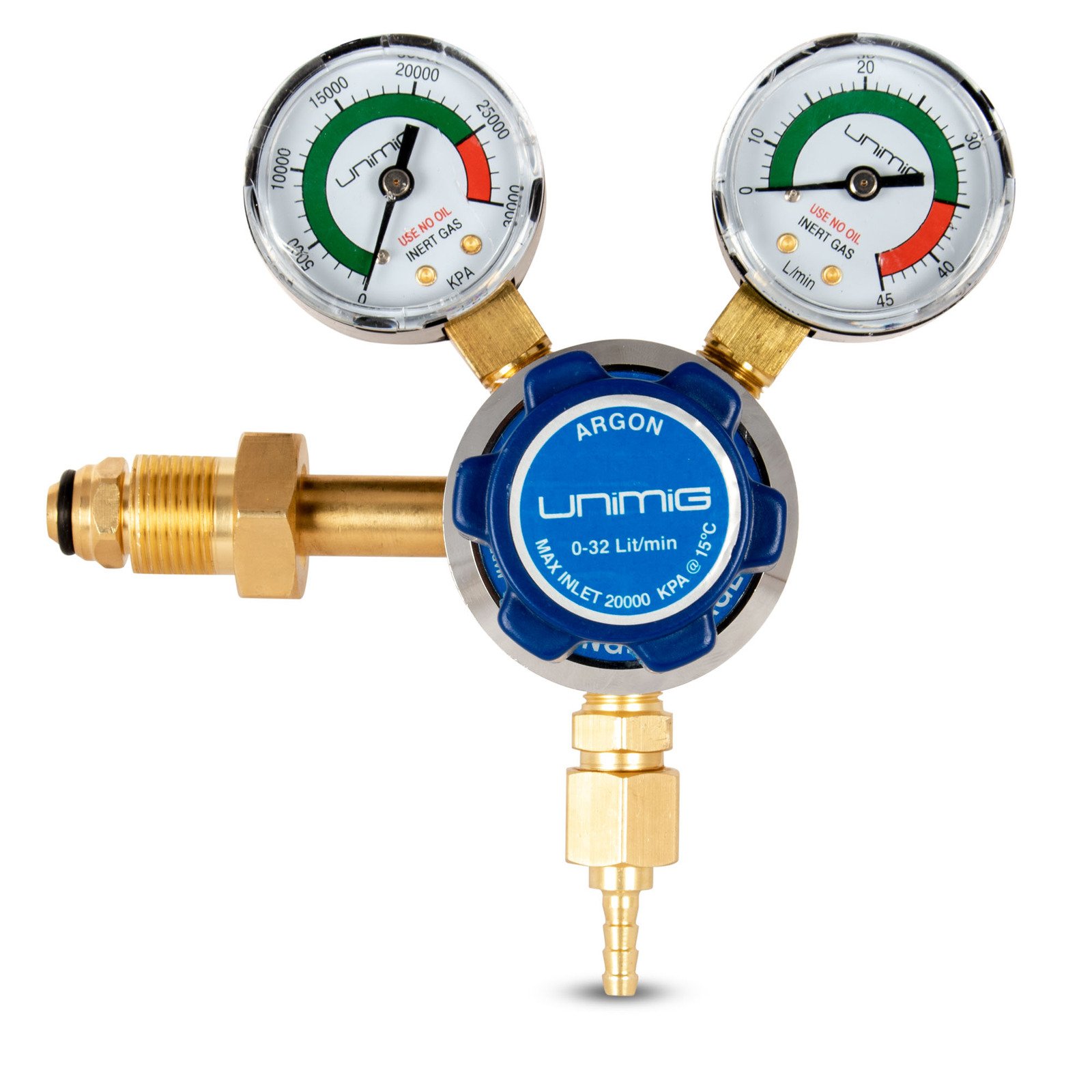

Comes complete with 4m MIG torch, electrode holder, earth clamp, argon regulator, gas hose, operating manual, and three drive rollers (0.8-0.9mm V/F, 1.0-1.2mm U).
Why Choose UNIMIG?
Designed to AS/NZ60974.1 standards, the Razor 250 offers unmatched versatility in its class. Its tolerance to variable power supplies and IP23S protection make it suitable for both indoor and outdoor use.
FAQ
Q: What power supply is required?
A: 240V single phase with 15AMP plug (not included, to be installed based on local requirements).
Q: Can it weld aluminium?
A: Yes, with optional spool gun or push pull gun.
Q: Is gas included?
A: No, the package includes a regulator and hose; gas must be purchased separately.
Ready to elevate your welding projects? Contact us today for technical specifications, bulk pricing, or shipping details. Our team of experts is standing by to assist!
