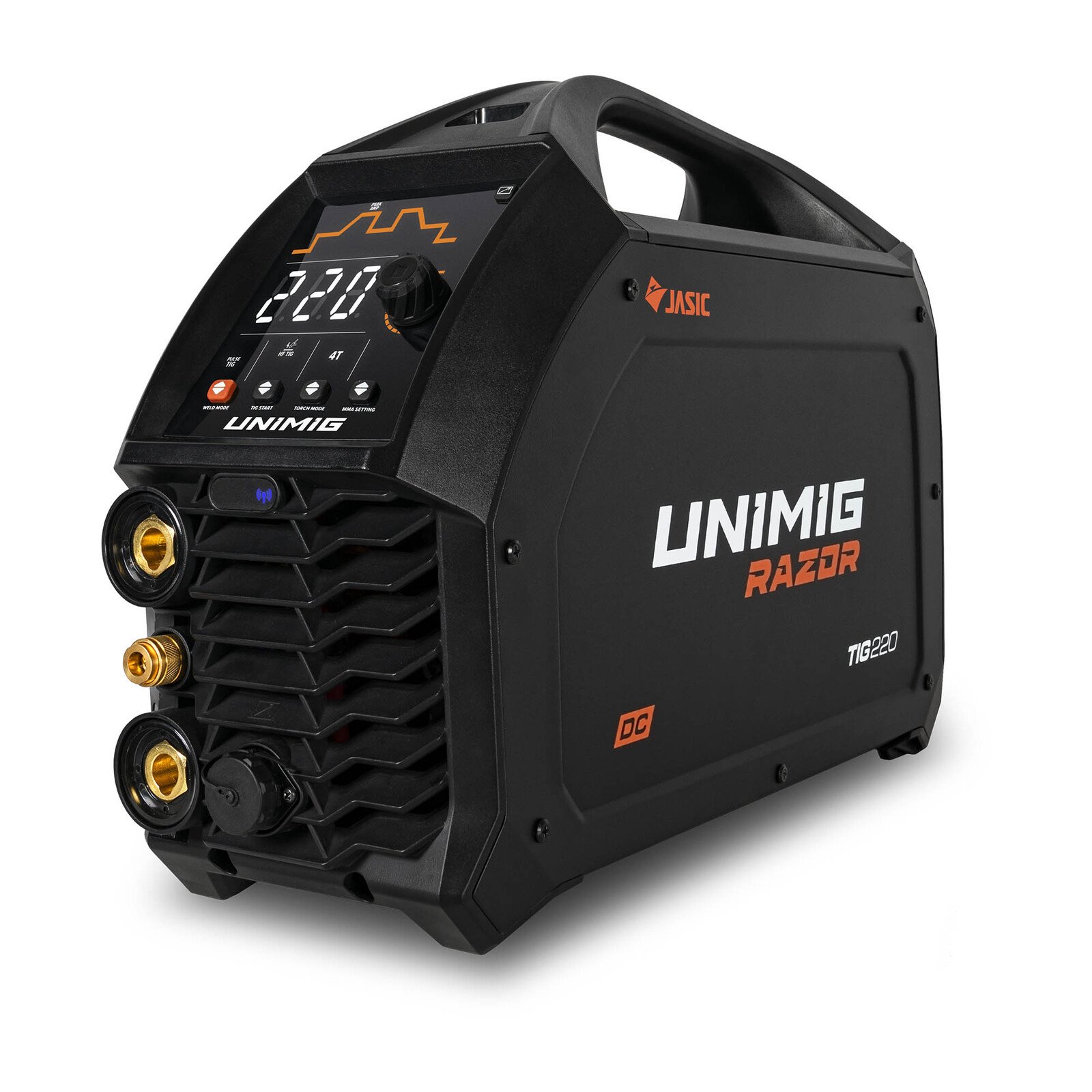

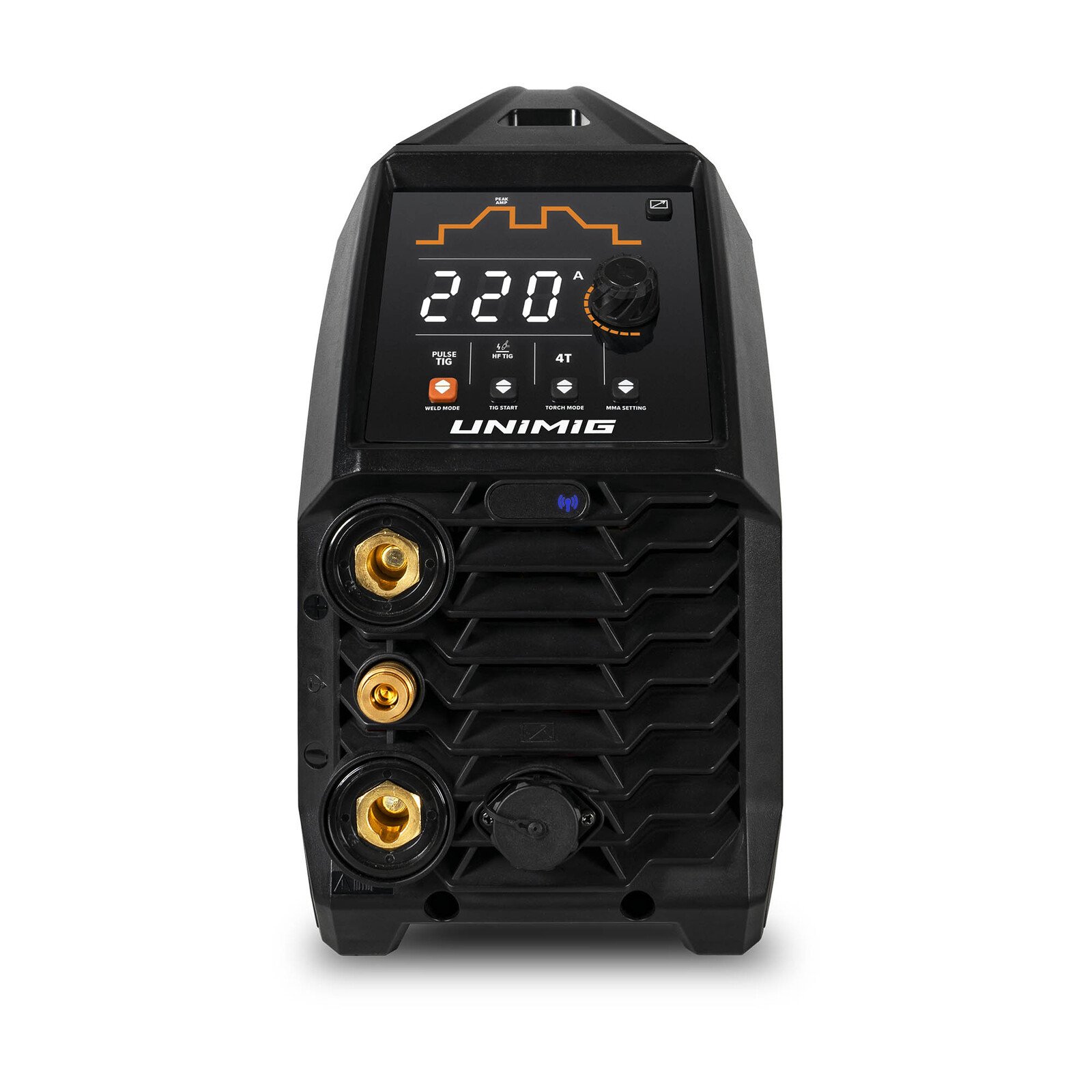

UNIMIG Razor U12003K 220A Pulse DC TIG Welder
$1,615.00
Product Introduction
A professional-grade DC TIG welder with pulse functions, PFC for 10A domestic plug use, HD backlit interface, and 5-year warranty. Suitable for TIG welding mild steel, stainless steel, copper, etc., and MMA welding mild steel, stainless steel, cast iron.
Key Specifications
| Rated Output | 5-220A |
| Input Voltage | 240V Single Phase |
| TIG Thickness Range | 1-8mm |
| Stick Thickness Range | 2-10mm |
| Weight | 8.9kg |
UNIMIG Razor Digital Pulse DC 220 Amp Inverter TIG Welder U12003K – Professional-Grade Welding Performance
Core Specifications
| Part Number | U12003K |
| Input Voltage | 240V Single Phase (10A domestic plug) |
| Rated Output Current | 5-220A (TIG), 20-160A (MMA) |
| Duty Cycle (TIG @ 40¡ãC) | 20%@220A / 60%@127A / 100%@98A |
| Welding Thickness Range | 1-8mm (TIG), 2-10mm (MMA) |
| Function Types | DC HF TIG / DC Pulse TIG / Advanced MMA |
| Key Features | HD Backlit Interface, PFC Technology, Smart Fan |
| Suitable Materials | Mild Steel, Stainless Steel, Copper, Titanium (TIG); Cast Iron (MMA) |
| Dimensions | 310¡Á150¡Á460mm |
| Warranty | 5-Year Manufacturer Guarantee |
Why Choose UNIMIG Razor U12003K?

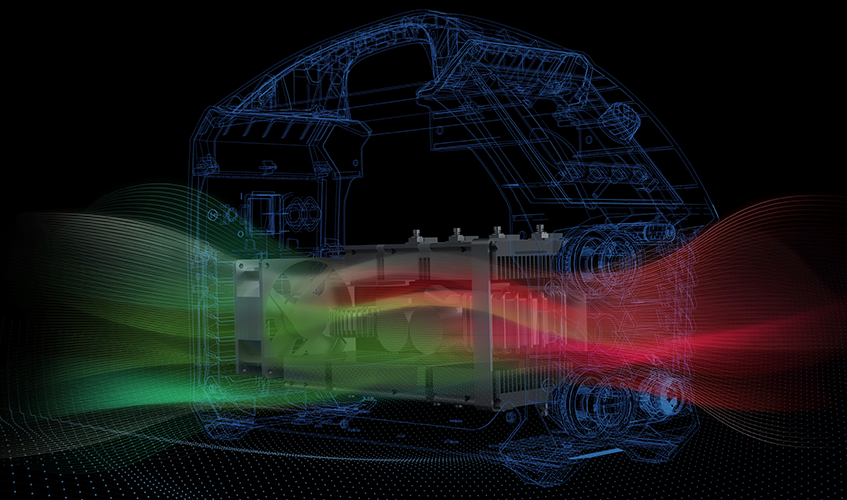

Experience industrial-grade precision with this compact inverter welder. The Power Factor Correction (PFC) ensures maximum electrical efficiency, while the 10A plug compatibility lets you operate from any domestic outlet. The digital pulse TIG function delivers superior bead control for stainless steel and titanium, while advanced MMA mode simplifies cast iron welding.
Applications & Performance

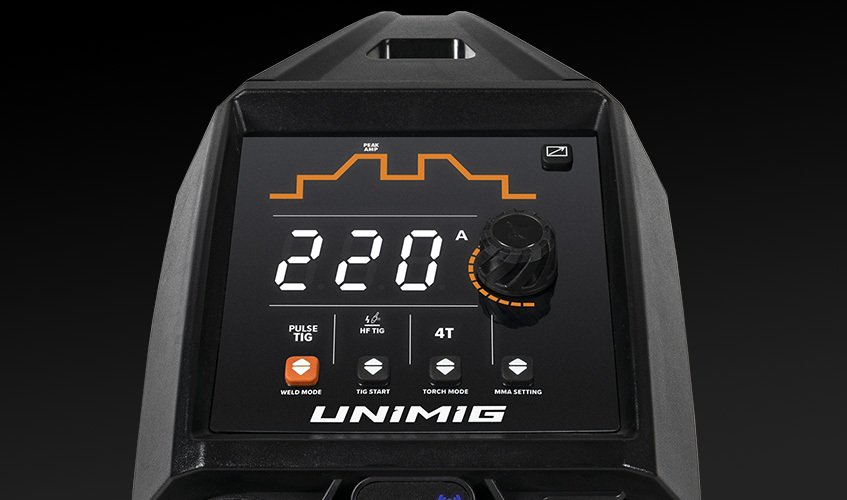

Ideal for professional fabricators and serious DIYers, this machine handles 1-8mm TIG welds on mild steel, stainless, copper, and titanium. MMA capabilities extend to 2-10mm thickness with 2.5-4.0mm electrodes. The HD backlit interface and foot control readiness (accessory sold separately) provide unmatched versatility.
Quality & Reliability
Built to AS/NZ60974-1 standards with IP23S protection and H-class insulation, this welder withstands tough workshop conditions. The 5-year warranty underscores UNIMIG’s confidence in its durability and performance.
FAQs
- Generator Compatibility: Requires minimum 7.0kVA generator
- Electrode Compatibility: 2.5-4.0mm for MMA welding

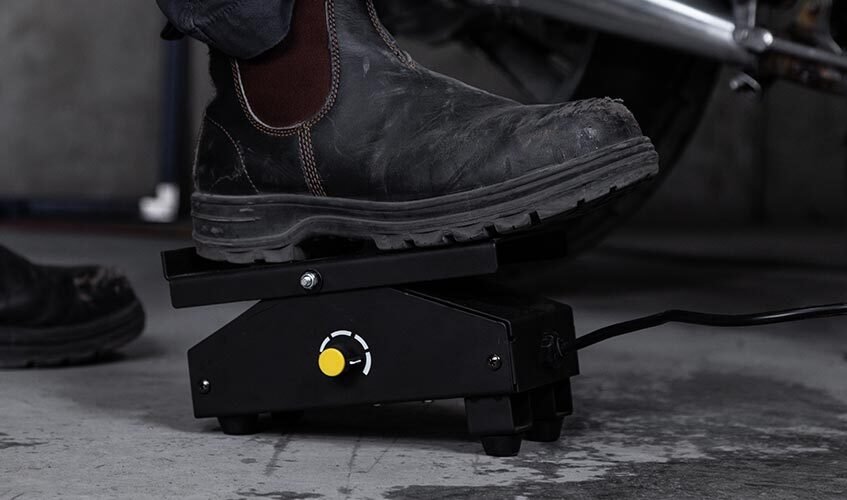

- Foot Pedal: Compatible with UNIMIG foot control accessories
- Weight: 8.9kg for easy portability
Ready to Elevate Your Welding Projects?
Contact our team today for technical specifications, accessory options, and bulk pricing. Experience the UNIMIG difference in professional welding equipment.
