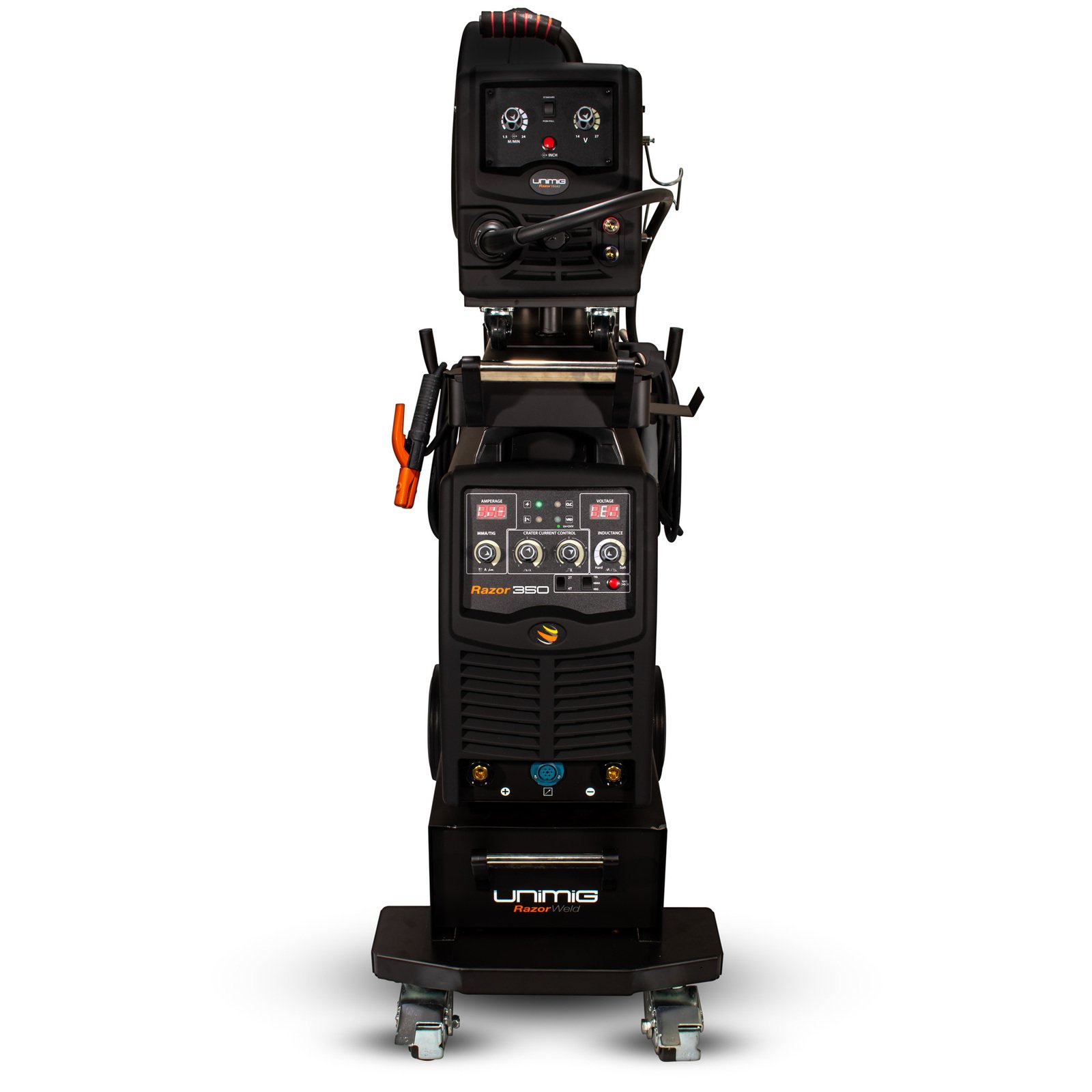

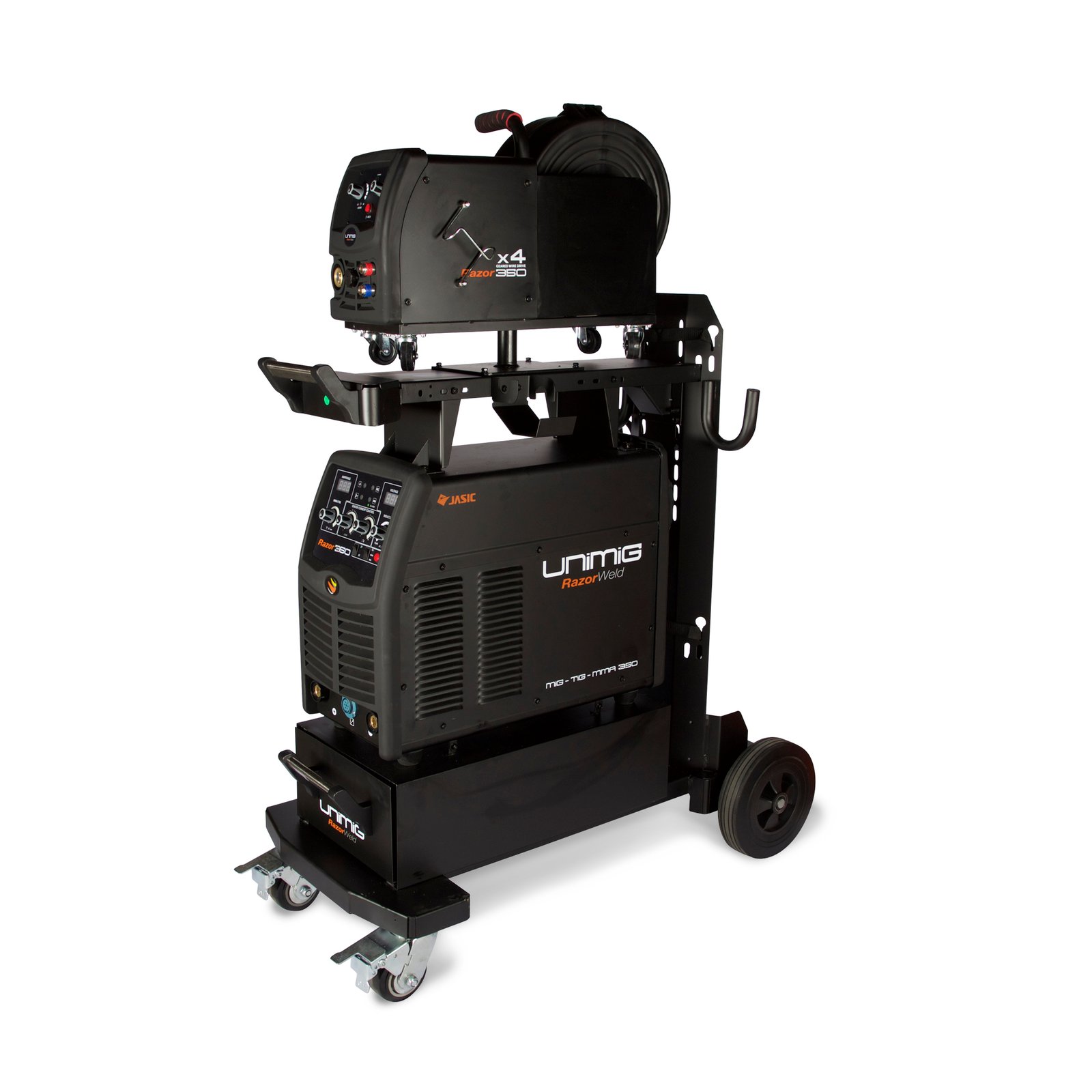

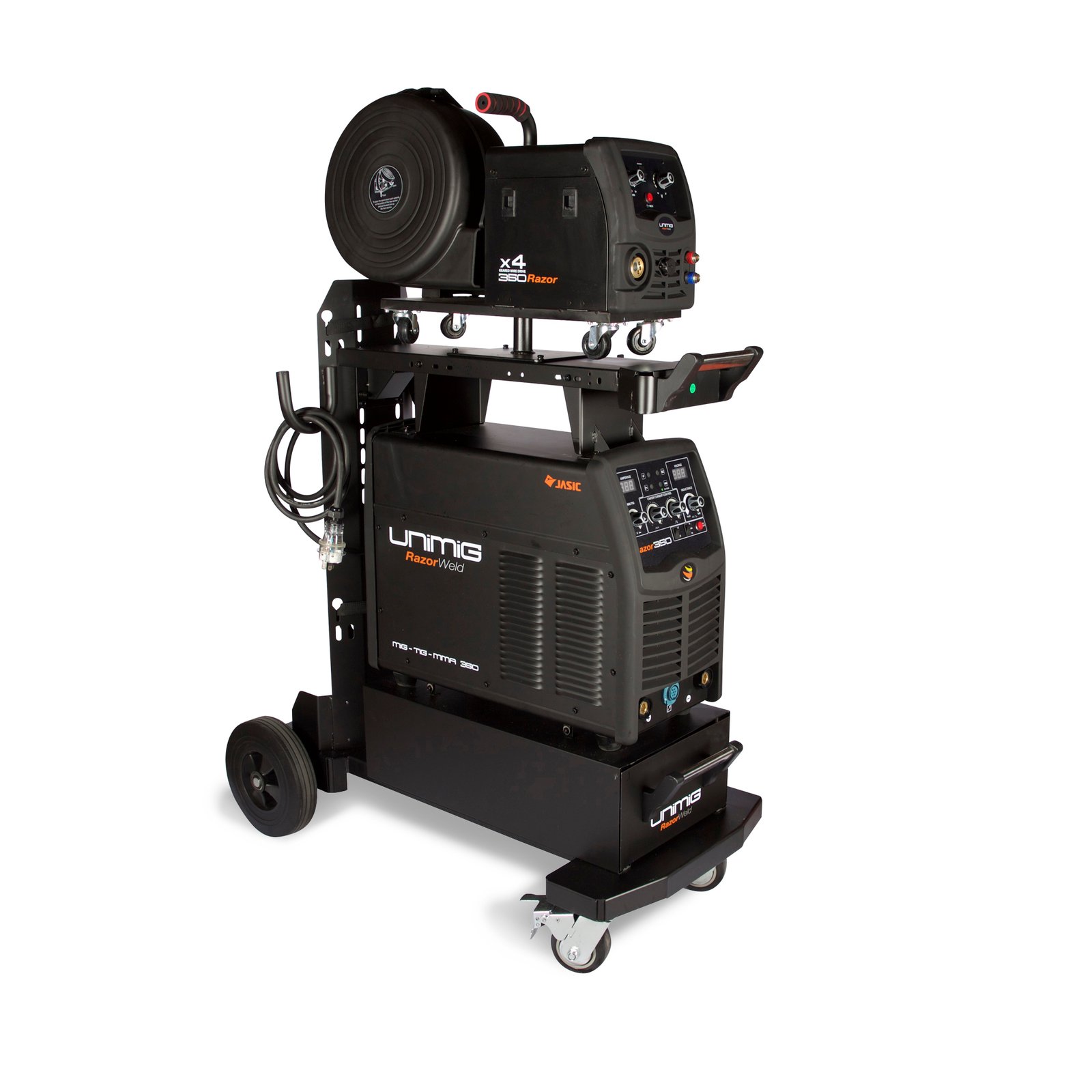

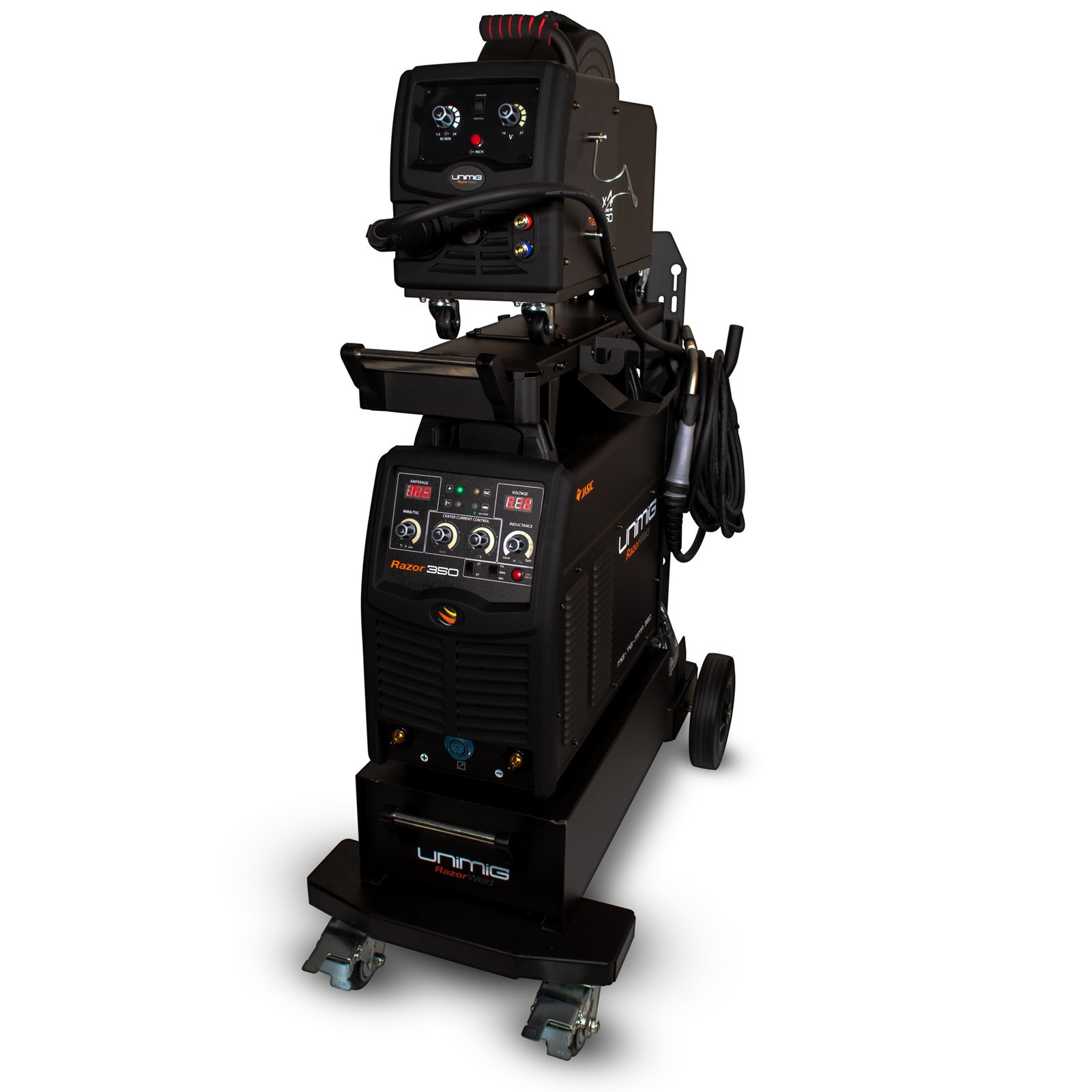

The RAZOR™ 350 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 350 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.

*Please note: Due to the size of this item, the free delivery is to the Australian major cities metropolitan areas.  If you are outside of the metro area, we may contact you for a small additional freight charge*

Key Features:

The machine features a Separate Wire Feeder unit, allowing for 10m wire feeder removal from the power source, ideal for workshops where complete machine relocation is not feasible.
This three-in-one machine allows MIG, TIG, and STICK welding on one machine, supporting gas shielded and gasless MIG wire, eliminating the need for machine swapping.
The machine is equipped with a four-geared roller drive unit, ensuring consistent and smooth wire feed, and enabling the use of longer MIG Torches.
The machine is Spool Gun compatible, allowing for the use of softer core wires like Aluminium MIG wire, eliminating the need to change the torch or drive roller setup.
Push-Pull Guns offer smooth wire speed, particularly for MIG welding Aluminium, due to their longer-distance feeding motor, enhancing flexibility and movement during welding.
This UNIMIG machine is designed for high-quality welds, boasting superior welding technology and unparalleled power in its class.

Machine Specification:

Part Number: KUMJR350SWF
Wire Drive: Four Geared
Thermal Overload Protection: Over Temperature Warning
Primary Input Voltage: 415V Three Phase
Supply Plug: No plug supplied (32 AMP Recommended)
Rated Input Power (kVA): 12.8
Ieff (A): 26.0
Rated Output: 50A/16.5V – 350A/31.5V
No Load Voltage (V): 65
Protection Class: IP21S
Insulation Class: F
Power Factor: 0.93
Minimum Generator (kVA): 20.0
DINSE Connector: 35/50
Standard: AS/NZ60974-1
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Warranty (Years): 3

MIG Specification:

MIG Welding Current Range: 50-350A
MIG Duty Cycle @ 40°C: 40% @ 350A
MIG Wire Size Range: 0.6-1.2mm
MIG Wire Spool Size: 5kg / 15kg
MIG Welding Thickness Range: 1-16mm
Drive Roller Size: 30/22 (x2)

Size and Weight:

Dimensions (mm): 595x280x440mm
Weight (kg): 41kg
SWF Dimensions (mm): 630x235x420mm
SWF Weight (kg): 14kg
SWF Interlocking Cable Length (m): 10m

The UNIMIG Razorweld 350 AMP SWF is packaged ready to weld and includes:

1 x Razor™ 350 SWF MIG/TIG/STICK Welder
1 x Separate Wire Feeder Unit
1 x 10m Interconnecting Cables
1 x 4m SB36 MIG Torch
1 x 4m Twist Lock Electrode Holder
1 x 500 Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 2m Gas Hose Complete with Fittings
1 x Operating Manual

** Product comes with a nationally recognised 36 month warranty through any UNIMIG Dealer **
