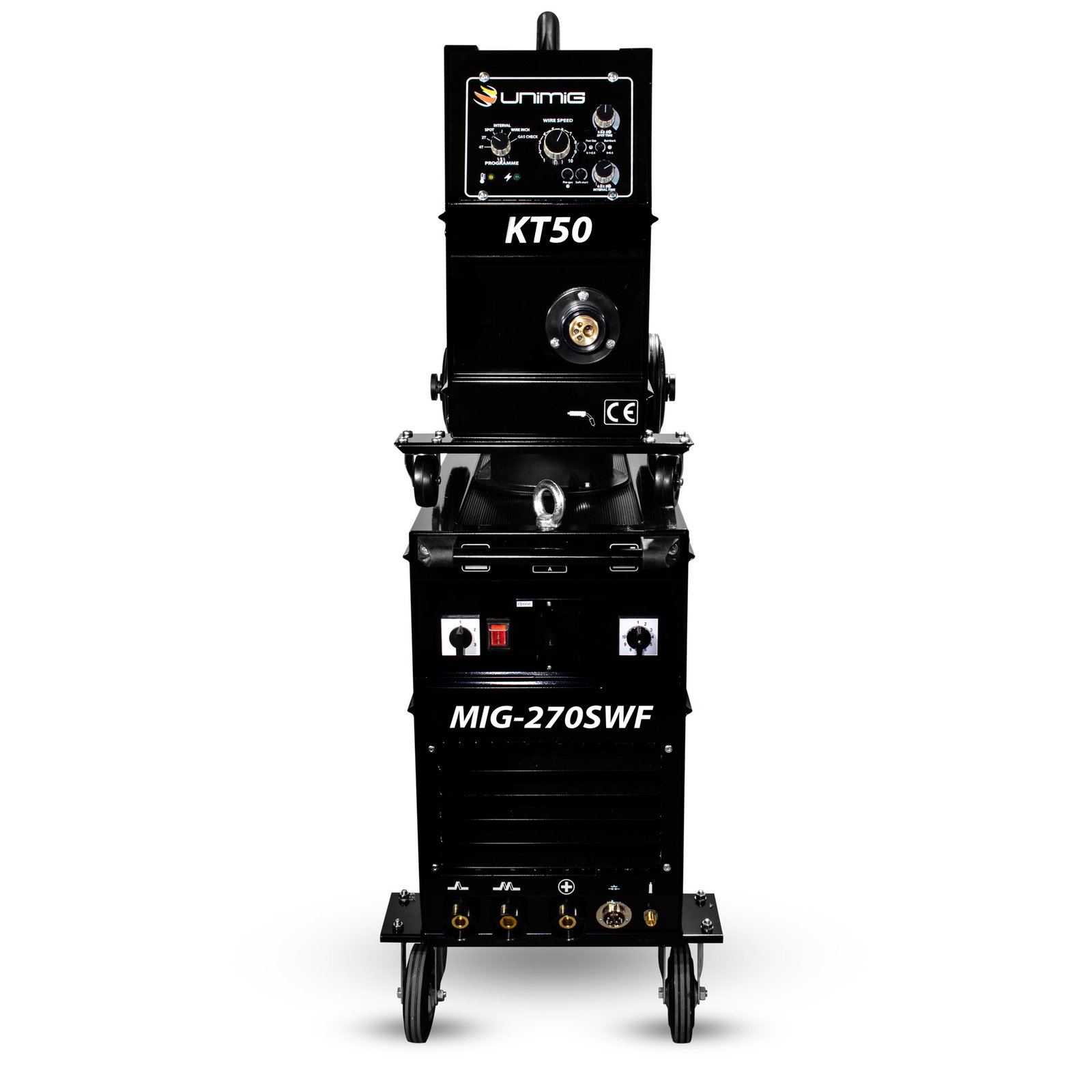

The WORKSHOP 270 SWF MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 21 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.

Go to greater heights with the addition of the KT50 Separate Wire Feeder unit which covers you an extra 10 metres, giving you increased manoeuvrability. It also prevents dust and moisture fouling you wire with its smart enclosed system design meaning no contaminates in your welds.

*Please note: Due to the size of this item, the free delivery is to the Australian major cities metropolitan areas.  If you are outside of the metro area, we may contact you for a small additional freight charge*

Key Features:

The machine features a Separate Wire Feeder unit, allowing for 10m wire feeder removal from the power source, ideal for workshops where complete machine relocation is not feasible.
The Workshop series machines are manufactured with high-quality components, including a copper wound transformer, smoothing choke, and a large 250mm cooling fan with enclosed motor for high duty cycle operation.
The 21 position switching feature enables precise adjustment of welding voltage in small increments, ensuring the correct weld penetration for the operator.
The machine is equipped with a four-geared roller drive unit, ensuring consistent and smooth wire feed, and enabling the use of longer MIG Torches.
Push pull compatible
Spool gun compatible
Please note: For push pull and Spool gun compatibility, modification required by UNIMIG at time of order. This is an extra cost. (approximately $900). This does not include the gun
Spool gun / Push pull gun required is 48v drive

Machine Specification:

Part Number: KUM270SWF
Wire Drive: Four Geared
Thermal Overload Protection: Over Temperature Warning
Primary Input Voltage: 240V Single Phase
Supply Plug: No plug supplied (32 AMP Recommended)
Rated Input Power (kVA): 11.0
Rated Output: 30-250A
Protection Class: IP21
Insulation Class: I
Minimum Generator (kVA): 13.0
DINSE Connector: 35/50
Standard: AS/NZ60974-1
Suitable Material: Mild Steel, Aluminium, Stainless Steel
Warranty (Years): 3

MIG Specification:

MIG Welding Current Range: 30-250A
MIG Duty Cycle @ 40°C: 70% @ 250A
MIG Wire Size Range: 0.6-1.2mm
MIG Wire Spool Size: 5kg/15kg
MIG Welding Thickness Range: 1-16mm
Drive Roller Size: 40/32 (x2)

Size and Weight:

Dimensions (mm): 980 x 660 x 460
Weight (kg): 139
SWF Interlocking Cable Length (m): 10

The UNIMIG Workshop 470 SWF is packaged ready to weld and includes:

1 x Workshop 270 SWF MIG Welder
1 x KT50 SWF Unit
1 x 10m Interconnecting Cables
1 x 4m SB24 MIG Torch
1 x 300 Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 2m Gas Hose Complete with Fittings
1 x Operating Manual

** Product comes with a nationally recognised 36 month warranty through any UNIMIG Dealer **
