UWELD TIG WELDING TORCH – 17 Series with Valve

150A DC, 105A AC @ 35% Duty Cycle

Specifications:

Suits Any welders that is lift / Scratch start TIG compatible.
Standard 35-50 Dinse style connection. (See pics)
Small light weight torch for low amp TIG applications.
4 metres long

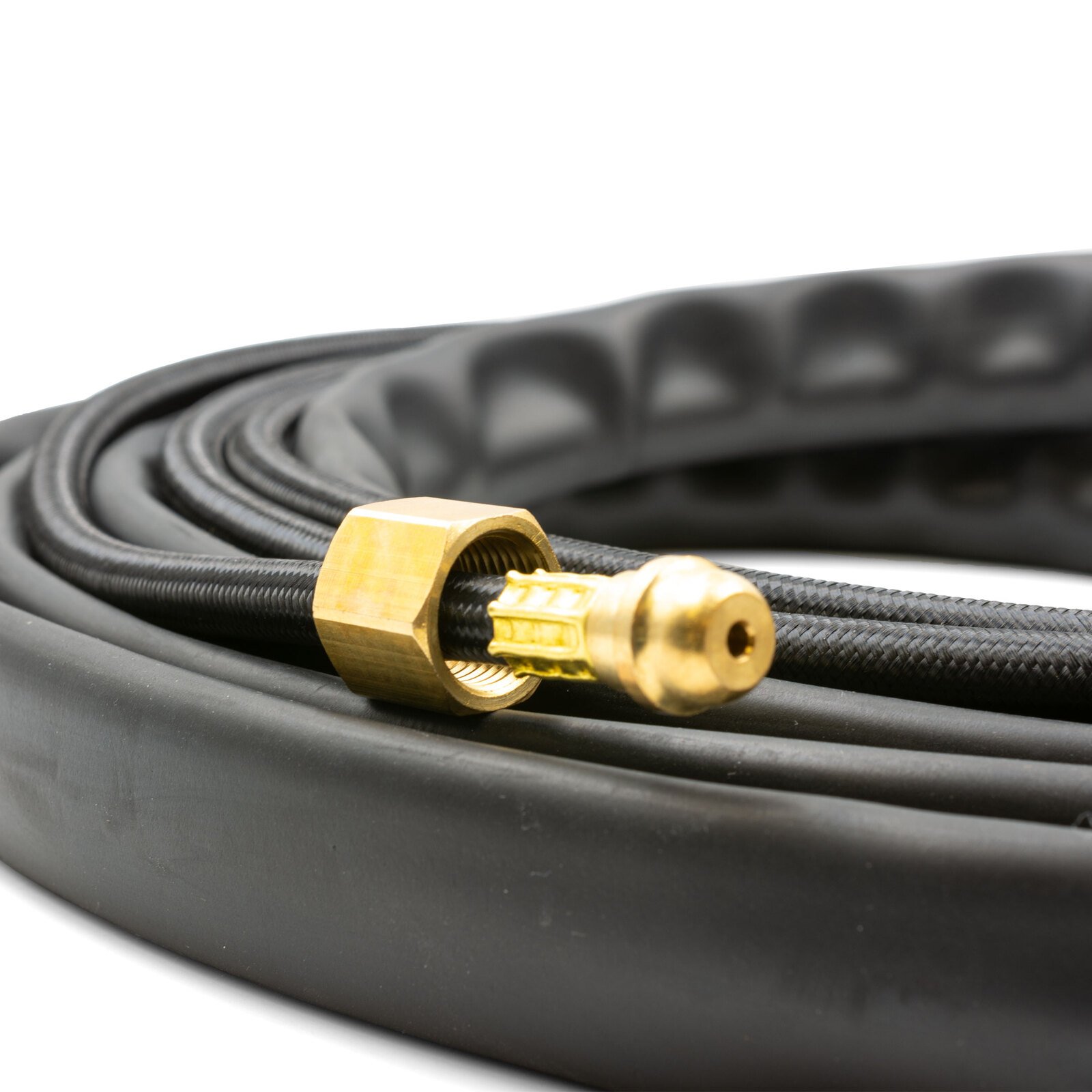

Gas Regulator connection: 5/8 UNF
Will suit the UNIMIG Viper 182, Razor 175 and any other machine with a scratch start or lift arc TIG function.
Suits Kemppi Minarc EVO 180 Caddy 61002180AU

Features

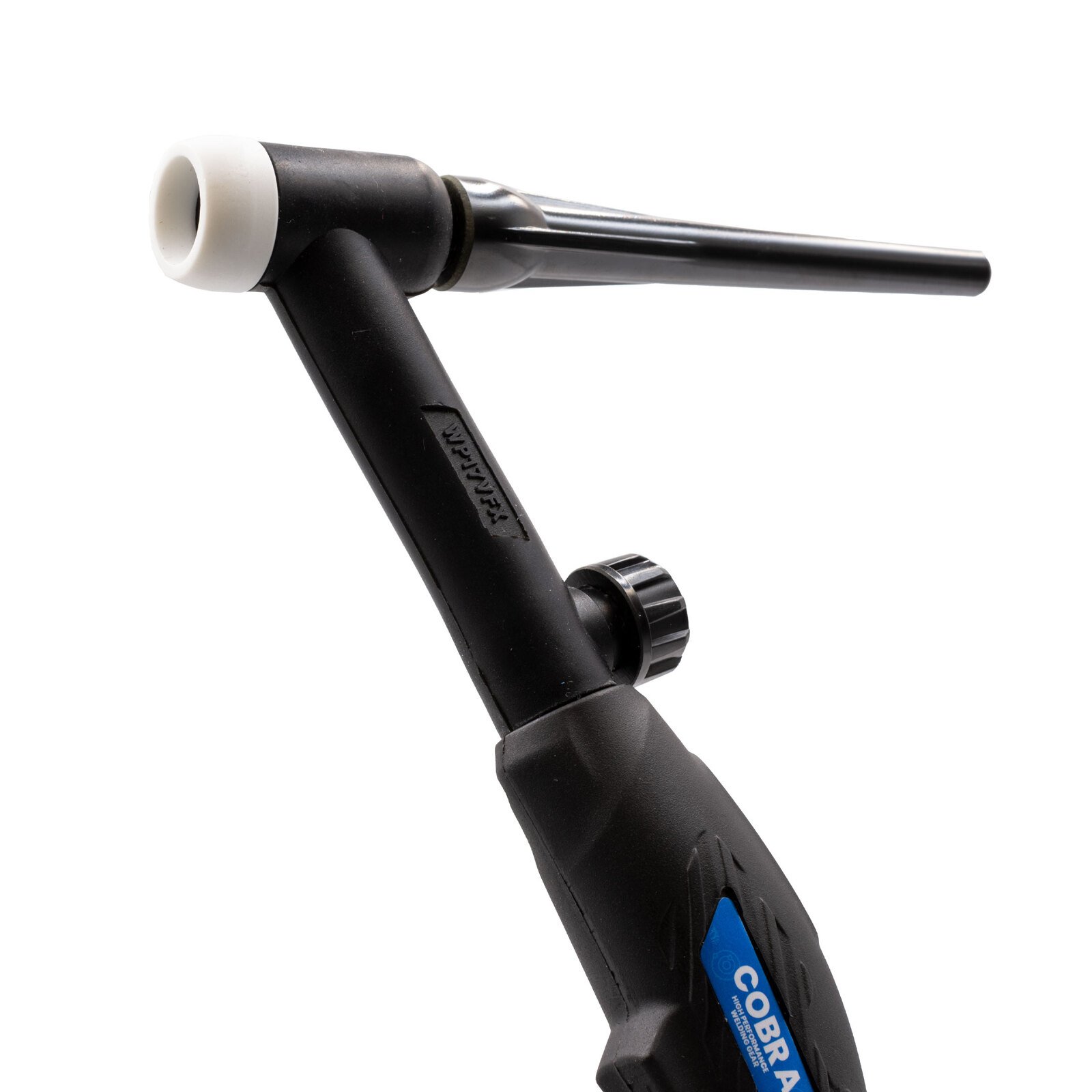

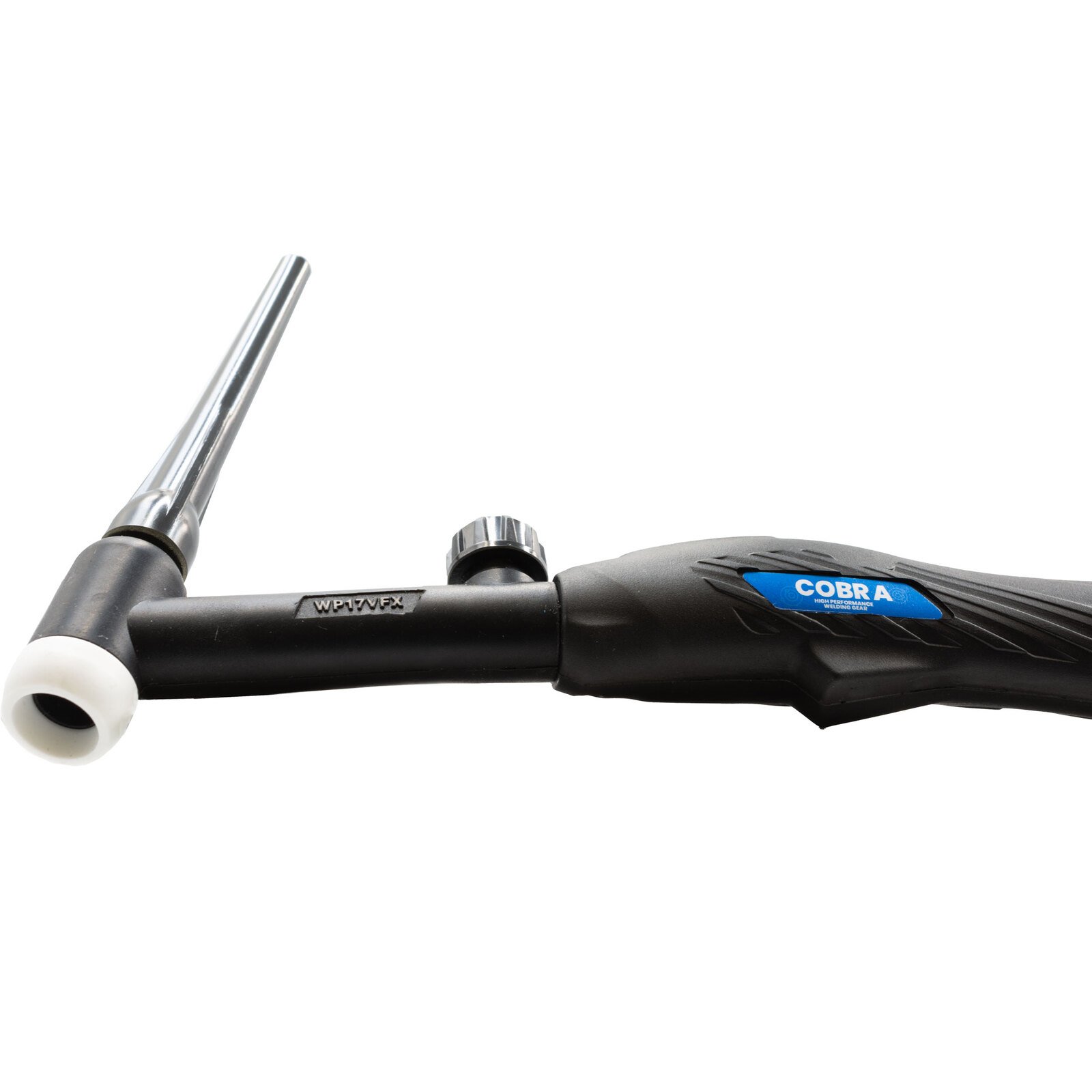

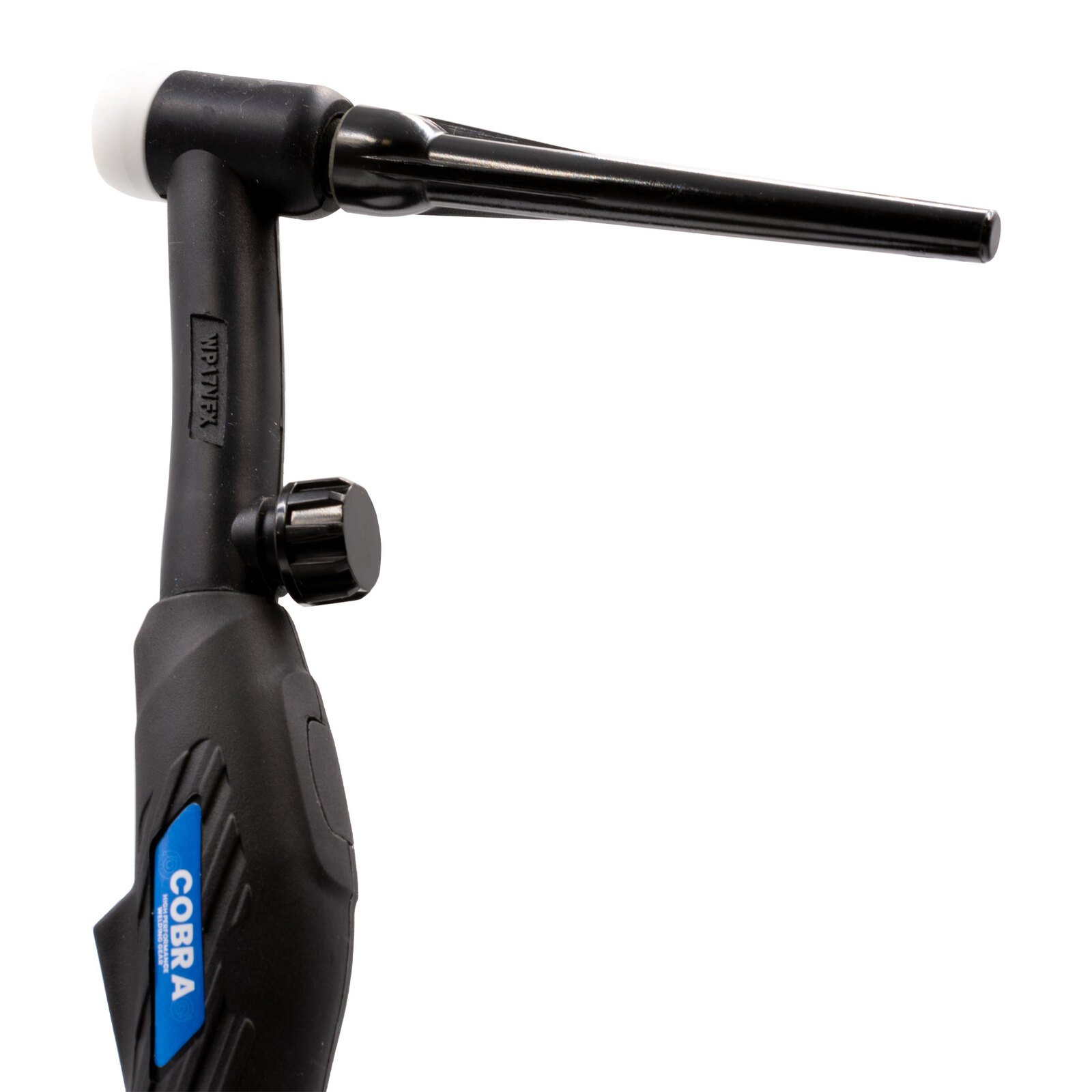

Torch Bodies – High temperature resistant silicon rubber provides a light weight and durable cover.

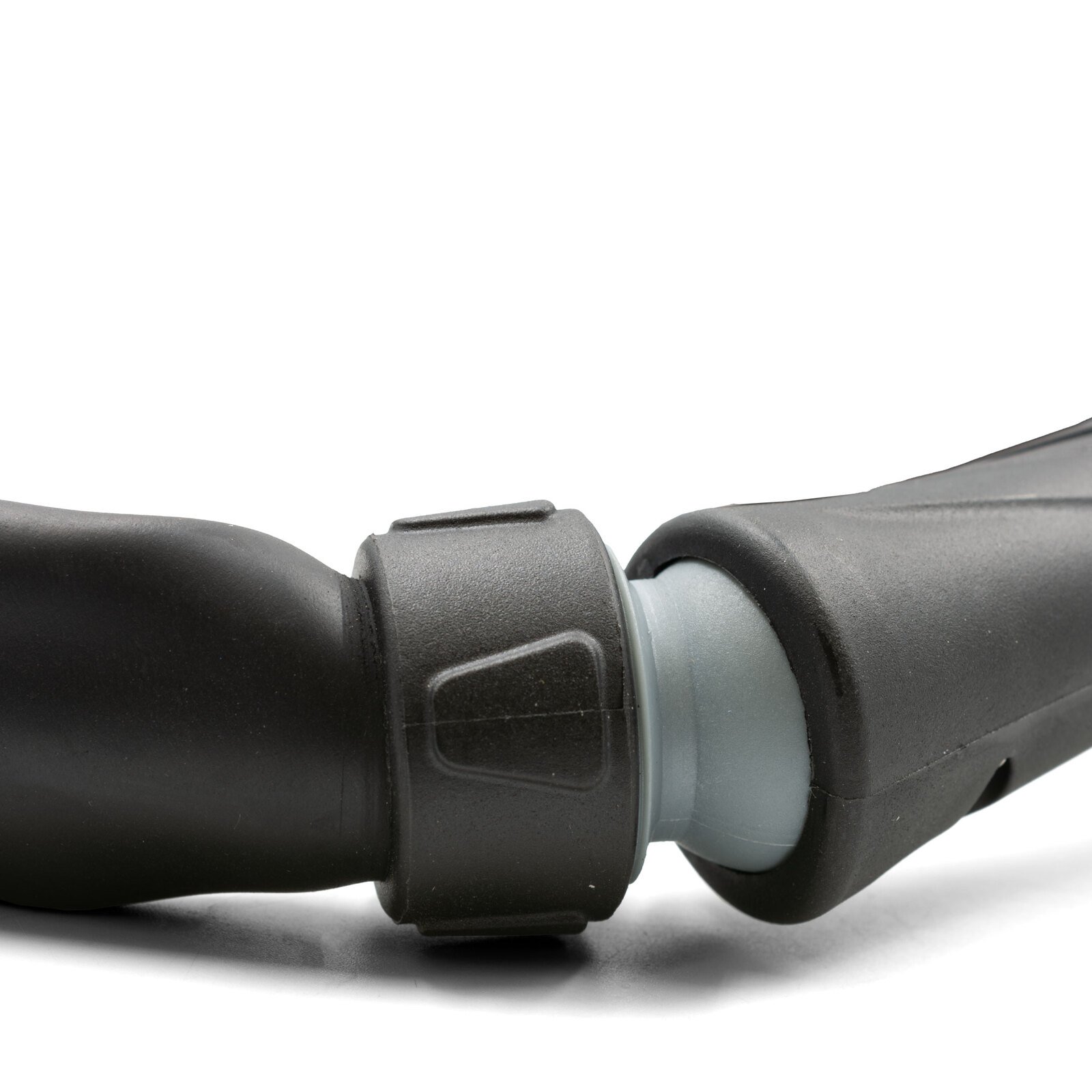

Knuckle Joint – Facilitates easy and accurate movements in torch position
Handles – Ergonomically superior tig handles feature soft grips, knuckle joints and and a button cover for optional extra tig switch button
UNIMIG Part # 17V-4MCP50-2 / UW17V-4MCP50-extend

Consumables:

Insulator:

18CG (standard)
18GC01 (gas lens)

Collet Bodies:

10N30 (1.0mm standard)
10N31 (1.0mm standard)
10N32 (1.0mm standard)
10N33 (1.0mm standard)
45V24 (1.0mm gas lens)
45V25 (1.6mm gas lens)
45V26 (2.4mm gas lens)
45V27 (3.2mm gas lens)

Ceramic Cups:

10N50 (6mm Bore #4 standard)
10N49 (8mm Bore #5 standard)
10N48 (10mm Bore #6 standard)
10N47 (11mm Bore #7 standard)
10N46 (13mm Bore #8 standard)
10N45 (16mm Bore #10 standard)
10N44 (19mm Bore #12 standard)
54N14 (13mm Bore #8 gas lens)
54N14L (13mm Bore #8 gas lens long)
54N15 (11mm Bore #7 gas lens)
54N15L (11mm Bore #7 gas lens long)
54N16 (10mm Bore #6 gas lens)
54N16L (10mm Bore #6 gas lens long)
54N17 (8mm Bore #5 gas lens)
54N17L (8mm Bore #5 gas lens long)
54N18 (6mm Bore #4 gas lens)
54N18L (6mm Bore #4 gas lens)

Tungstens:

​White Tip:

161z (1.6mm)
241z (2.4mm)
321z (3.2mm)

Red Tip:

162t (1.6mm)
242t (2.4mm
322t (3.2mm)

Blue Tip:

TR0014-16 (1.6mm)
242l (2.4mm)
322l (3.2mm)
