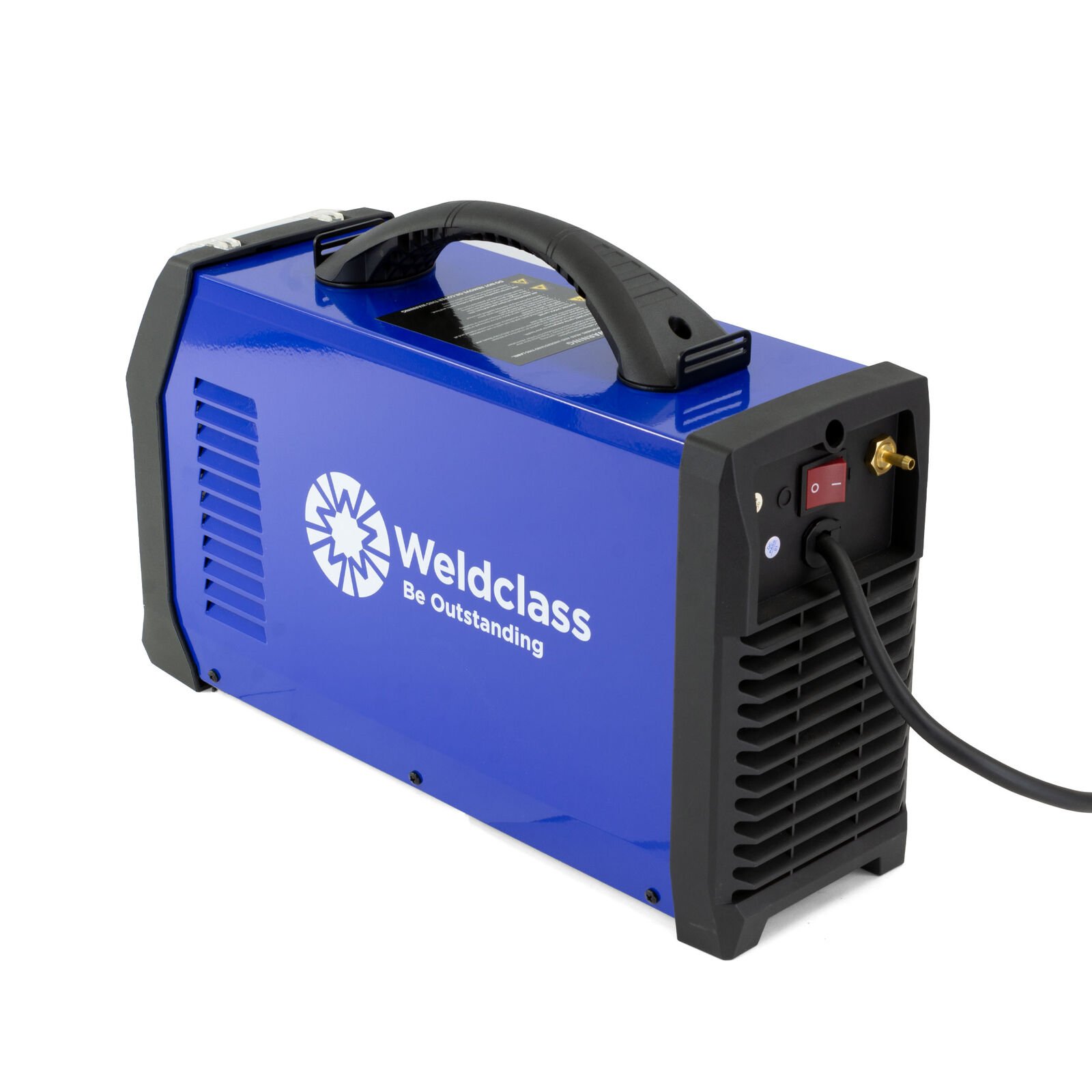

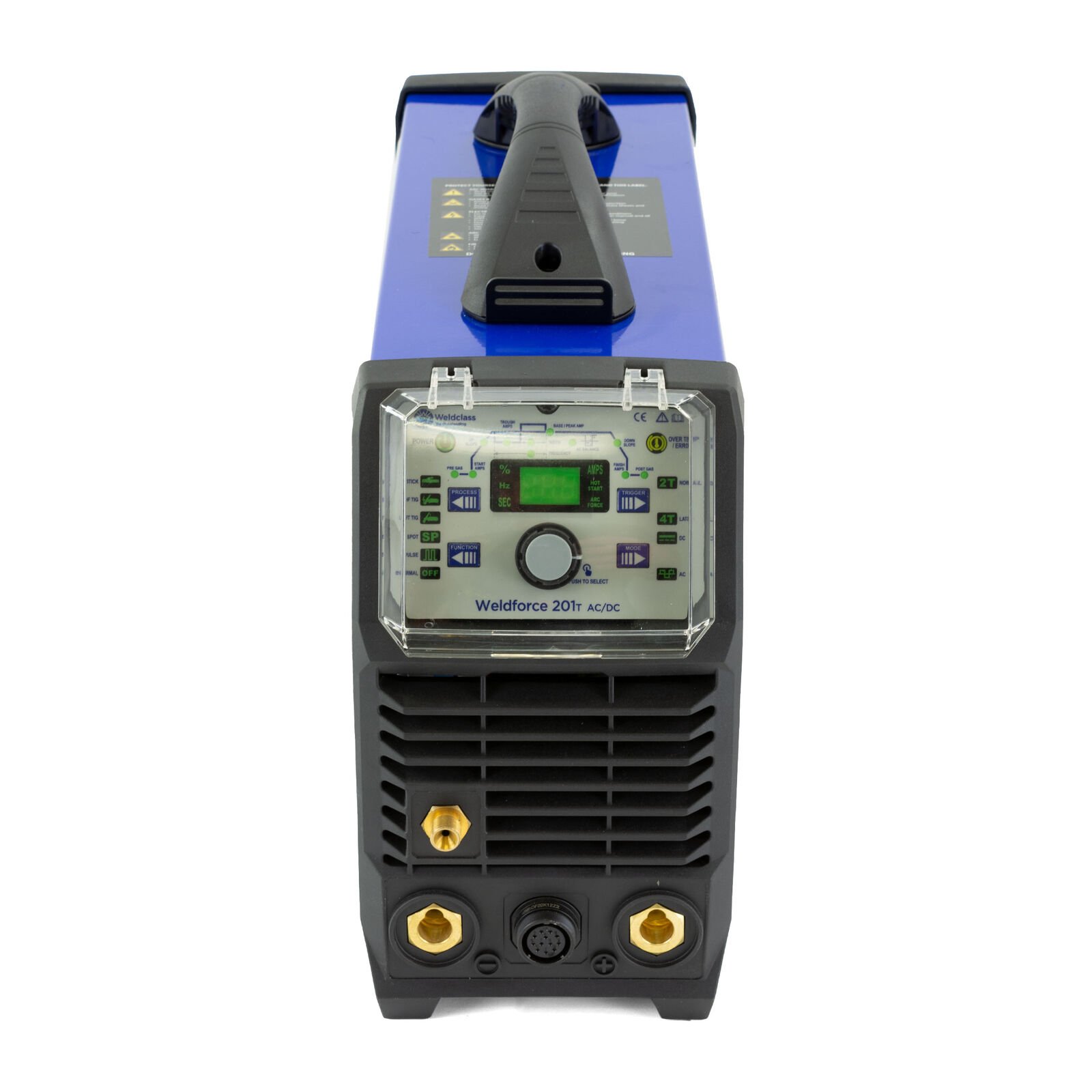

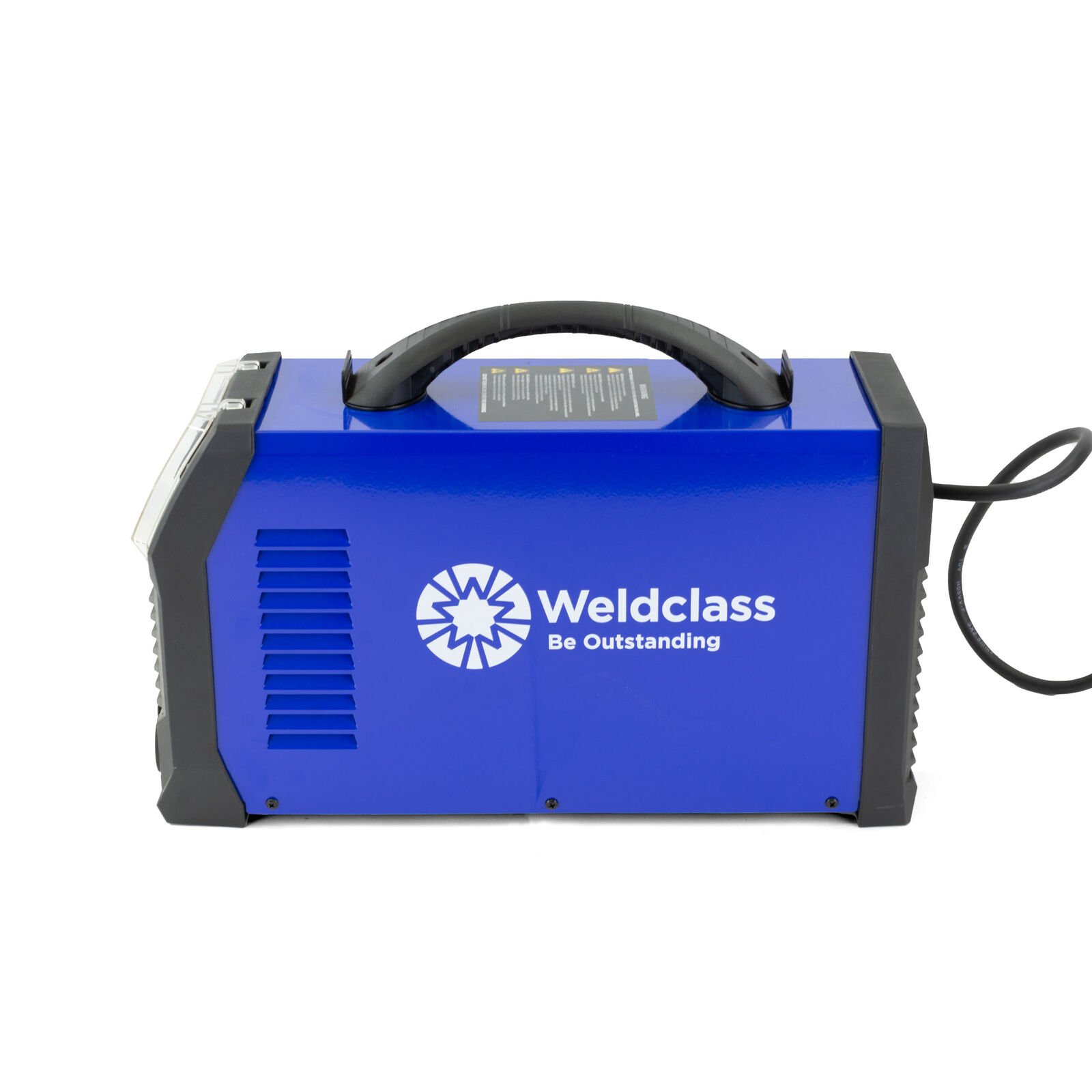

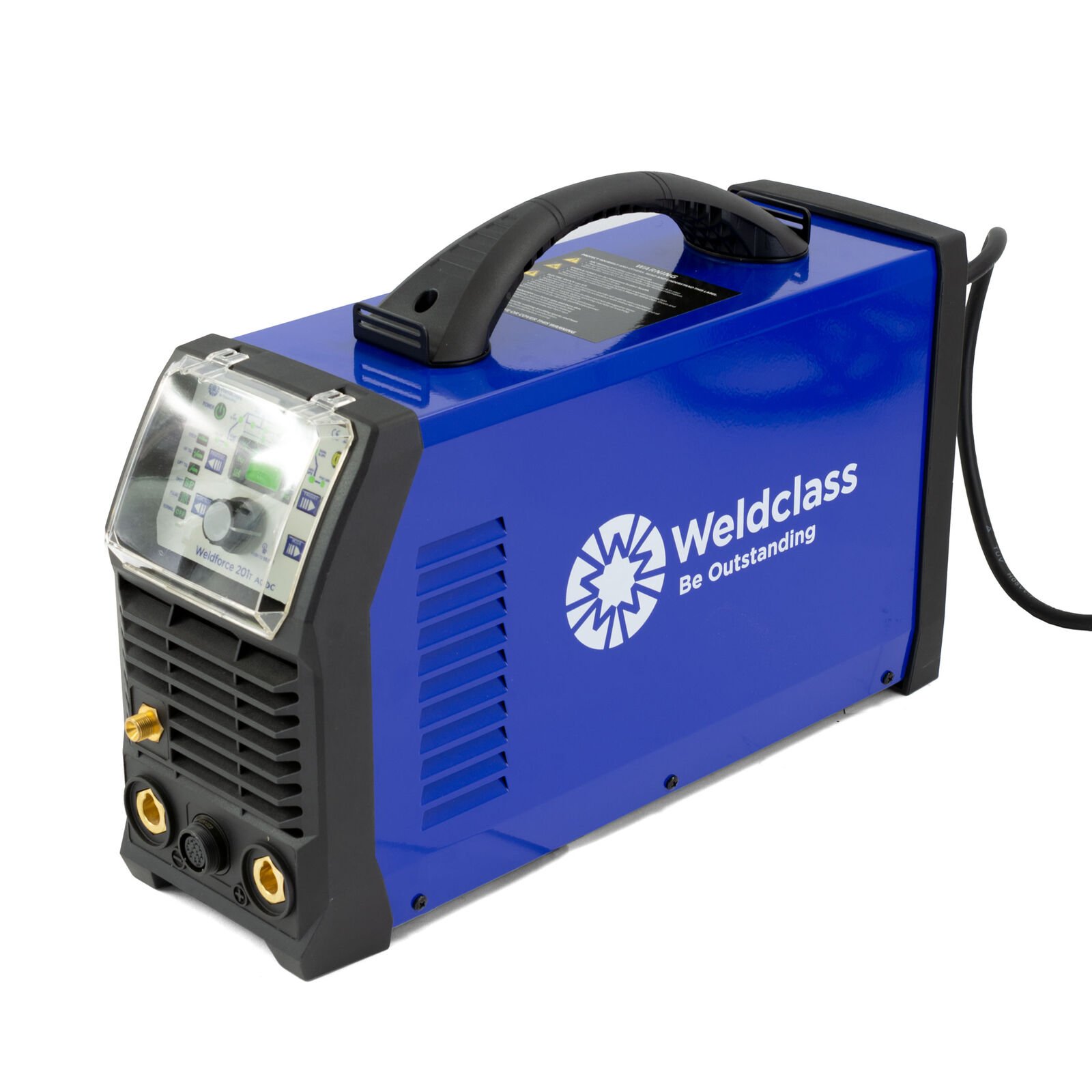

Weldclass FORCE 201T 200A ACDC Pulse TIG Welder WF-06172
$1,700.00
Product Description
Weldclass FORCE 201T AC/DC Pulse TIG Welder delivers 200A max AC output at 30% duty cycle, ideal for Aluminium, Steel, Stainless & more. Lightweight (8kg), compact design with 7-year warranty. Includes 8m #26 TIG torch, gas regulator, leads & accessories.
Specifications
| Max Output | 200A (AC) @ 30% duty cycle |
| Weight | 8kg |
| Functions | TIG (AC/DC), Stick/MMA |
| Warranty | 7-year (with online registration) |
| Input | 240V, 15A plug |
Weldclass 200 Amp ACDC TIG Welder – FORCE 201T AC/DC Pulse – WF-06172
Unleash professional welding precision with the Weldclass FORCE 201T¡ªyour ultimate solution for flawless results on Aluminium, Steel, Stainless, and more. Lightweight at 8kg yet powerful with 200A AC output, this compact welder combines advanced features with rugged reliability, backed by an industry-leading 7-year warranty. Perfect for both workshop and on-site use, it¡¯s time to elevate your welding game.
Core Specifications
| Feature | Details |
|---|---|
| Max Output (AC) | 200A @ 30% duty cycle |
| Weight | 8kg (compact & portable) |
| Power Supply | 240V with 15A plug |
| Welding Modes | TIG (AC/DC), Stick/MMA |
| Ignition | HF or Lift-Arc |
| Pulse Control | 0.2¨C200Hz frequency, adjustable width |
| AC Balance | -5 (25% penetration) to +5 (50% cleaning) |
| Generator Compatibility | Min 8kVA, ideal 10kVA+ |
| IP Rating | IP23 (moisture & particle resistance) |
| Warranty | 7 years (with online registration) |
Key Features & Performance

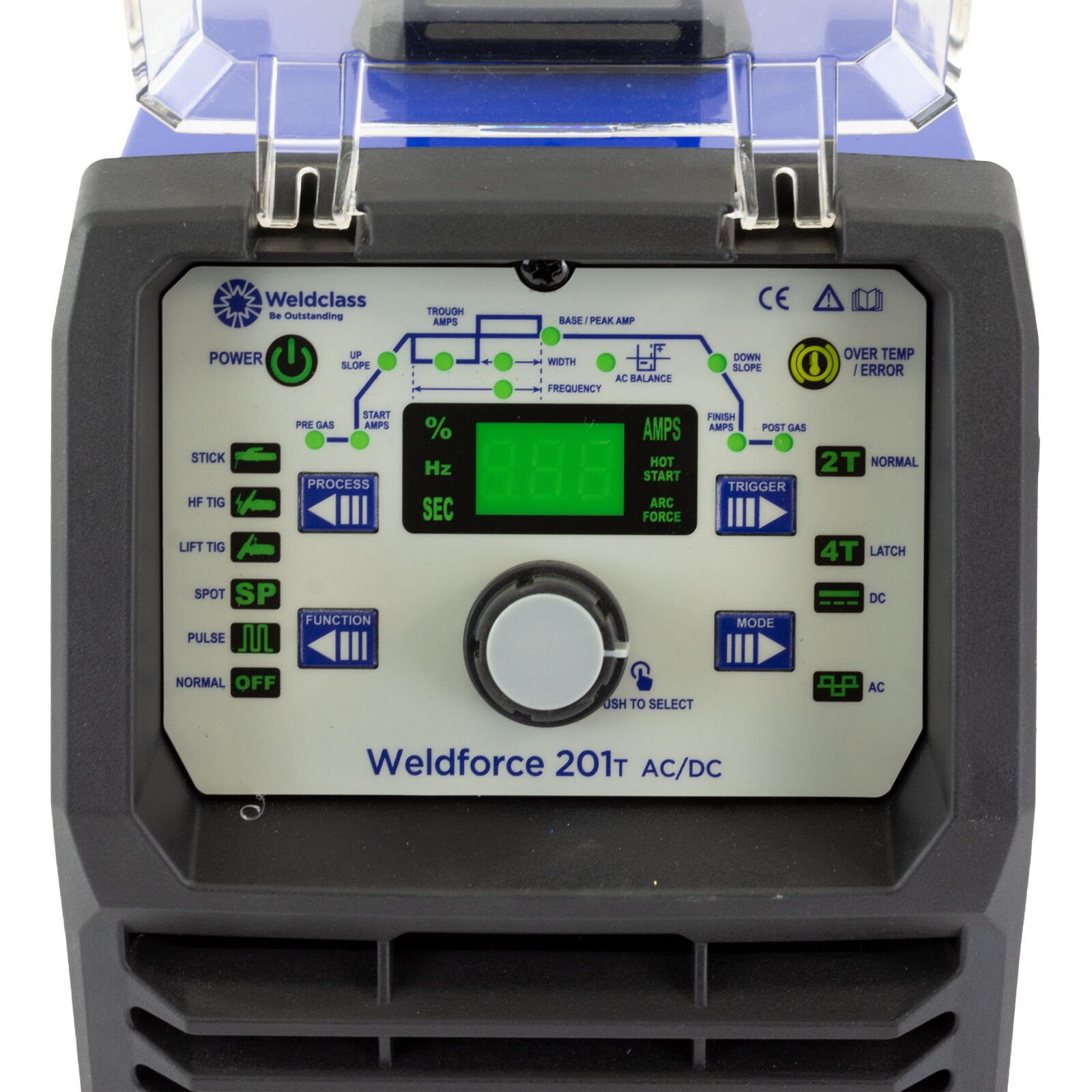

Engineered for precision, the 201T offers pulse welding (0.2¨C200Hz) for controlled heat input, slope up/down (0-10s), and pre/post-gas adjustment (0-10s) to ensure clean, spatter-free welds. The AC square-wave and balance controls deliver superior Aluminium welding, while remote current adjustment on the torch handle enhances operator comfort. With Stick/MMA capability up to 4mm electrodes, it¡¯s versatile for diverse projects.
What¡¯s Included
Comes fully equipped: 8m #26 TIG torch (remote control), 4m earth/stick leads, gas regulator, shoulder strap, cable strap, 3m power lead, and a parts kit with 1.6¨C3.2mm tungstens. Optional foot control (WC-06236) and trolley (WC-06235) available for added convenience.
Quality & Reliability
Stressed-tested to 440V with over-specified components, this welder ensures durability in harsh environments. The IP23 rating protects against moisture and particles, making it generator-compatible for remote jobs. Register online to activate the 7-year warranty¡ªour commitment to long-term performance.
Why Choose the 201T?
- Lightweight Power: 8kg design for easy transport without compromising output.
- Aluminium Expertise: AC balance control for optimal cleaning and penetration.
- Versatility: TIG (AC/DC) and Stick/MMA in one compact unit.
- Extended Warranty: 7 years of coverage¡ªindustry-leading peace of mind.
FAQ
Q: What materials can I weld?
A: Aluminium, Mild Steel, Stainless Steel, and more.
Q: Is a foot control included?
A: No, but it¡¯s available as an optional accessory (WC-06236).
Q: Can I use a generator?
A: Yes, with a minimum 8kVA generator (10kVA+ recommended).
Ready to transform your welding projects? Contact us today for pricing and availability!
